11
English

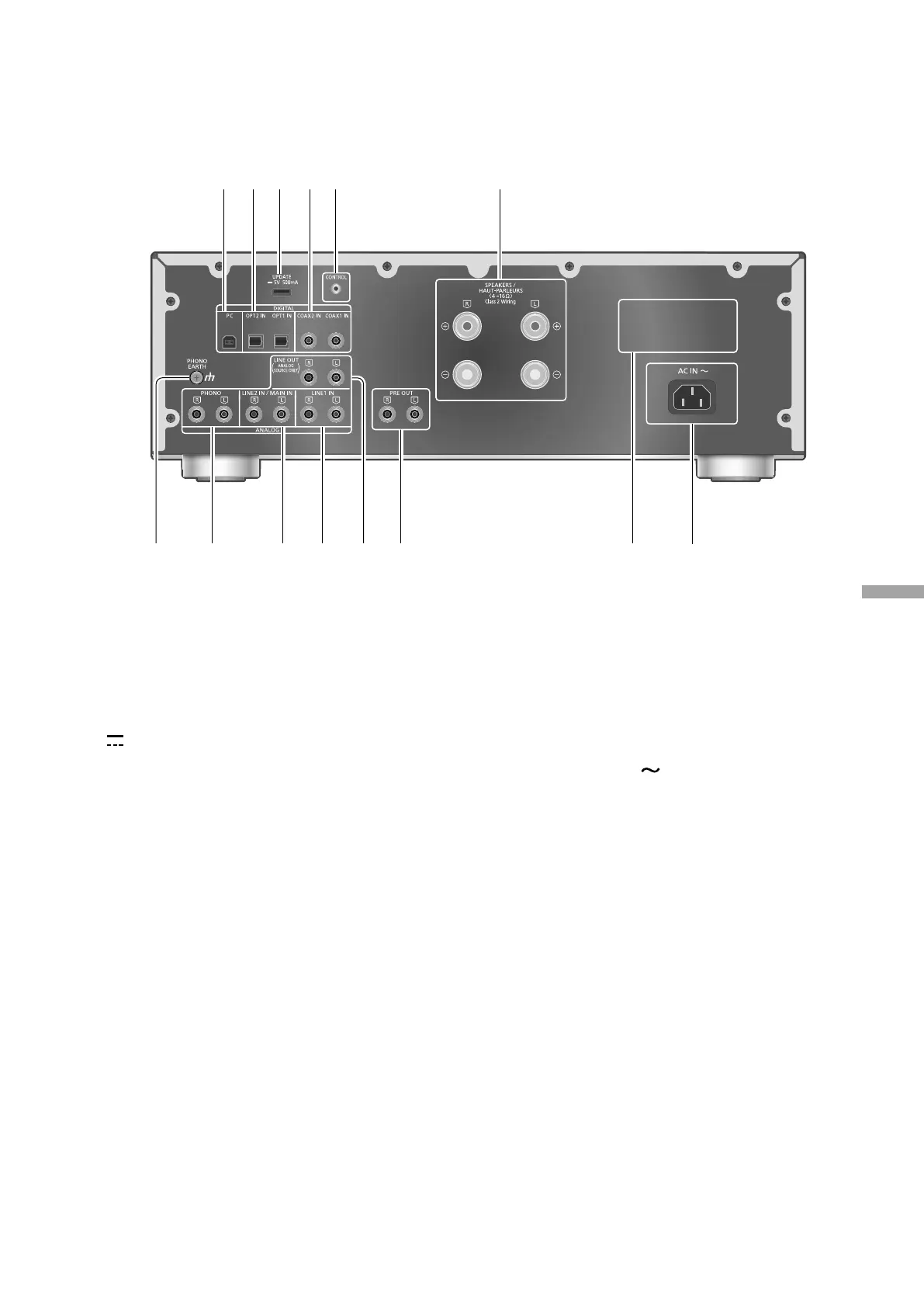

Control reference guide
(11)
10 USB-B terminal
• For connecting to a PC, etc. ( 17)
11 Optical digital input terminal
(OPT1 IN/OPT2 IN) ( 16)
12 UPDATE terminal (USB-A)
(
DC 5 V 500 mA) ( 27)
13 Coaxial digital input terminals
(COAX1 IN/COAX2 IN) ( 16)
14 System terminal (CONTROL) ( 28)
15 Speaker output terminals ( 14)
16 PHONO EARTH terminal ( 18)
• For connecting the ground wire of a
turntable.
17 Analog audio input terminals (PHONO)
( 18)
• MM cartridges are supported.
18 Analog audio input terminals
(LINE2 IN/MAIN IN)
• These input terminals are combined with
LINE2 IN and MAIN IN. Switch the function
according to the connected equipment.
( 19, 20)
19 Analog audio input terminals (LINE1 IN)
( 19)
20 Analog audio output terminals
(LINE OUT) ( 23)
21 Analog audio output terminals (PRE OUT)
( 22)
22 Product identification marking
• The model number is indicated.
23 AC IN terminal (
) ( 15)
