Operations

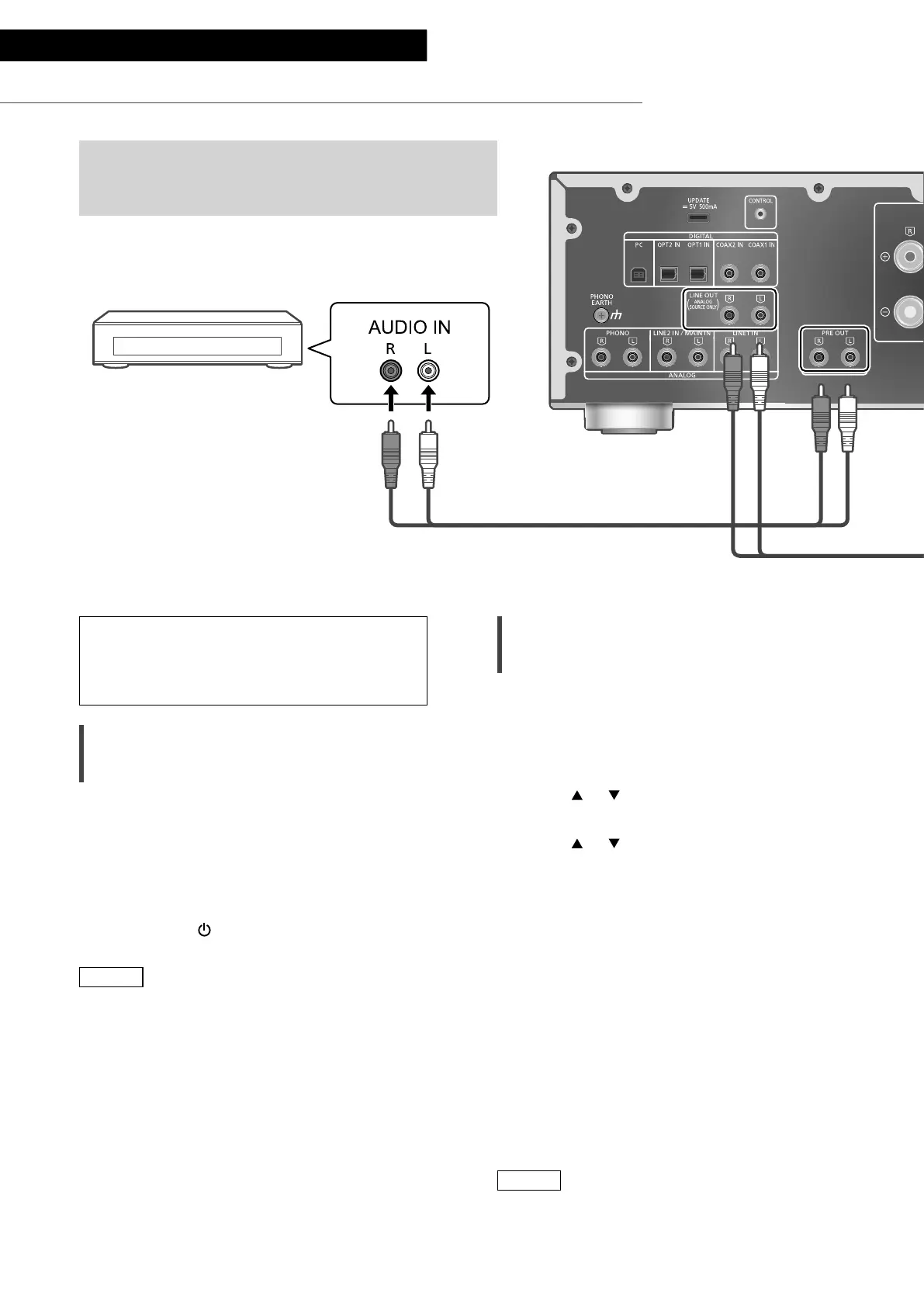

Connecting a power amplifier, subwoofer, etc.
(22)
Analog audio cable (not supplied)
Power amplifier,
Subwoofer, etc.
You can connect the power amplifier, subwoofer, etc.
with analog audio cable (not supplied) to output the
analog audio signals.
Do not input the audio signal from PRE
OUT/LINE OUT terminals to the analog
audio input terminals of this unit. Doing so
may cause malfunction.
Using analog audio cable
1 Disconnect the AC power supply cord.
2 Connect this unit and a power
amplifier, subwoofer, etc.
3 Connect the AC power supply cord to
this unit. ( 15)
4 Press [AMP
] to turn this unit on.
Note
• For details, refer to the operating instructions of
the connected device.
• Sound is not output from PRE OUT terminals
while “MAIN IN” is selected as input source of
this unit.
Setting the audio output (PRE OUT)
You can set the audio output of the speaker
output terminals and PRE OUT terminals.
1 Press [AMP].
2 Press [SETUP].
3 Press [
], [ ] repeatedly to select
“PRE OUT” and then press [OK].
4 Press [
], [ ] to select the output
setting and then press [OK].
• The factory default is “On”.
• Not available when “MAIN IN” is selected as
input source of this unit.
On:
Sound is output from the speaker output
terminals and PRE OUT terminals.
On (Speaker:Off):
Sound is not output from the speaker output
terminals. Sound is output from PRE OUT
terminals.
Off:
Sound is not output from PRE OUT terminals.
Sound is output from the speaker output
terminals.
Note
• It is recommended to set to “On (Speaker:Off)”
(rated output: 1 V) when connecting a power
amplifier.
