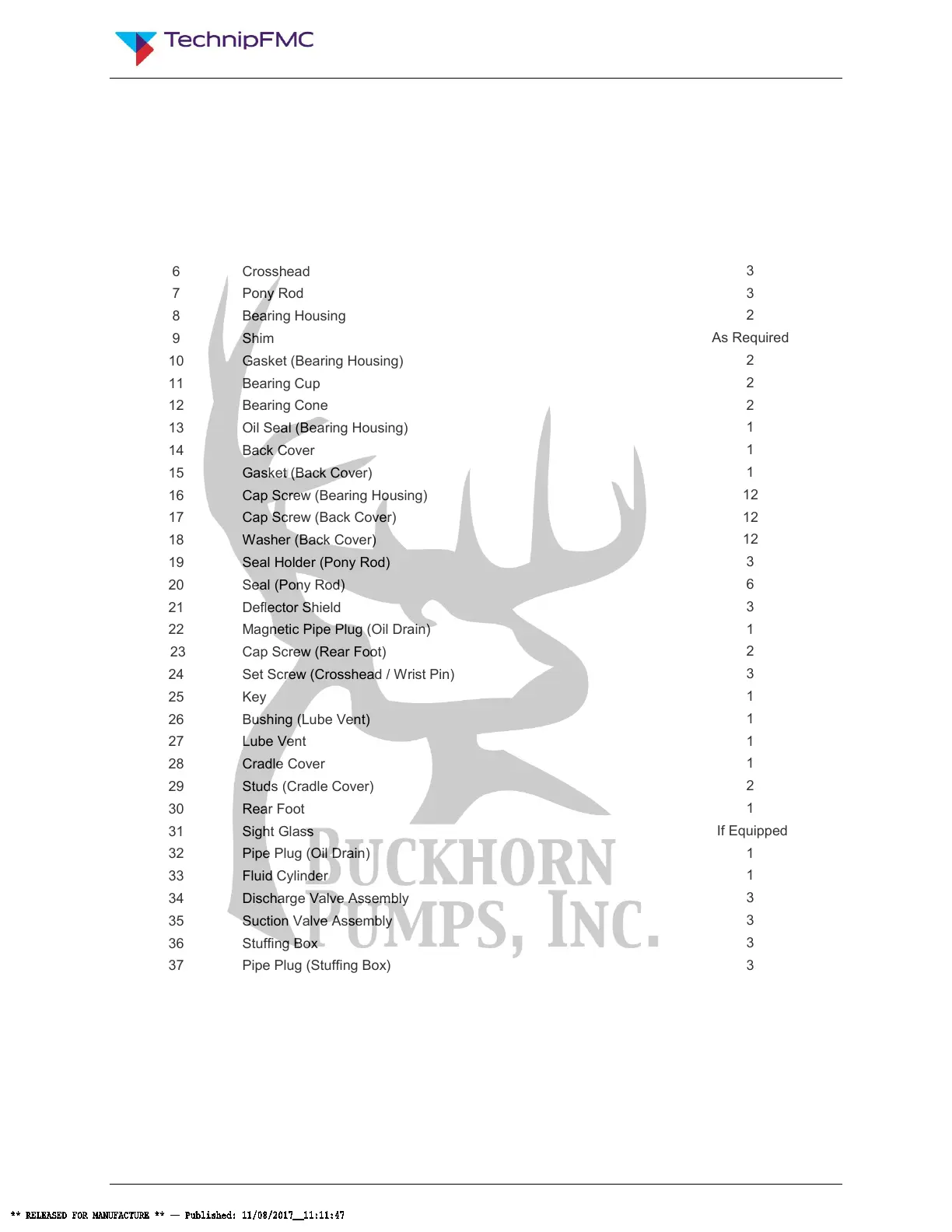

Item Number
Component Description
Quantity
1
Power Frame
1
2
Crankshaft
1
3
Connecting Rod Assembly
3
4
Rod Bearing
6
5
Wrist Pin
3
6
Crosshead
3
7
Pony Rod
3
8
Bearing Housing
2
9
Shim
As Required
10
Gasket (Bearing Housing)
2
11
Bearing Cup
2
12
Bearing Cone
2
13
Oil Seal (Bearing Housing)
1
14
Back Cover
1
15
Gasket (Back Cover)
1
16
Cap Screw (Bearing Housing)
12
17
Cap Screw (Back Cover)
12
18
Washer (Back Cover)
12
19
Seal Holder (Pony Rod)
3
20
Seal (Pony Rod)
6
21
Deflector Shield
3
22
Magnetic Pipe Plug (Oil Drain)
1
23
Cap Screw (Rear Foot)
2
24
Set Screw (Crosshead / Wrist Pin)
3
25
Key
1
26
Bushing (Lube Vent)
1
27
Lube Vent
1
28
Cradle Cover
1
29
Studs (Cradle Cover)
2
30
Rear Foot
1
31
Sight Glass
If Equipped
32
Pipe Plug (Oil Drain)
1
33
Fluid Cylinder
1
34
Discharge Valve Assembly
3
35
Suction Valve Assembly
3
36
Stuffing Box
3
37
Pipe Plug (Stuffing Box)
3
38
Packing Set
3
39
Throat Bushing
As Required
40
Lantern Ring
3
