11.0 Fastener Torque Requirements
NOTICE: No pump service procedure is complete without insuring that the fasteners
have been properly torqued. Failure to properly tighten the pump bolts could cause the
pump to leak or possibly allow the pump to fail. Always use a calibrated torque wrench
during the installation of all critical fasteners listed in Table 5 below. Values are in foot-
pounds (Ft-lb) and newton meters (N-m). Typical sizes are shown in Table 5 below.

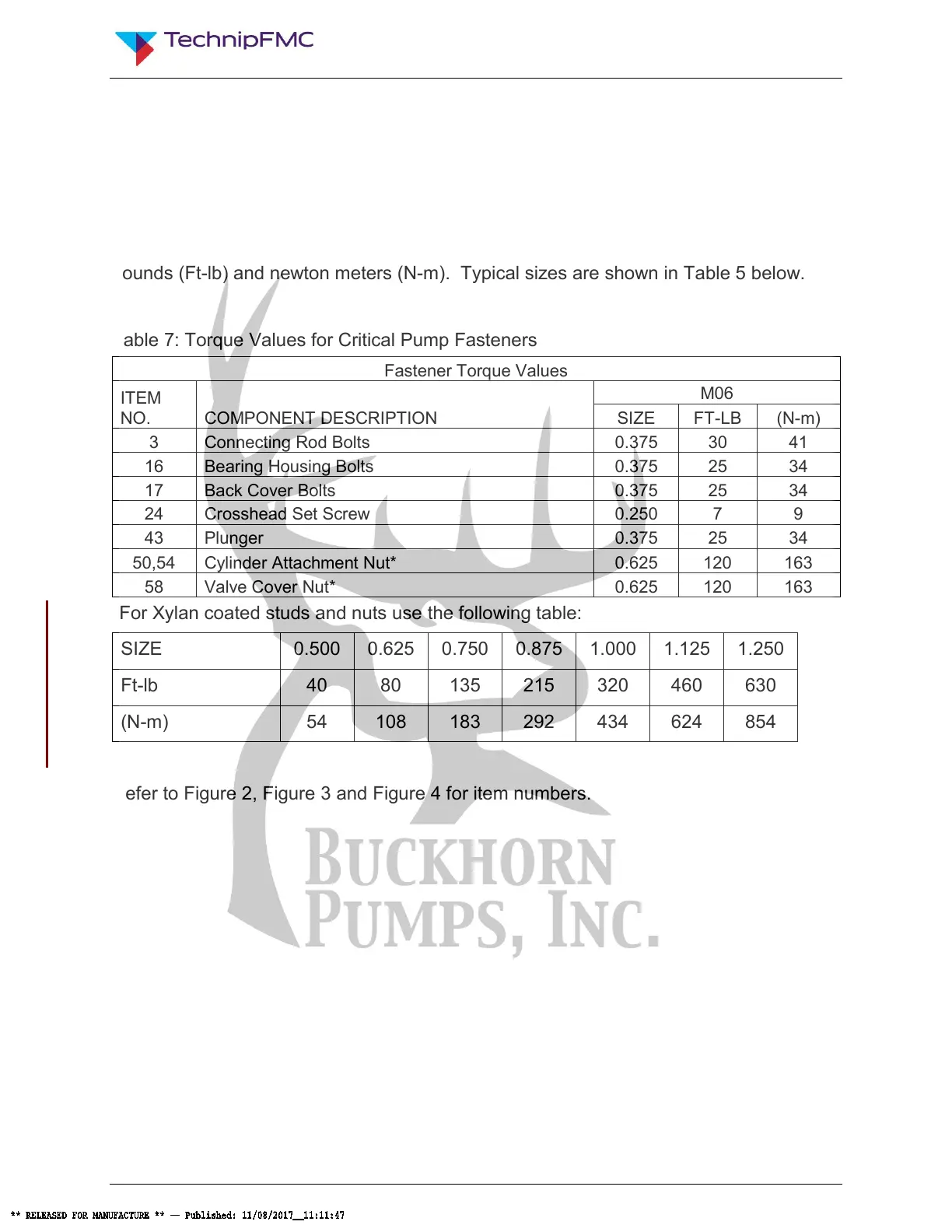

Table 7: Torque Values for Critical Pump Fasteners
Fastener Torque Values
ITEM
NO.
COMPONENT DESCRIPTION
M06
SIZE
FT-LB
(N-m)
3
Connecting Rod Bolts
0.375
30
41
16
Bearing Housing Bolts
0.375
25
34
17
Back Cover Bolts
0.375
25
34
24
Crosshead Set Screw
0.250
7
9
43
Plunger
0.375
25
34
50,54
Cylinder Attachment Nut*
0.625
120
163
58
Valve Cover Nut*
0.625
120
163
*For Xylan coated studs and nuts use the following table:
SIZE
0.500
0.625
0.750
0.875
1.000
1.125
1.250
Ft-lb
40
80
135
215
320
460
630
(N-m)
54
108
183
292
434
624
854
Refer to Figure 2, Figure 3 and Figure 4 for item numbers.
