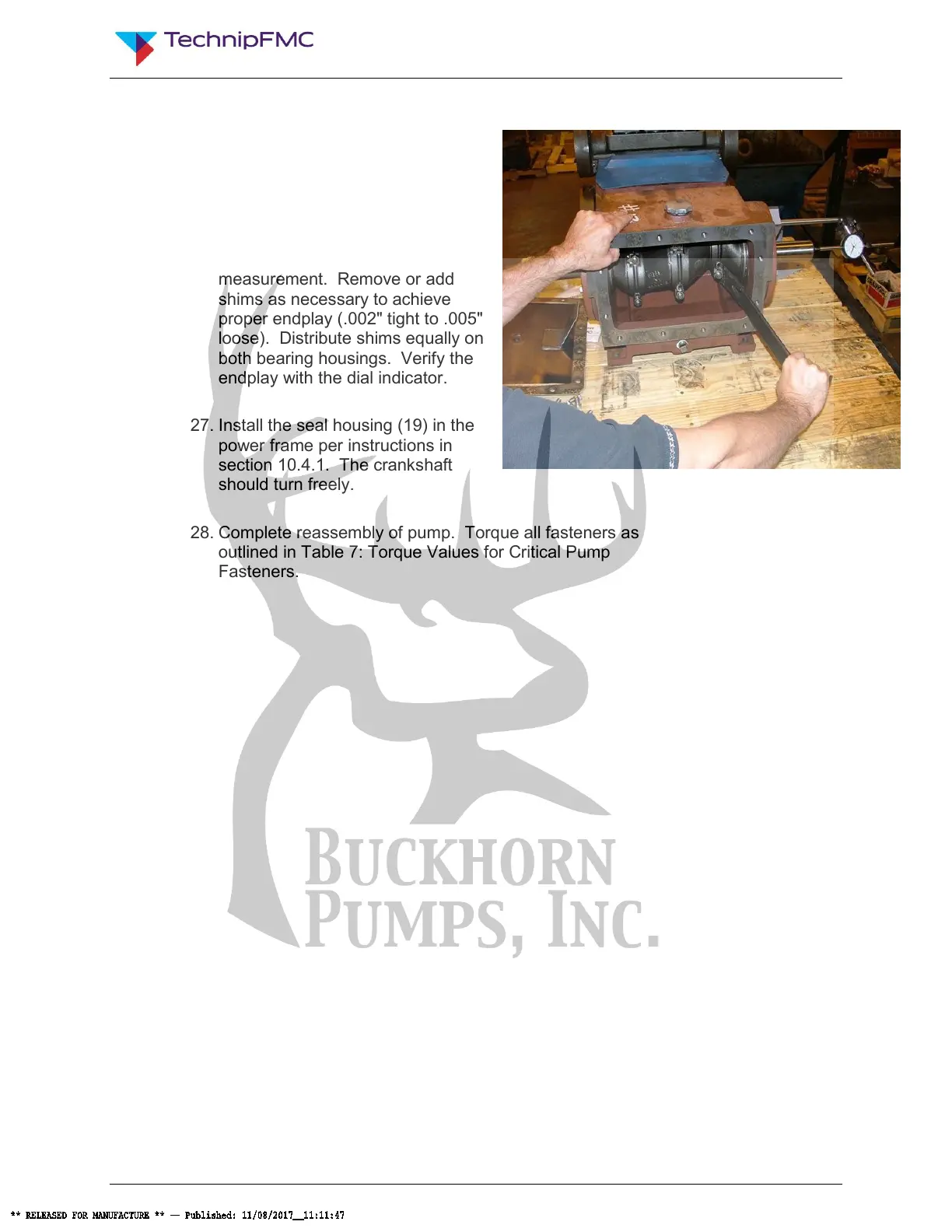

26. Move the crankshaft back over to
the opposite side and read bearing
endplay as total indicator
movement. Rotate the crankshaft
several turns and repeat the effort
to move the crankshaft in the
direction described in this step.
Repeat the dial indicator
measurement. Remove or add
shims as necessary to achieve
proper endplay (.002" tight to .005"
loose). Distribute shims equally on
both bearing housings. Verify the
endplay with the dial indicator.
27. Install the seal housing (19) in the
power frame per instructions in
section 10.4.1. The crankshaft
should turn freely.
28. Complete reassembly of pump. Torque all fasteners as
outlined in Table 7: Torque Values for Critical Pump
Fasteners.
