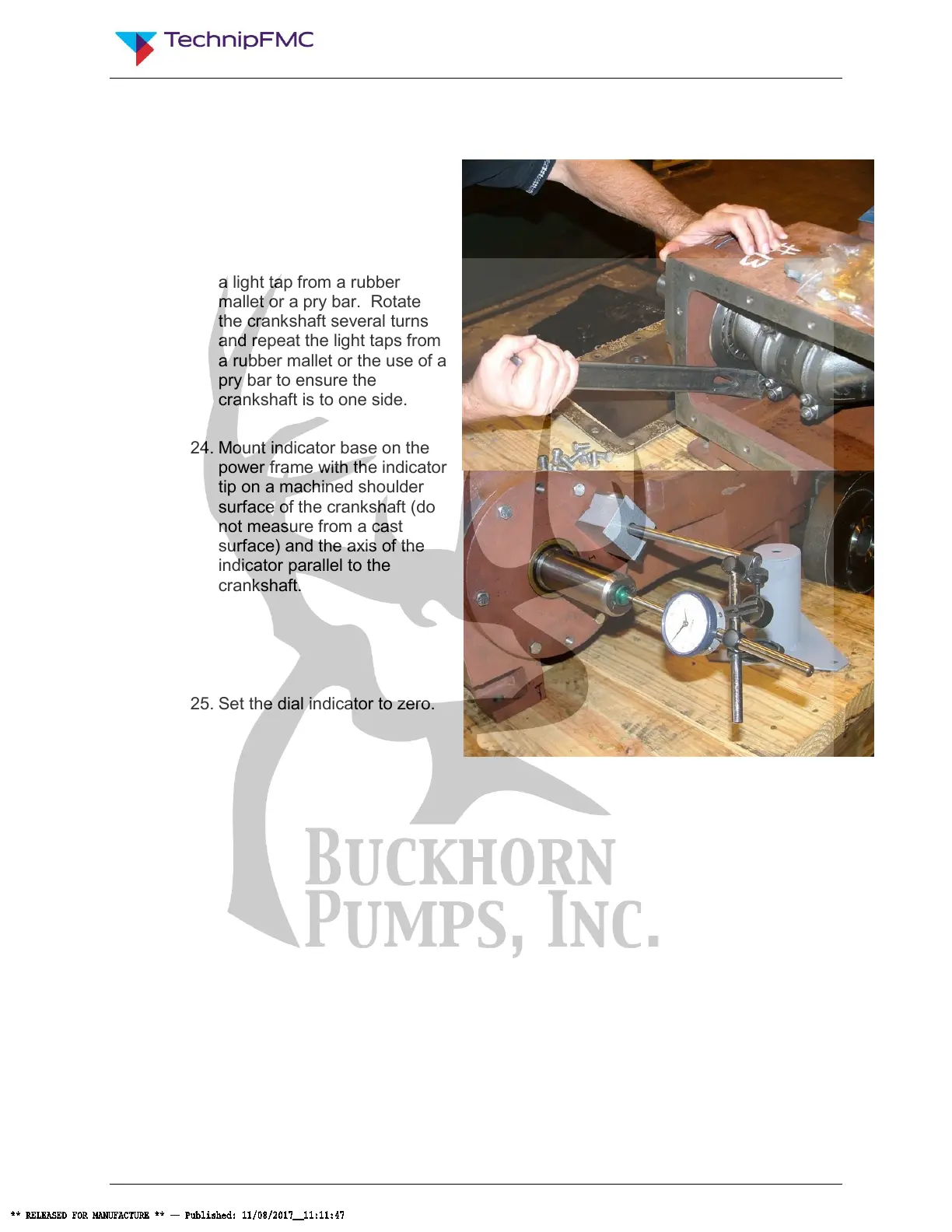

23. Move the crankshaft to one
side of the power frame using
a light tap from a rubber
mallet or a pry bar. Rotate
the crankshaft several turns
and repeat the light taps from
a rubber mallet or the use of a
pry bar to ensure the
crankshaft is to one side.
24. Mount indicator base on the
power frame with the indicator
tip on a machined shoulder
surface of the crankshaft (do
not measure from a cast
surface) and the axis of the
indicator parallel to the
crankshaft.
25. Set the dial indicator to zero.
