TechniSat DIGIDISH 33 Installation Instructions

9
E N
1 Assembling the external unit
The external unit is delivered partially pre-assembled. Only the dish (Item 2) and the
connector rod (Item 3) need to be attached.
First, use bolts (A) to attach the dish to the AZ/EL bracket (Item 1). Then loosen screw (B)
on the swivel mount to attach the connector rod. After this, install the LNB (Item 5) on the
LNB bracket using the LNB clamp (Item 6) as shown in Fig
ure 1.
2 Installation
Selecting a location
a) Make sure that there is an uninterrupted line of sight from the location in which you
are planning to install the dish to the southern sky to enable reception from the positi-

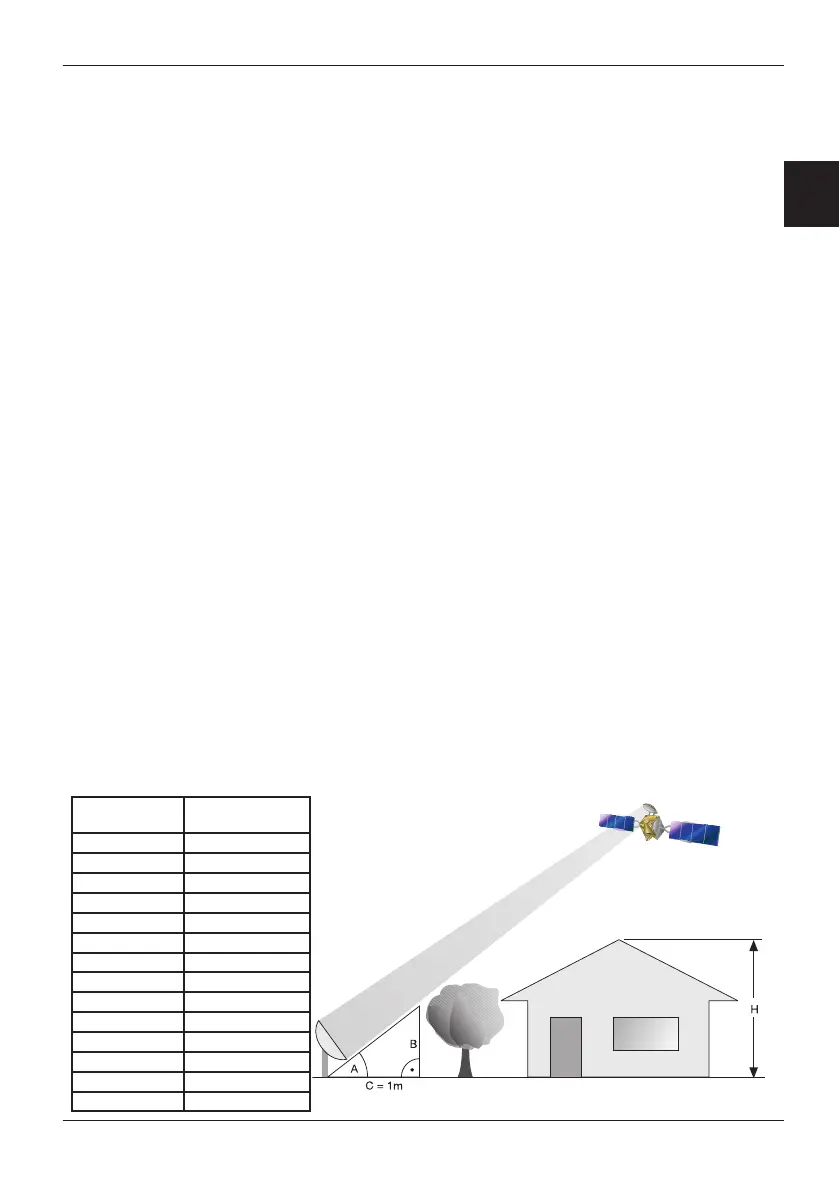

on of the ASTRA 19.2° East satellite. You can use the illustration below to verify
whether you have left sufficient distance from any nearby obstruction to prevent the
obstruction from w
eakening signal reception. Make sure when installing beneath a
terrace that the dish is not within the shadow of any protruding roof.
b) Mount the wall bracket (Item 4) horizontally in the location selected.
In order to ensure that the external unit is as securely mounted as
possible, you should select the appropriate mounting hardware (scr-
ews wall plugs, etc.) for the surface onto which the unit is
being
installed. Because of the wide variety of wall types, no wall bracket
mounting hardware is included.
c) Loosen screw (C) on the wall bracket and attach the external unit using the connec-
tor rod.
Angle A
(Elevation)
Gradient B
(cm per m)
22° 40.40
24° 44.52
26° 48.77
28° 53.17
29° 55.40
30° 57.74
31° 60.00
32° 62.49
33° 64.90
34° 67.45
35° 70.02
36° 72.65
37° 75.36
38° 78.13

TechniSat DIGIDISH 33 Specifications

General

Package weight	3200 g
Material	Aluminum
Product color	Beige
Frequency range	10.7 - 12.75 GHz
Antenna gain level (max)	30 dBi

Weight and Dimensions

Width	330 mm
Height	350 mm
Weight	2500 g
