Humidity 5 % to 95 % (relative, non-
condensing)
5 % to 95 % (relative, non-
condensing)
Operating height 0 to 4,000 m above Sea level 0 to 4,000 m above Sea level
7. 9 Storage conditions
Temperature -40 °C to 80° C (without direct
sunlight)
-40 °C to 80° C (without direct
sunlight)
Humidity 5 % to 95 % (relative, non-
condensing)
5 % to 95 % (relative, non-
condensing)
Operating height 0 to 5,000 m above Sea level 0 to 5,000 m above Sea level
8 Installing the charging station

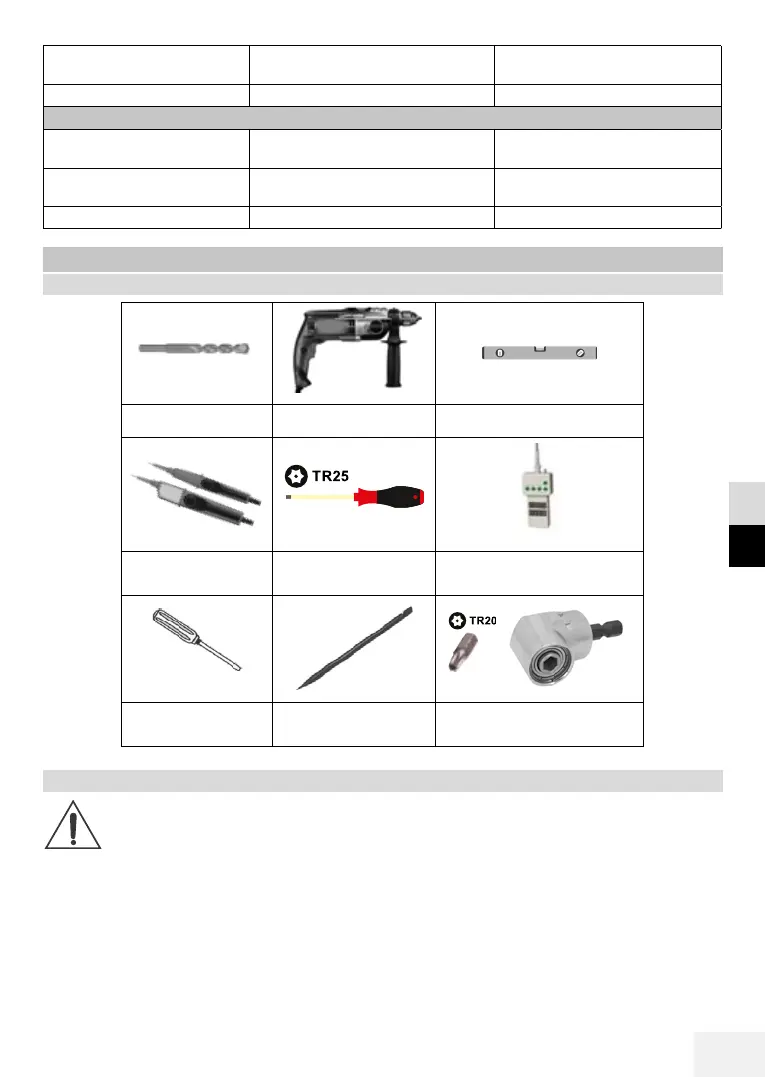

8.1 Recommended tools
Drill bit, 8 mm dia. Hammer drill Spirit level
Voltmeter Torx-TR 25 safety
screwdriver
EVC tester
Screwdriver
(width 2-2.5 mm)
Centrepunch or pencil
Angle adapter hex-bit
& Torx-TR 20 safety bit
Table 1: Recommended tools
8.2 Installation steps
CAUTION!
• Make sure that the earthing resistance of the installation is less than 100 Ohms
• Read these instructions before mounting your charging station on the wall.
• Do not install the charging station on the ceiling or an inclined wall.
• Use only the screws and accessories provided for wall mounting
• This charging station is designed for installation indoors and outdoors. If the device is
installed outside the building, the hardware used to connect the cables to the charging
device must be compatible with outdoor use, and the charging station must be installed
in such a way that the IP54 protection rating is retained.
