9 Connecting the charging station
The following chapter describes the 3-phase mains connection of the charging station.
9.1 Mains connection
You must dimension the mains infeed at least as described in Chapter „7 Technical Specifications“,
Page 40. The outside diameter of the mains infeed line must be between 15 mm and 21 mm.

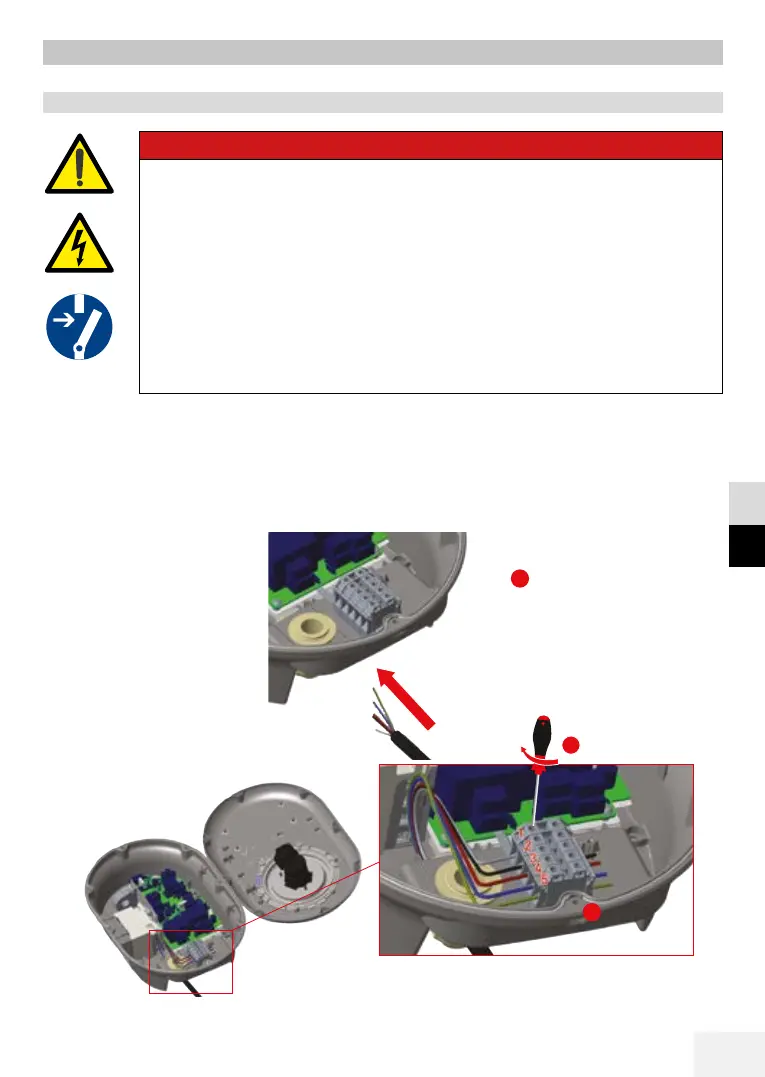

1. Guide the cables into the device and the terminal rail as shown in Figure Illustration .
2. Tighten the screws on the terminal rail as shown in Figure Illustration to a tightening torque
of 2.5 Nm.
Illustration 8: Mains connection, 3-phase
DANGER
Danger to life from electrical power.
There is an immediate danger to life by electrocution if you touch live parts.
De-energise the installation before starting work.
Observe the 5 safety rules to prevent electrical accidents.
• Release.
• Secure against restarting.
• Validate that the power is o.
• Earth and short-circuit.
• Cover or cordon o any adjacent live parts.
