46

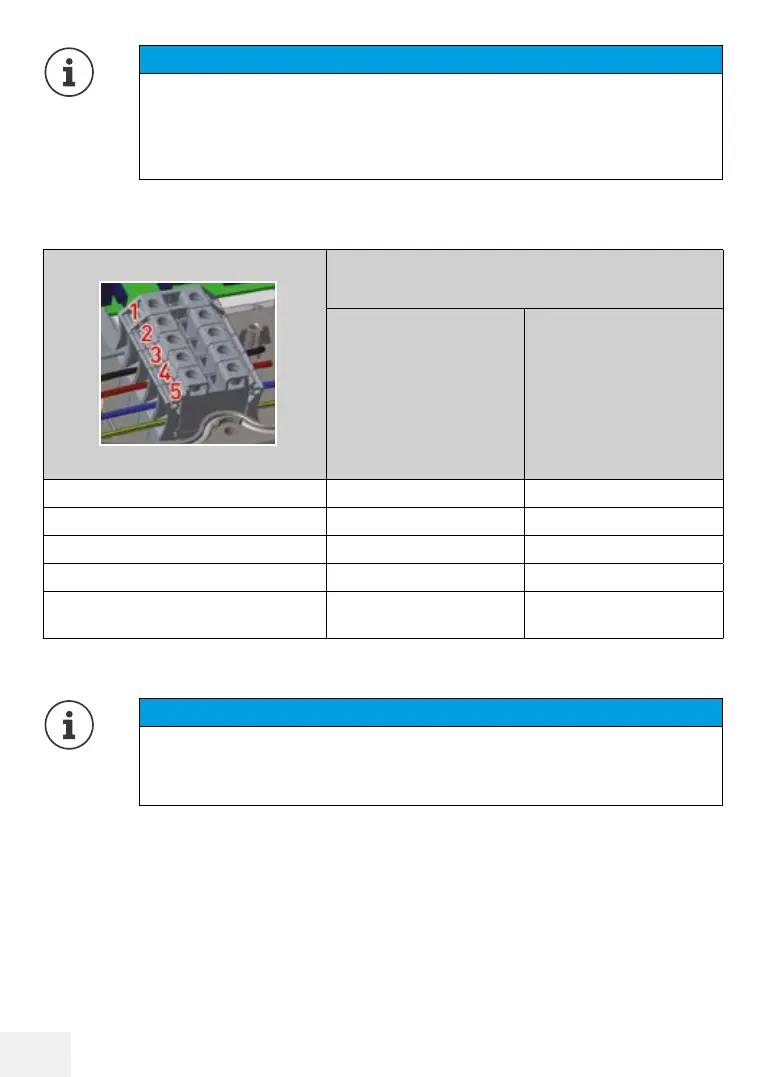

The individual wires in the mains infeed must be connected to the terminal rail as described
in the following .
Mains connection terminal
No.
Cable colour, mains infeed
3-phase 1-phase
1 L3 (grey)
2 L2 (black)
3 L1 (brown) L1 (brown)
4 Neutral wire (blue) Neutral wire (blue)
5 Protection wire (green-
yellow)
Protection wire (green-
yellow)
Table 2: Mains connection
NOTE
The standard charging current is set to 16 A
Changing the charging current is described in Chapter „10.1 Seings for the
Charging Current“, Page 48.
NOTE
The charging station can also be connected with a single phase. The maximum
charging power then is 3.7 kW (230 V x 16 A x 1).
We recommend a 3-phase connection to the charging station in order to
achieve the maximum charging power of 11 kW (230 V x 16 A x 3).
