Shading function
41

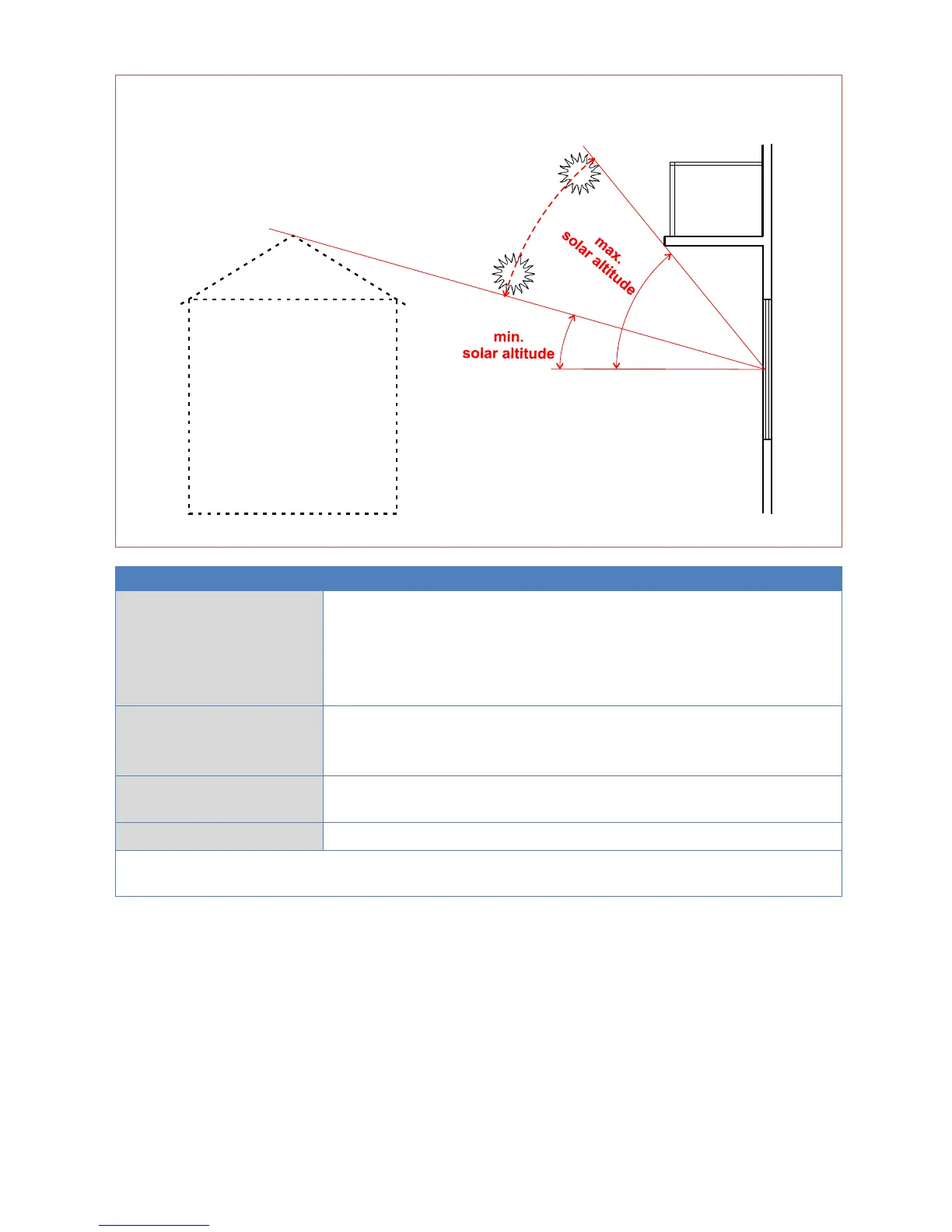

➢ Figure 3: Maximum and minimum solar altitude (view: elevation)
Output variables
Auto mode set position
Two percentages are included in this output:
1st percentage: slat position,
0 % = horizontal, 100 % = vertical
2nd percentage:
0 % = blind or shutter all the way up, 100 % = all the way down
Auto mode status
Status ON if in auto mode
Status OFF if manual shading has been started or if enable or enable
auto mode is OFF.
In the shading area
Status OFF if the sun is outside the range Diff. on – Diff. off, if manual
shading has been started or if enable is OFF.
Interval timer
Display of a countdown of the interval time
➢ If "Roller shutter" is set (parameter "Slats: No"), the first percentage of the auto mode set
position and the slat set position is always 0 %.
