Gradient detection
53

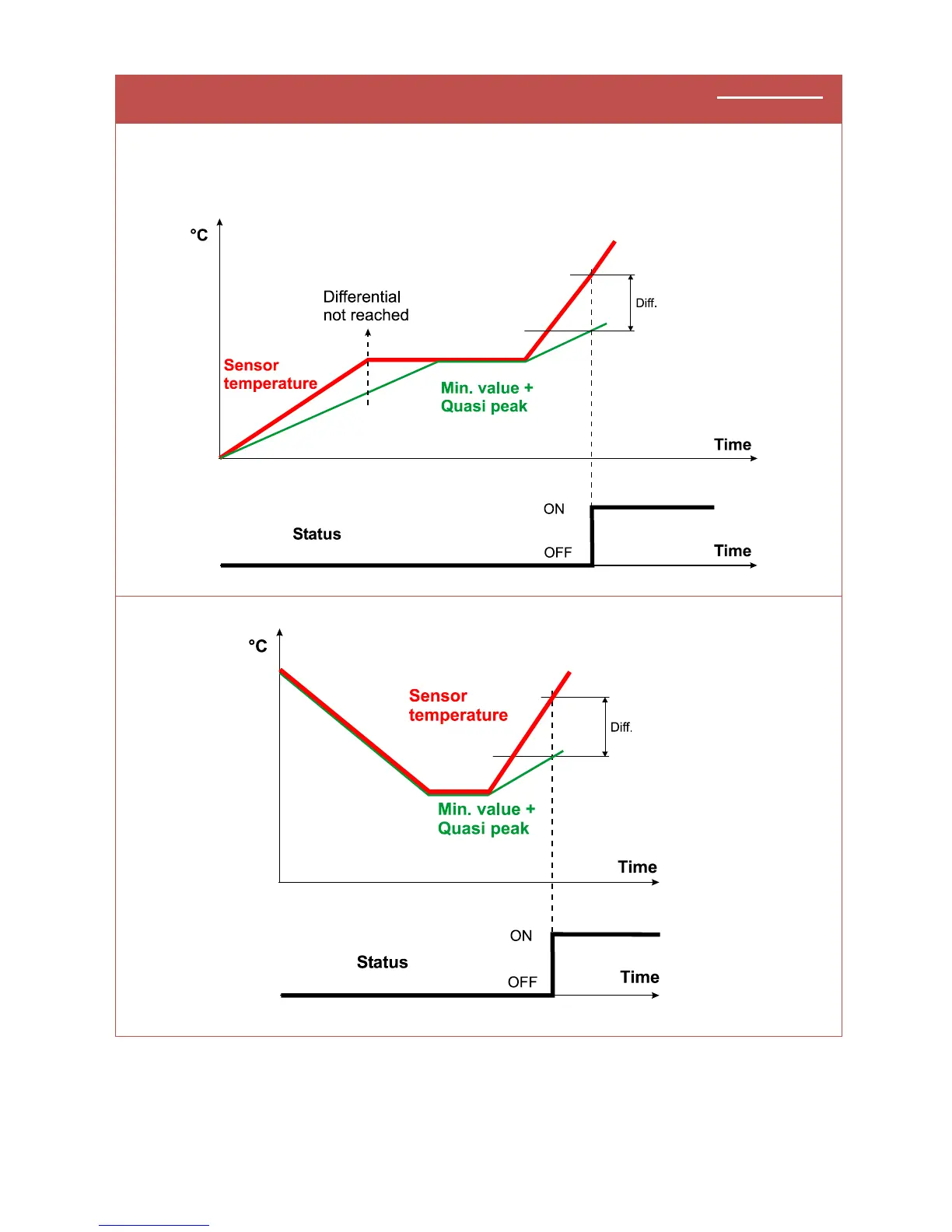

Graphs for slope detection / positive slope / no reset signal / quasi peak
Additional examples
Temperature rising slowly at first; the differential for minimum + quasi peak is not reached up to the
first maximum. The differential is only exceeded when the temperature rises more steeply later. At
that point, the Status output switches to ON and the Value output variable indicates the quasi peak
temperature.
Example: Temperature falling at first, then rise in temperature
