FLEXability LINE: Service & Maintenance Manual - rev. 1.0
5. WHAT IF …
5.1. THE MACHINE IS NOT FLAT
5.1.1. ANTERIOR

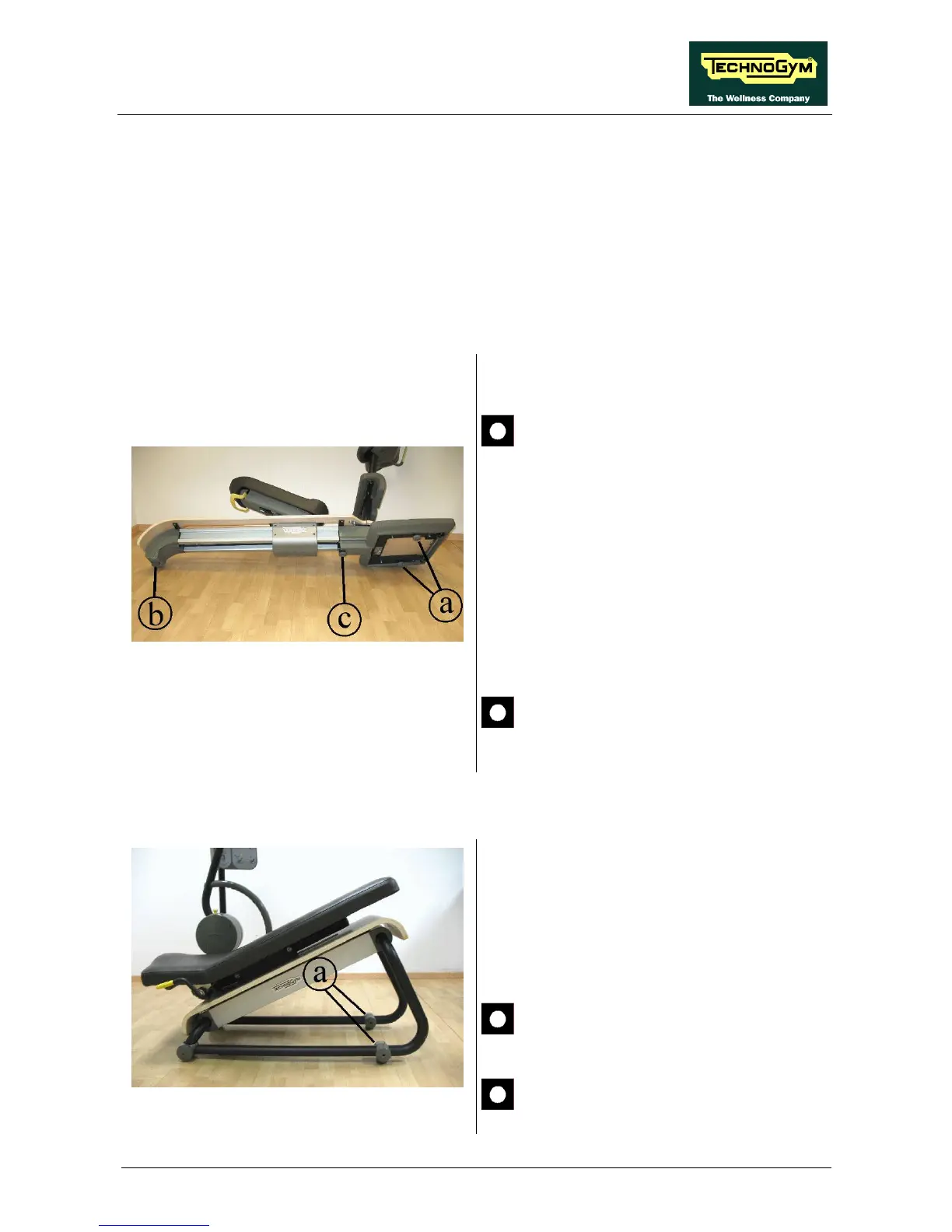

Figure 5.1-1
The machine disposes of 4 adjusting feet,
indicated in the figure to side.
Check that all the 4 feet are touching on
the floor.
Before the packaging of the machine, the flatness
of each piece is checked on a flat surface.
In case the machine is not flat, we suggest to
proceed as follow:
1. Completely screw in the central foot c.
2. Adjust the height of the 2 front feet a.
3. If it is not sufficient, adjust also the height of
the rear foot b.
At the end of the procedure, lock down
the counter nuts of each feet.
5.1.2. POSTERIOR
Figure 5.1-2
The machine disposes of 2 adjusting feet,
indicated in the figure to side.
Before the packaging of the machine, the flatness
of each piece is checked on a flat surface.
In case the machine is not flat, we suggest to
adjust the height of the feet a.
At the end of the procedure, lock down
the counter nuts of each feet.
At the end of the procedure reassemble
what previously disassembled.
Page 5.1
