6.2. KNEE REST UPHOLSTERY

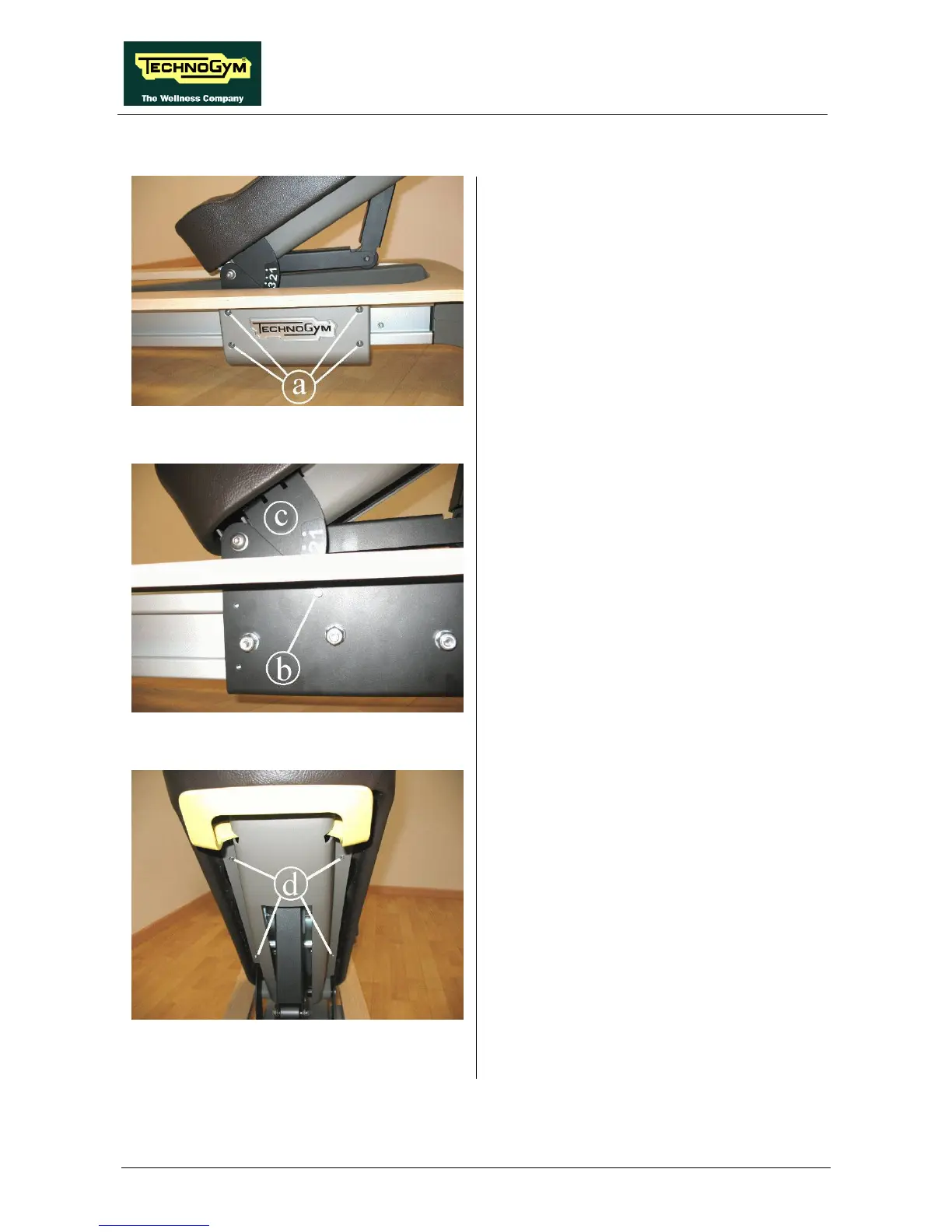

Figure 6.2-1
1. Back off the 4 screws a using a 3mm hex
wrench, on the left side of the machine.
2. Remove the carriage left side casing.
Figure 6.2-2
3. Back off the screw b using a 4mm hex
wrench, which is acting as knee rest
movement limit stop, on the plate c.
Figure 6.2-3
4. Pull the knee rest upholstery up and back off
the 4 screws d on the rear side using a
Phillips screwdriver.
5. Push down the plastic casing.
Continued on following page →
