6.4. CARRIAGE BELT

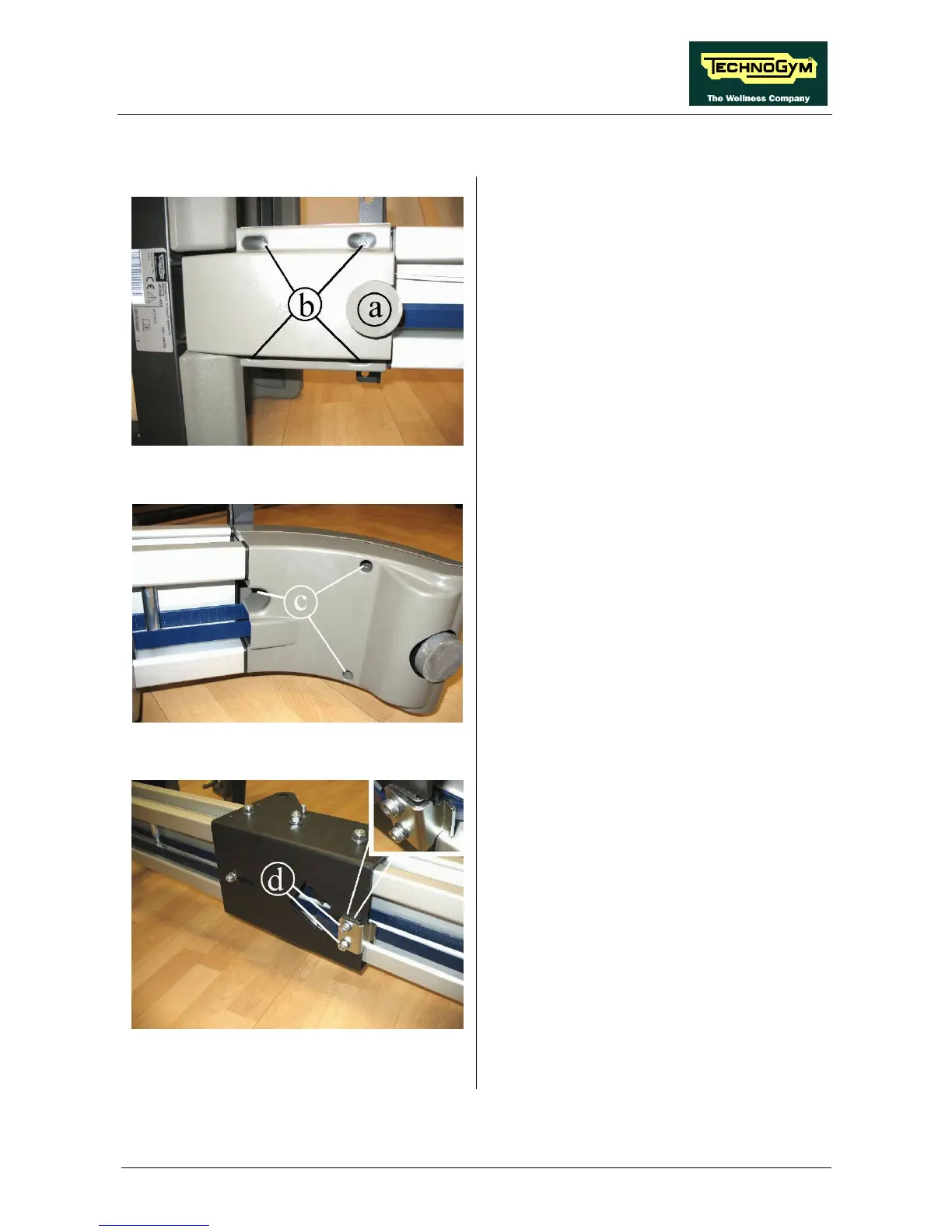

Figure 6.4-1
1. Tilt the machine on one side.
2. Back off and remove the foot a.
3. Back off the 4 screws b using a Phillips
screwdriver.
4. Remove the front lower and upper casings.
Figure 6.4-2
5. Back off the 3 screws c using a Phillips
screwdriver and remove the rear lower
casing.
Figure 6.4-3
6. Back off the screws d of the belt fixing
device on the carriage, using a 5mm hex
wrench.
Continued on following page →
