FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 6.6

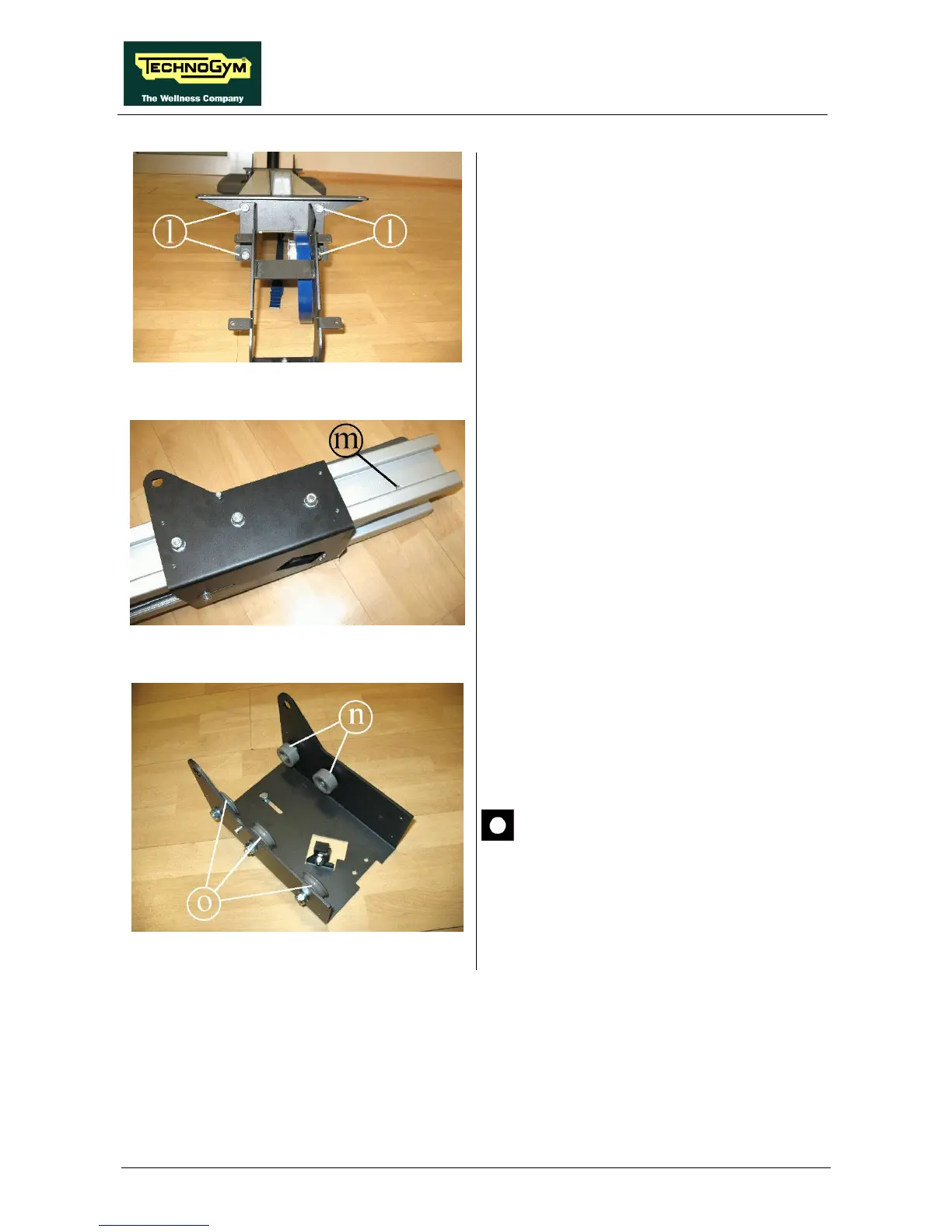

Figure 6.3-7
10. Back off the 4 screws l, using a 6mm hex
wrench.
Figure 6.3-8
11. On both the sides of the machine, back off
the screw m using a 5mm hex wrench and
remove the pin which act as a rear limit stop
for the carriage.
Figure 6.3-9
12. It is now possible to disassemble the 2 flat
wheels n and the 3 shaped wheels o.
To reassemble the knee rest carriage, carry out
the above steps in reverse order.
After completing the reassembly
procedure, carry on the procedures
described in paragraph 8.1. “Adjusting
the encoder zero position” and 8.2.
“Anterior: adjusting the carriage belt
tension”.
