FLEXability LINE: Service & Maintenance Manual - rev. 1.0
7.10. TIMER DEVICE

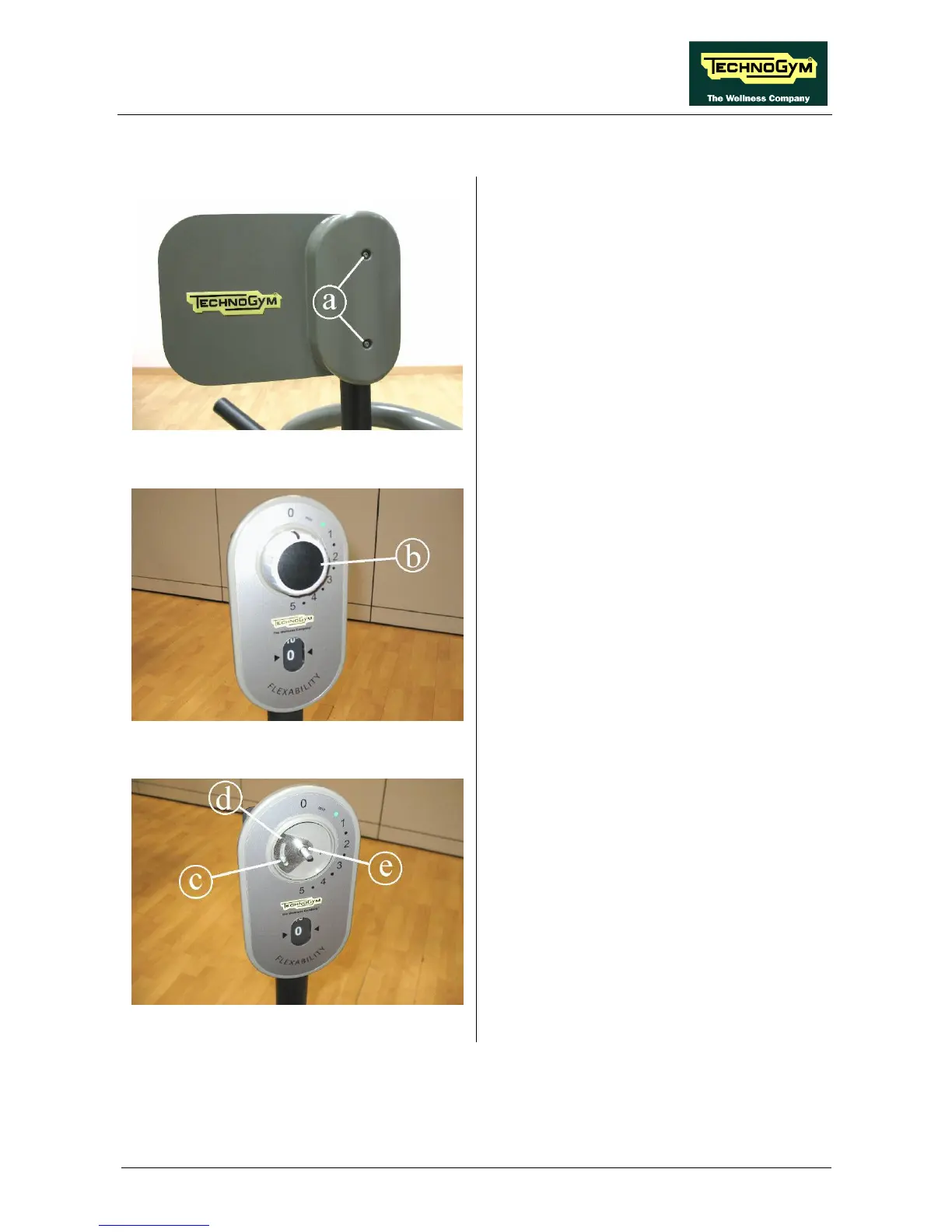

Figure 7.10-1
1. Back off the 2 screws a using a 4mm hex
wrench.
2. Remove the display rear casing.
Figure 7.10-2
3. Remove the knob b.
Figure 7.10-3
4. Back off the screw c using a Phillips
screwdriver.
5. Remove the fixing plate d.
6. Back off the nut e using a 11mm wrench.
7. Remove the timer from the rear side of the
display.
To reassemble the timer device, carry out the
above steps in reverse order.
Page 7.13
