FLEXability LINE: Service & Maintenance Manual - rev. 1.0

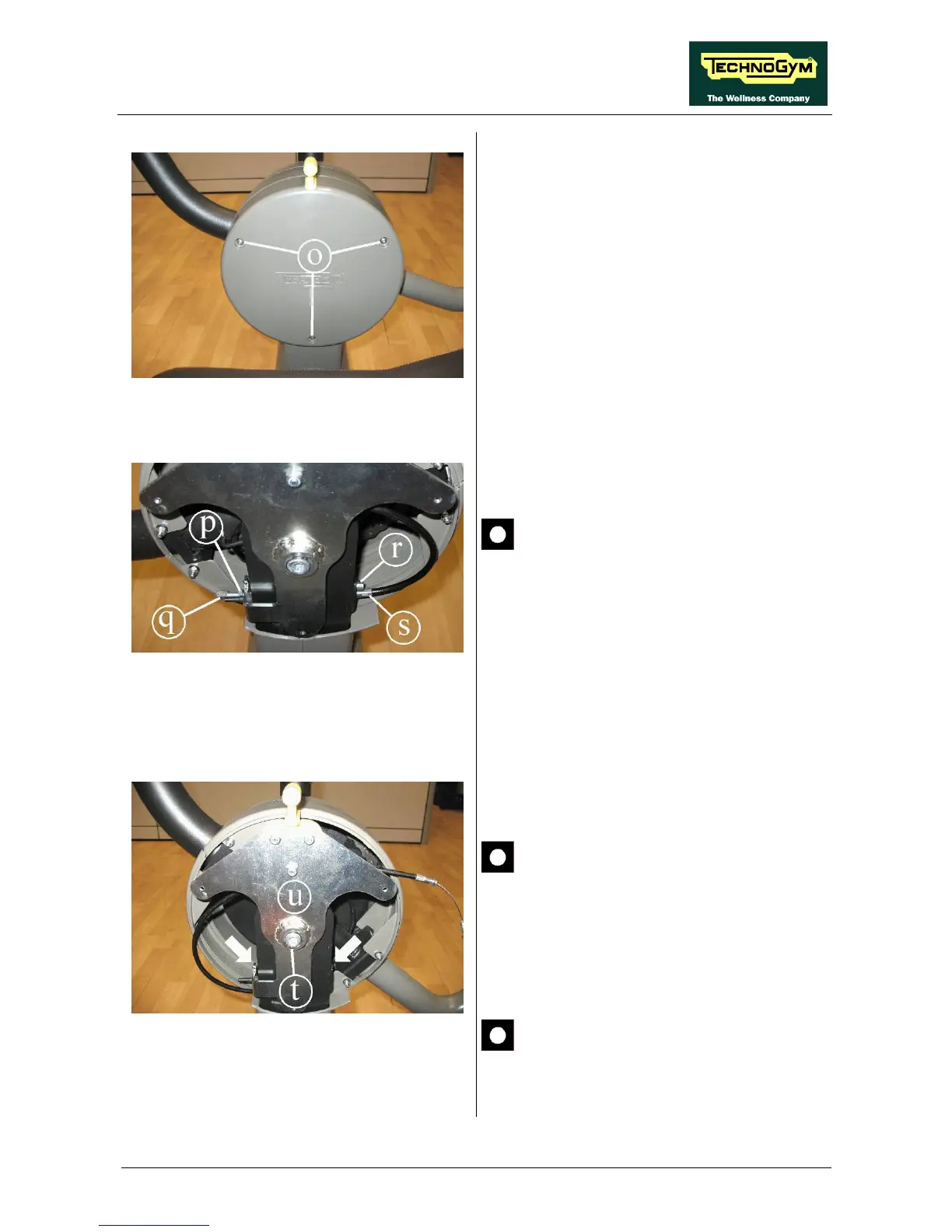

Figure 7.6-4
To disassemble the feet position adjusting lever:
14. Back off the 3 screws o using a 3mm hex
wrench and remove the casing.
Figure 7.6-5
15. Back off the counter nut p and screw in the
adjusting screw q.
16. Back off the screw r to remove the cable s
from its slot in the frame.
During the reassembly procedure,
carry out the above steps in reverse
order: screw in the screw “q” and place
the cable “s” in its slot.
To adjust the tension of the cable, back
off the screw “q” until the unlocking
device of the gas spring is completely
released and then lock down the
counter nut again.
Figure 7.6-6
17. Remove the external circlip t.
18. Disconnect the spring from the lever u where
indicated by the arrows and remove the
lever.
During the reassembly procedure, put
some grease between the lever “u” and
the pin.
To reassemble the feet position lever adjusting
device, carry out the above steps in reverse
order.
During the reassembly procedure, fix
the cable again using a cable tie.
Continued on following page →
