Techroutes LLDP User Manual

LLDP Configuration
15
1.4.2 Network Topology
S1
G0/8 G0/1
S2

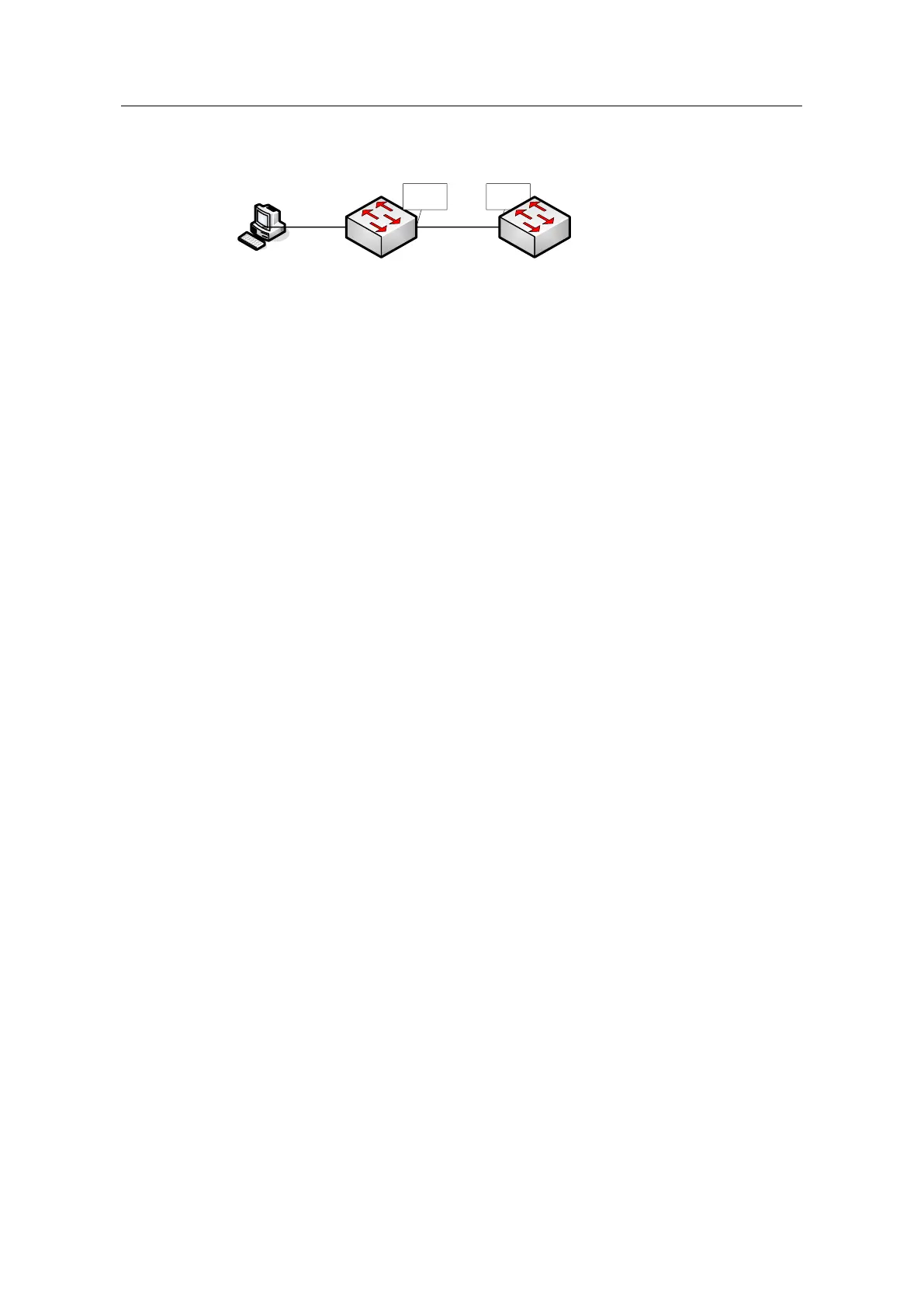

Figure 2 Network Topology
1.4.3 Configuration Procedure
1. Basic Settings
Configuring switch S1:
Switch_config#lldp run
Switch_config#
Configuring switch S2:
Switch_config#lldp run
Switch_config#
The information of Neighbor B will be displayed on Switch A about 1 minute later.
MED-TLV information is not sent by default.
S1:
Switch_config#show lldp neighbors
Capability Codes:
(R)Router,(B)Bridge,(C)DOCSIS Cable Device,(T)Telephone
(W)WLAN Access Point, (P)Repeater,(S)Station,(O)Other
Device-ID Local-Intf Hldtme Port-ID Capability
Switch Gig0/8 99 Gig0/1 B
Total entries displayed: 1
Switch_config#show lldp neighbors detail
