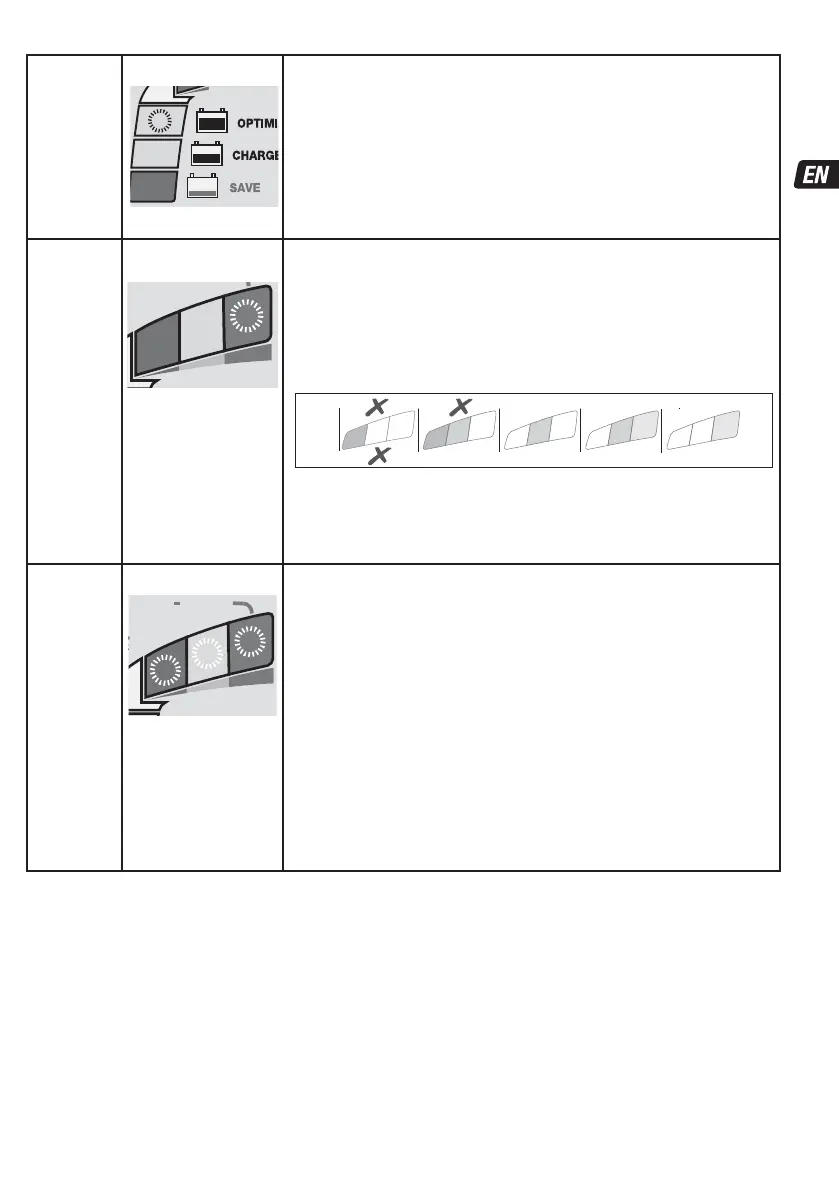

7
STEP 7
OPTIMIZE
LED #5 : YELLOW
TEST
5
Engages when the voltage has reached 14.4V (14.7V) for the first time
during CHARGE mode.
The ampmatic™ current control program now delivers pulses of current to equalise
the individual cells within the battery and optimizes charge level.
Charging should complete within the minimum charge time set during STEP 3, but if
the battery requires further charging the program will extend OPTIMIZE mode up to a
maximum of 2 hours. NOTE: Charge time is usually extended if there is higher than
expected current draw by connected circuitry or battery health is less than optimal.
For safety reasons there is an overall charge time limit of 72 hours for
STEP 4, 5 and 6.
STEP 8
TEST after
charge
LED #6 FLASHING
TEST
sec.sec.
6
TEST after charge : Delivery of current to the battery is interrupted for
30 minutes** to allow the program to determine the battery’s ability to
retain charge.
**
IF the result in STEP 3 was RED (LED #8) or RED & YELLOW (LED #7 & 8), indicating
a deep discharged battery) the voltage retention test is extended to 12 hours to confirm
battery health.
The TEST result (indicated on LED # 6, 7, 8) is adjusted in real time according to the
measured battery voltage.
8
7
6
80 100%604020AGM
100% 806040STD
8
7
7
6
0
0
The TEST will be interrupted if LED #8 (red) lights. A significant problem exists if the
battery is unable to retain sufficient charge during this voltage retention test. Consult
the table above to match TEST LED indication to an estimated state of charge
percentage (SOC%).
More information is provided in the section “NOTES ON TEST RESULTS”.
STEP 9
OptiMATE
smart
MAINTAIN
LED #6 / 7 / 8 ON
U
PPLY 13.6V 8A13.6V 8A
U
PPLY
TEST
c
t
3 sec.3 sec.
c
t
6
7
8
For batteries with a good
state of health LED #6
(green) will remain on.
Exception: STD wet cell
batteries with filler caps
have a lower fully charged
voltage: LED #6 remains
on together with LED #7.
MAINTENANCE CHARGE: LED #6 / 7 / 8 steady on
according to state of charge measured during STEP 8.
Float voltage setting: 13.6V nominal at 20°C (68°F) The float voltage is inversely
regulated according to ambient temperature; i.e., voltage is increased at lower
temperature, decreased at higher temperature.
Adjustment: -0.04V / cell / °C above or below 20°C (68°F).
STD maintenance mode consists of 30 minute float charge periods followed by and
alternating with 30 minute ‘rest’ periods, during which there is no charge delivered.
This “50% duty cycle” prevents loss of electrolyte in sealed batteries and minimizes
gradual loss of water from the electrolyte in batteries with filler caps, and thereby
contributes significantly to optimizing the service life of irregularly or seasonally used
batteries.
During “float charge” a continuous LOW CURRENT PULSE IS DELIVERED TO PREVENT
SULFATION, further extending battery power and life.
If the OptiMate senses the battery has lost charge the program will revert back to
CHARGE step.
VERY FLAT NEGLECTED BATTERIES: If the battery is deeply discharged (and possibly sulfated), remove from the vehicle or
equipment and inspect the battery before connecting the charger for a recovery attempt.
The charger’s TURBO recovery mode cannot engage if it senses that the battery is still connected to a circuit which effectively
offers a lower electrical resistance than the battery on its own. However, if the deep-discharged battery is not removed for recovery,
neither battery nor vehicle or equipment electronics will be damaged. Pay particularly close attention to the following A battery left
deep-discharged for an extended period may develop permanent damage in one or more cells. Such batteries may heat up excessively
during high current charging.
Monitor the battery temperature during the first hour, then hourly there-after. Check for unusual signs, such as bubbling or leaking
electrolyte, heightened activity in one cell compared to others, or hissing sounds. If at any time the battery is uncomfortably hot to touch or
you notice any unusual signs, DISCONNECT THE CHARGER IMMEDIATELY.
NOTES ON TEST RESULTS:
1. For any test result other than green #6 (or green #6 and yellow #7 together if the battery is a STD type with filler caps), disconnect the
battery from the electrical system it supports, and reconnect the OptiMate. If a better test result is now obtained, this suggests that the
power losses are partly due to an electrical problem in the electrical system and not in the battery itself. If the poor result persists, you are
