3650EVOLUTION - 3655 EVOLUTION

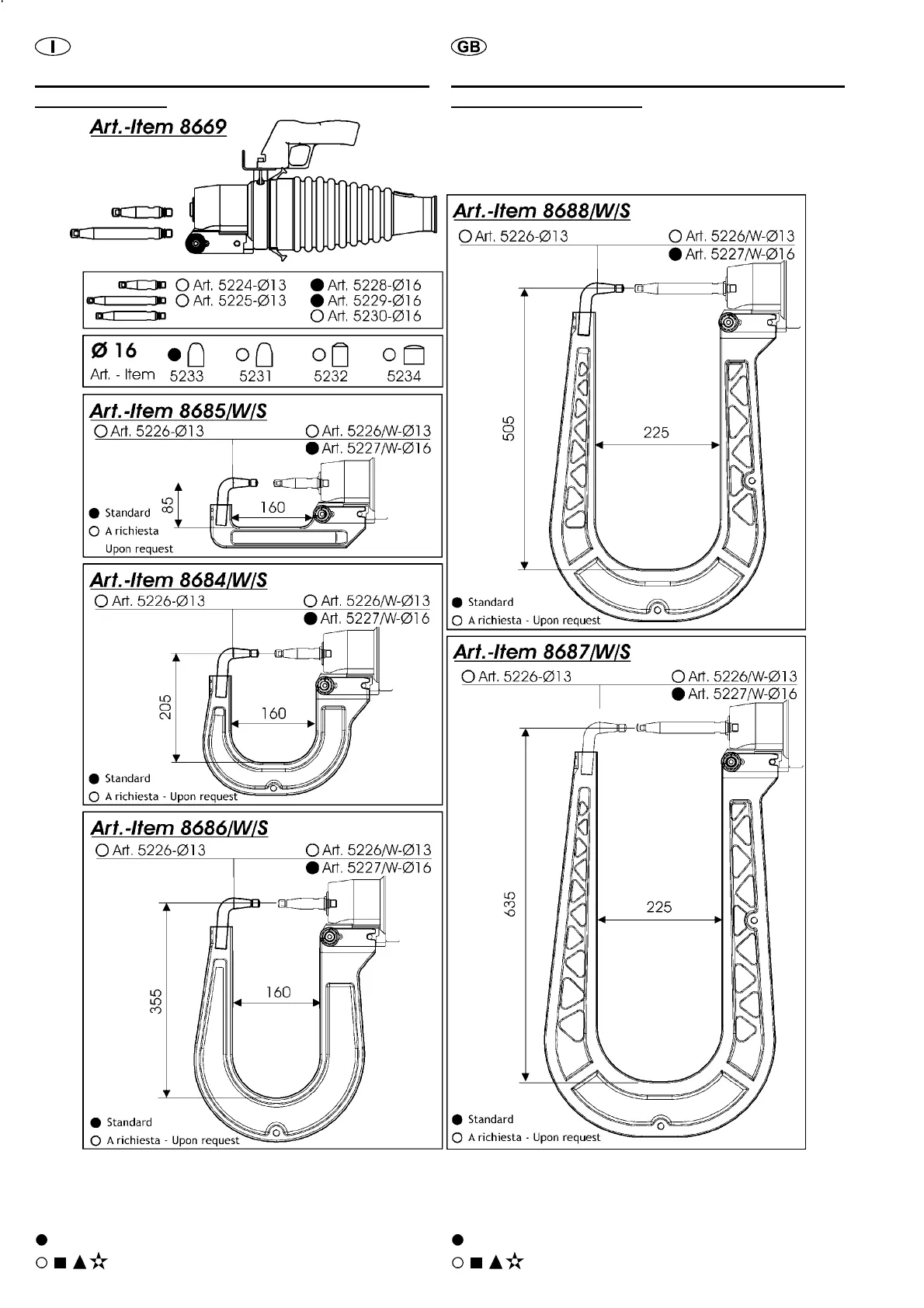

ART. 8669 SELEZIONE DI BRACCI, ELETTRODI,

ED ACCESSORI

I codici seguiti da “W” - “W/S” corrispondono a bracci con elettrodi

raffredati a liquido.

Le pinze art. 8669 si possono utilizzare solo con i cavi art. 3455

- 2,4 m (standard) o con qulelli Art. 3457 - 3,0 m (opzionali).

Standard

A richiesta

ARMS, ELECTRODES AND ACCESSORIES

SELECTION ITEM 8669

The part numbers followed by the letter “W” - “W/S” stand for

water-cooled arms with electrodes.

You can use guns item nr. 8669 only with cables item 3455 2,4

m (standard) or with cables item 3457 3,0m (optional).

Standard

On request
