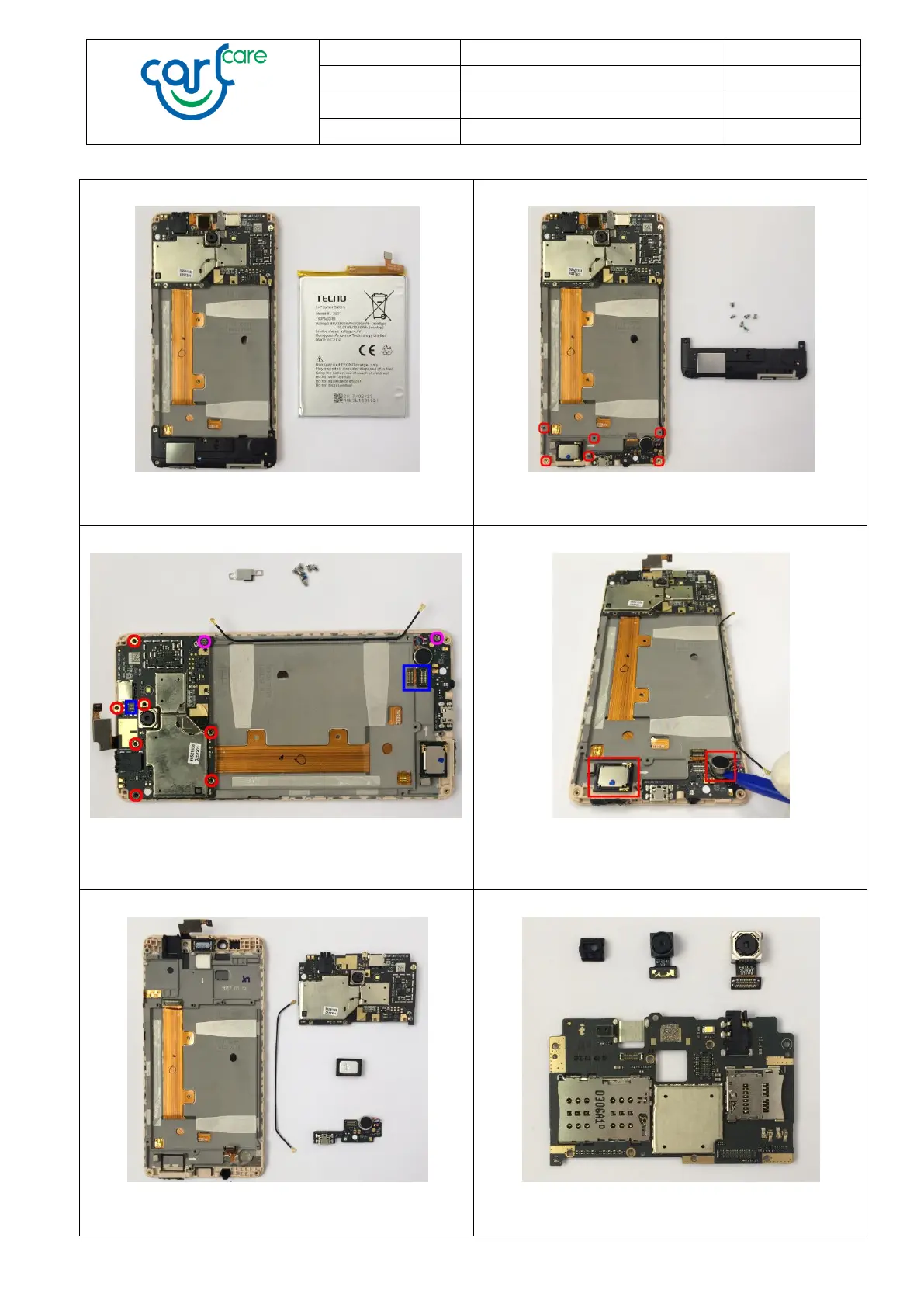

19. Remove the Battery.
20. Unscrew the six M1.4 screws and remove the
Antenna frame as shown.
21. Unscrew the seven M1.4 screws and remove the
CTP steel cover. Open the Sub board FPC, CTP FPC,
and RF cable connectors as shown.
22. Lever open the Speaker and Vibrator as shown.
23. Remove the Main board, Sub board, Speaker and
RF cable.
24. Remove the Front camera, Back camera, and
Proximity sensor rubber from Main board.
