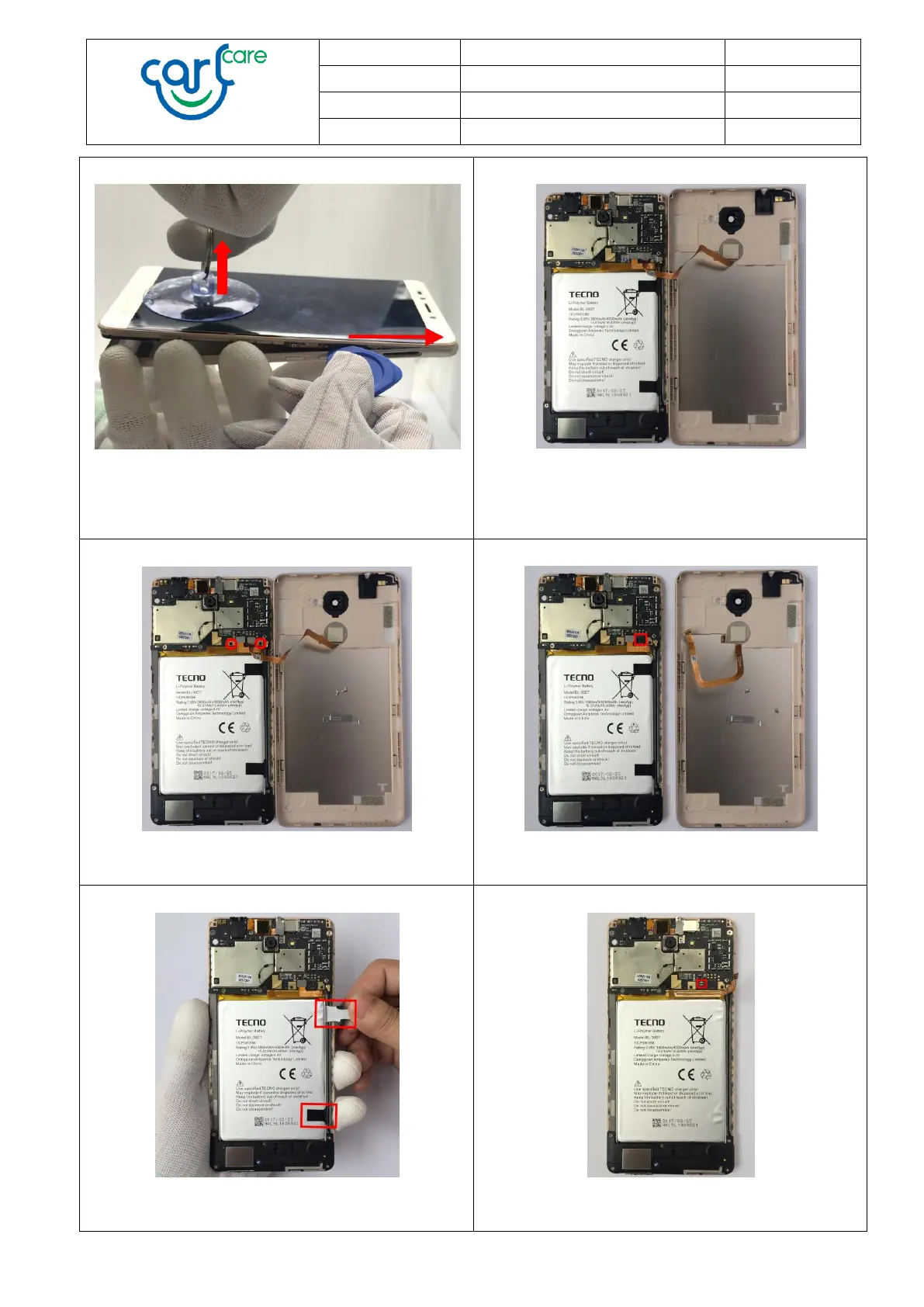

13. Suck the TP by Suction Cup and then hold the
Battery cover with left hand. Pull the Suction Cup up
with right hand. Slide the Disassemble Piece at the
same time as shown.
14. Remove the Battery cover as shown.
15. Unscrew the two M1.4 screws and remove the
Steel cover as shown.
16. Open the Fingerprint module FPC connector and
remove it.
17. Pull out the two tapes straight and slowly one by
one as shown.
18. Open the Battery FPC connector as shown.
