Tecnowind EAGLE - Condenser; Replacing the Condenser

- 37 -
Condenser
1
B
C
A
D
B
2
3
4
Replacing the condenser 16.1
Before carring out any kind of maintenance work, disconnect the appliance from the domestic electrical supply.
Before proceeding with replacement of the condenser, the fol-
lowing steps must be carried out:

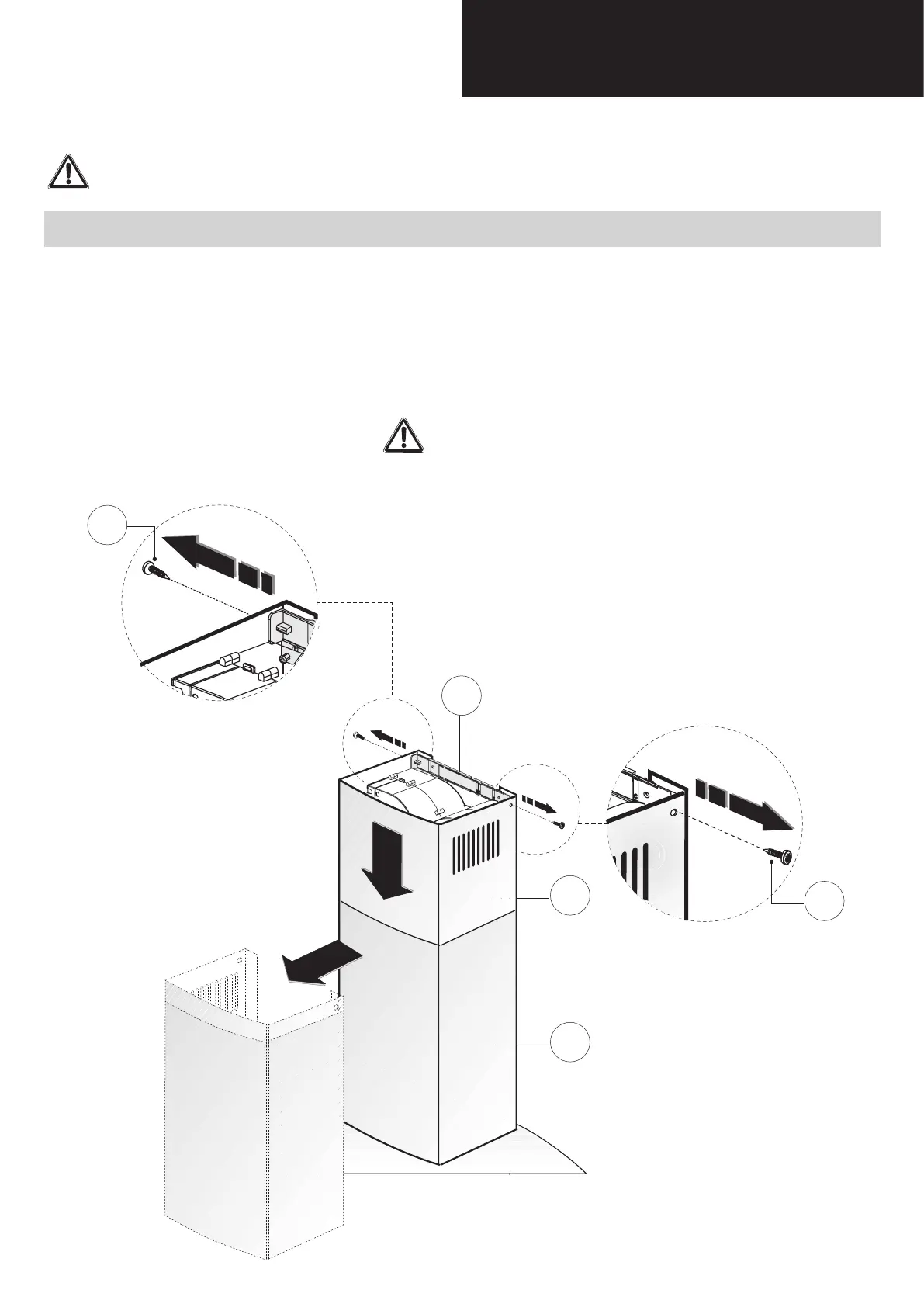

- Remove the 2 srews B fixing the upper decorative duct A to the
wall fixing bracket C.
- Put the uyper decorative duct A inside the lower one D.
- Remove the 2 decorative ducts plaicing them on a level surface.
CAUTION!
Wear gloves during the installation of the product otherwise inju-
ry at ngers could happen by sharp edges.
