- 15 -

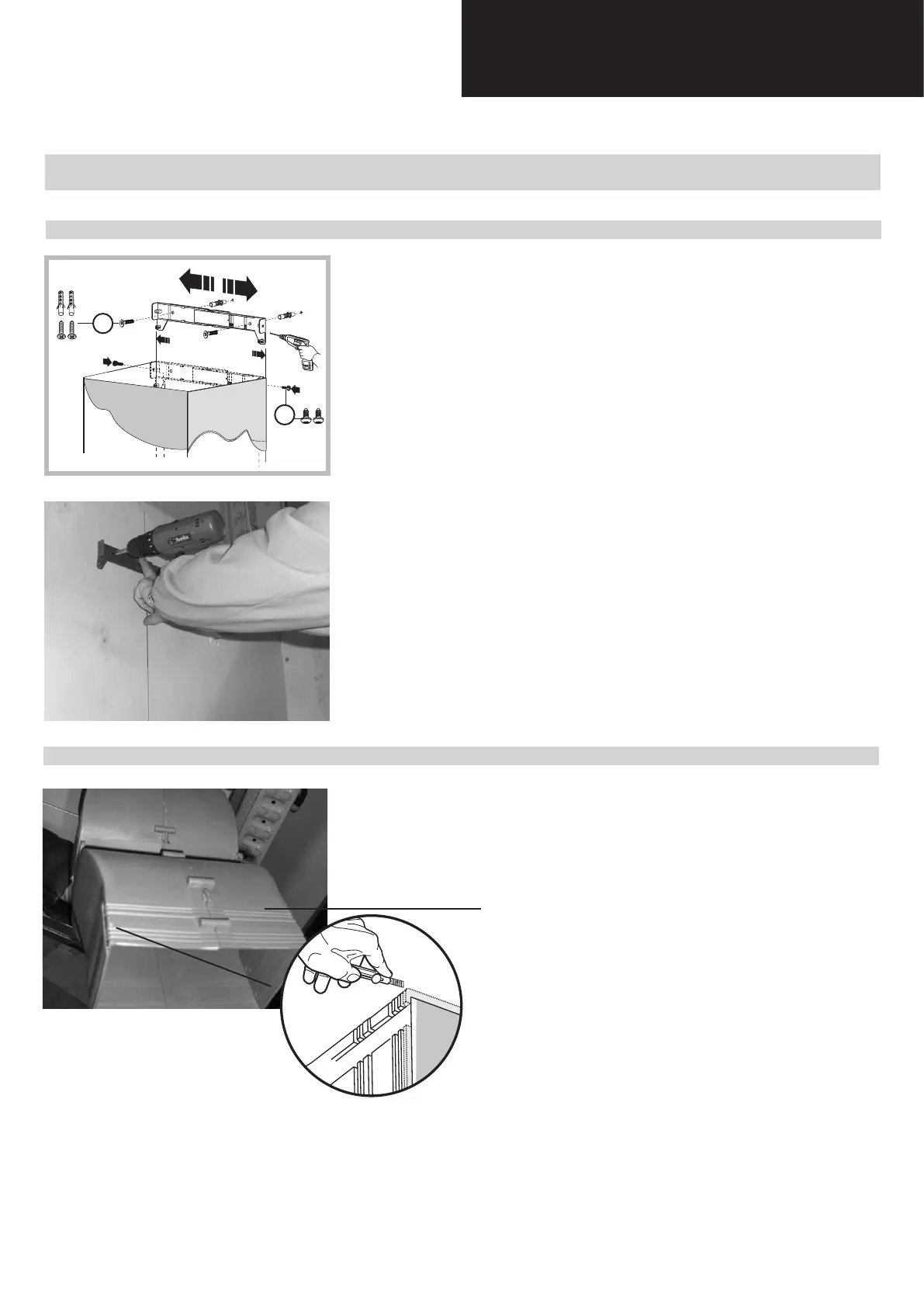

Fixing the decorative telescopic ue 8.2
Installation
Phase 2
Phase 1
- Arrange the electrical power supply within the dimensions of
the decorative ue. If your appliance is to be installed in the duct-
ing version or in the version with external motor, prepare the air
exhaust opening.
- Adjust the width of the support bracket of the upper ue.
- Then x it to the ceiling using the screws A in such a way that it is
in line with your hood and respecting the distance from the ceiling.
Phase 2
- Cut the air deviator D with a cutter, following carefully the first
pre-cut starting from the outer edge on both sides, as indicated
in the picture.
Air deviator D
Phase 1
A
B
