Inating tubeless tyres
(T.I. versions only)
WARNING
Before carrying out the operations described below, always make sure that there is no dirt,
dust or other impurities on the jaws near the air outlet holes.
- Make sure that the wheel is secured to the table top with inside clamping.
- Pull the horizontal arm all away out.
- Lower the vertical bar till it touches the rim.
- Lock the horizontal and vertical arms in the positions described on Fig.20.
- Connect the Doyfe inator chuck on the air hose to the valve stem.
- Hold the tyre with your hands and lift it until there is a slight gap between the lower bead and bottom
edge of the rim in order to close the upper bead and the top of the rim.

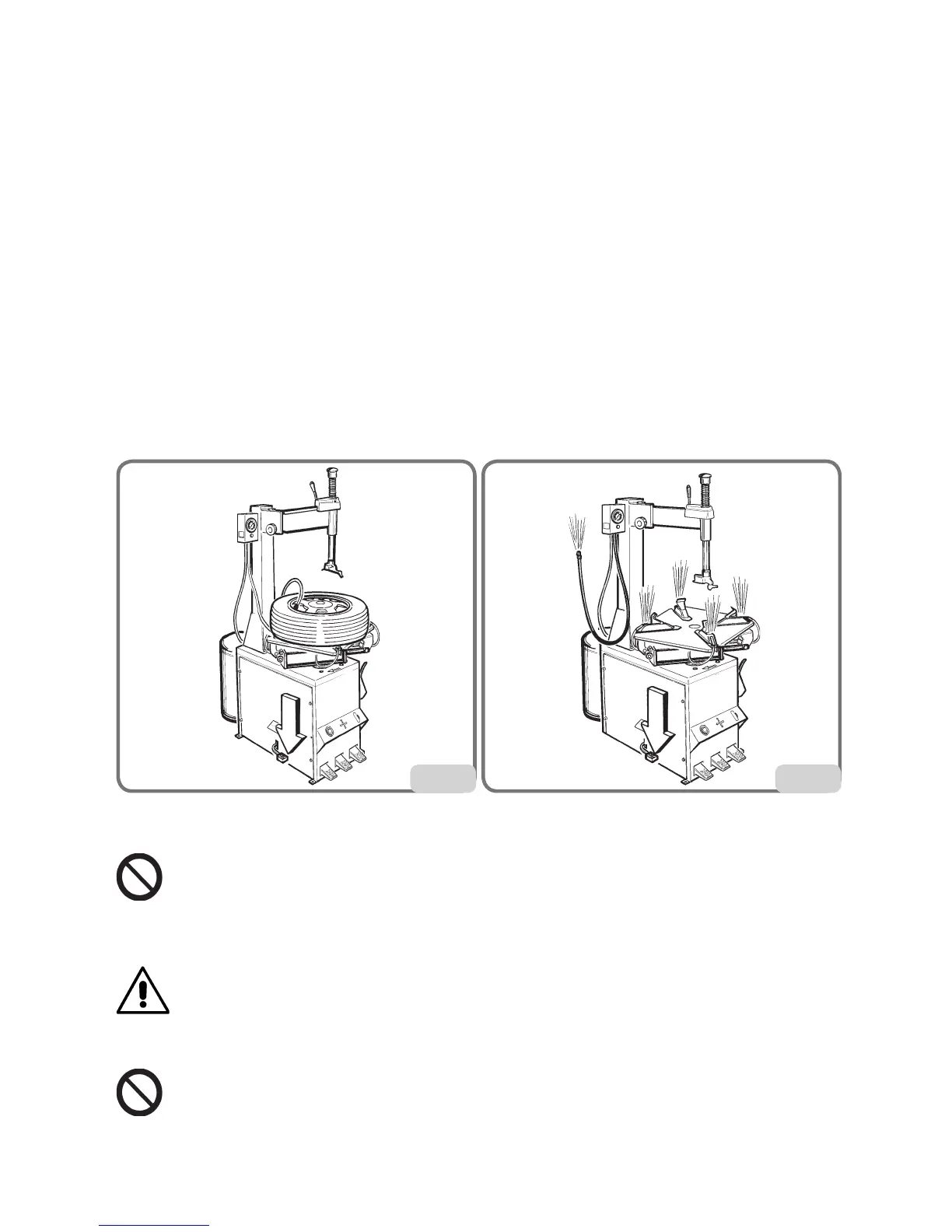

- Press the ination pedal fully down for a short period to the bead seating position (g.20). The tyre
will expand and the beads will seat.
- Continue to press the pedal in the ination position (g.21) until the beads are completely sealed.
Note: to improve the operation of the tubeless tyre ination system the compressed air line pressure
must be between 8/10 bar.
MAINTENANCE
CAUTION
The “Spare parts” handbook does not authorize users to carry out work on the machine with the
exception of those operations expressly described in the user manual. It only enables users to
provide the technical assistance service with precise information in order to minimize delays.
WARNING
TECO declines all liability for claims deriving from the use of non-original spare parts or
accessories.
CAUTION
Any operation intended to modify the setting value of the relief valves or pressure limiter is forbidden.
The manufacturer declines all liability for damage resulting from tampering with these valves.
