TECO E310-201-H User Manual
4
of 1
of 1 rating
95 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
4-2
4.1.2 Operation Instructio
n of the LED keypad
2seconds later or after Enter operation signal
,
Press DSP
to modify the display
Power On
‧
‧
‧
—
—
●
: LED fully Lit
:
LED
flashing
HZ/RPM
HZ/RPM
HZ/RPM
☉
FUN
☉
FUN
FUN
FUN
‧
VOL
T
VOL
T
AMP

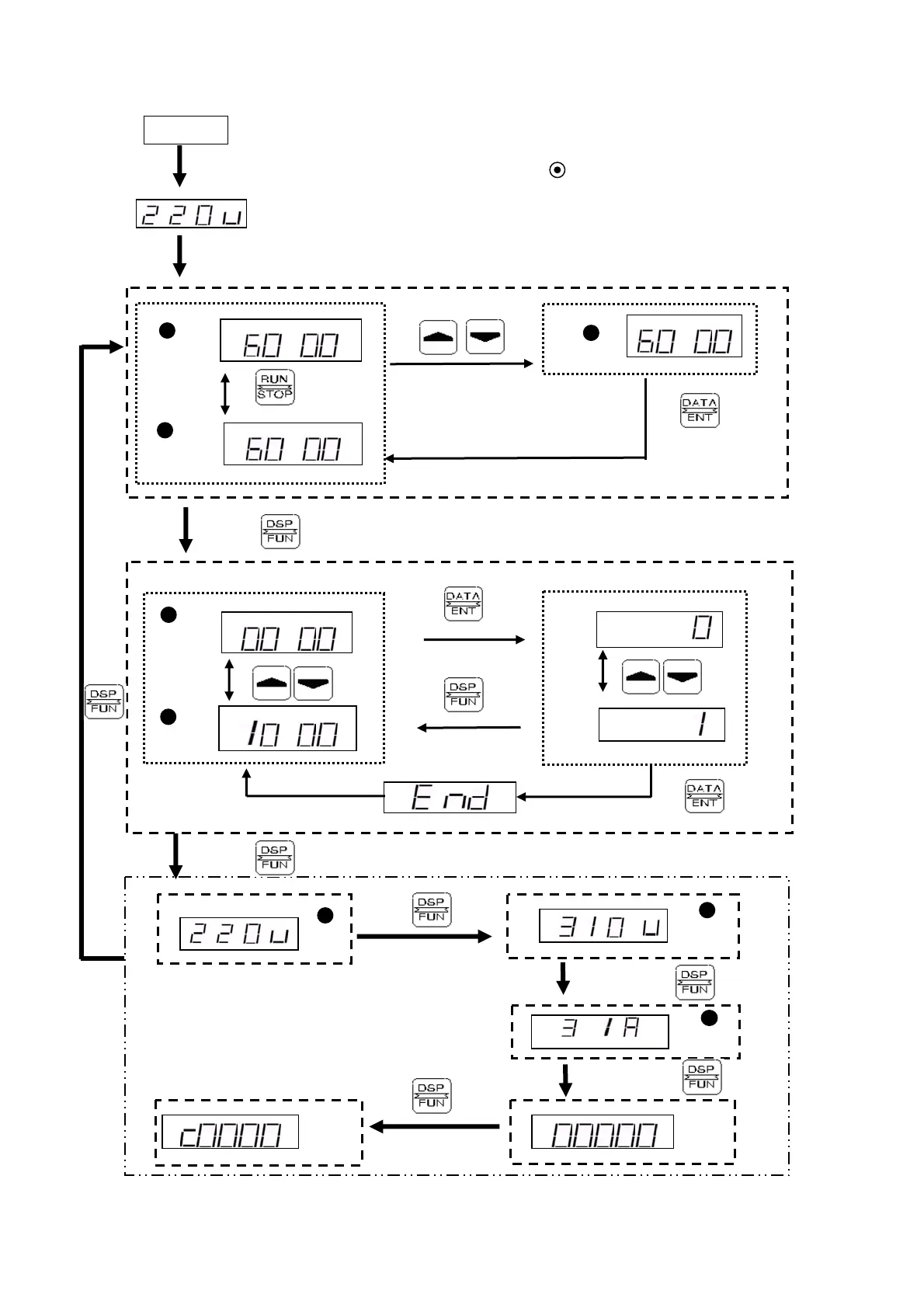

Figure 4-2 LED Keypad Operations Sequence
Counter
PID
Out
p
ut
24
26
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 0 Preface
5
Product Inspection
5
Chapter 1 Safety Precautions
6
Operation Precautions
6
Before Power up
6
During Power up
7
Before Operation
7
During Operation
8
During Maintenance
8
Definition of Model
9
Figure 2-1 Inverter Nameplate
9
Chapter 2 Definition of Model
9
Chapter 3 Ambient Environment and Installation
10
Environment
10
Figure 3-1 Panel and Enclosure Arrangement for E310 Inverters
10
Figure 3-2 Din Rail Mounting of the E310 Inverter
10
Environmental Precautions
11
Electrical Installation
12
Wiring Guidelines
12
Contactor and Circuit Breaker Specification and Wiring
13
Precautions for Peripheral Applications
14
Figure 3-3 Typical Installation Schematic
14
Figure 3-4A) Installation Examples
15
Figure 3-5 Control Cable Requirements
16
Figure 3-6 Grounding Examples
16
Specifications
17
Product Specifications
17
General Specifications
18
Wiring Diagram E310 Series Inverter
20
Figure 3-7 Wiring Diagram
20
Description of Connection Terminals
21
Outline Dimension
22
Figure 3-8 Frame Size 1 Dimensions
22
Figure 3-9 Frame Size 2 Dimensions
23
Chapter 4 Software Index
24
Keypad Description
24
Keypad Display and Operation Instruction
24
Figure 4-1 Keypad Layout
24
Operation Instruction of the LED Keypad
25
Figure 4-2 LED Keypad Operations Sequence
25
Control Mode Selection
26
E310 Programmable Functions List
27
Parameter Function Description
40
Figure 4-4 Frequency Reference Limits
41
Figure 4-5 Terminal Board Drive Operation Modes
42
Figure 4-7 Drive Start/Stop Operation Sequences
43
Figure 4-8 Acceleration and Deceleration Prohibit
45
Figure 4-9 UP/DOWN Original Mode Example
47
Figure 4-10 UP/DOWN with Incremental Steps
47
Figure 4-11Frequency Reached Example
48
Figure 4-12Frequency Within Specified Range Example
49
Figure 4-13 Frequency Outside of Range Example
49
Figure 4-14 Frequency at or below Specified Range Example
50
Figure 4-15 over Torque Detection Example
50
Figure 4-16 Analog Scaling Examples
52
Figure 4-17 Multifunction Analog Output
53
Figure 4-18 KEB Function Diagram
57
Figure 4-19 DC Injection Braking Example
58
Figure 4-20 Custom V/F Settings
58
Figure 4-21 Custom V/F Patterns
59
Figure 4-22 V/F Curve with Torque Boost
60
Figure 4-23 Output Torque Capacity
61
Figure 4-24 Slip Compensation
62
Figure 4-25 Low Frequency Voltage Compensation
62
Figure 4-26 PID Block Diagram
66
Figure 4-27 PID Sleep Wake Mode Diagram
68
Figure 4-28 S-Curve Characteristics
70
Figure 4-29 Single Cycle Auto Run
74
Figure 4-30 Periodic Cycle Auto Run
75
Figure 4-31 Single Cycle Auto Run: Final Step Hold
75
Figure 4-32 AUTO_RUN Cycle with Interrupt
76
Chapter 5 Troubleshooting and Maintenance
77
Error Display and Corrective Action
77
Faults Which Can Not be Recovered Manually
77
Special Conditions
78
Operation Errors
79
General Troubleshooting
80
Quick Troubleshooting of E310
81
Figure 5-1 E310 Fault Display and Troubleshooting Flow Chart
82
Figure 5-2 OC, OL Fault Display Flow Chart
83
Figure 5-3 OV, LV Fault Display Flow Chart
84
Figure 5-4 Motor RUN Failure Flow Chart
85
Figure 5-5 Motor Overheat Troubleshooting Flow Chart
86
Figure 5-6 Motor Instability Troubleshooting Flow Chart
86
Routine and Periodic Inspection
87
Maintenance and Inspection
88
Reactor Specification at Input Side
89
Braking Unit and Braking Resistor
89
Chapter 6 Peripheral Components
89
Digital Operator and Extension Cable
90
Figure 6-1 Digital Operator Extension Cable
90
4
Based on 1 rating
