4-26

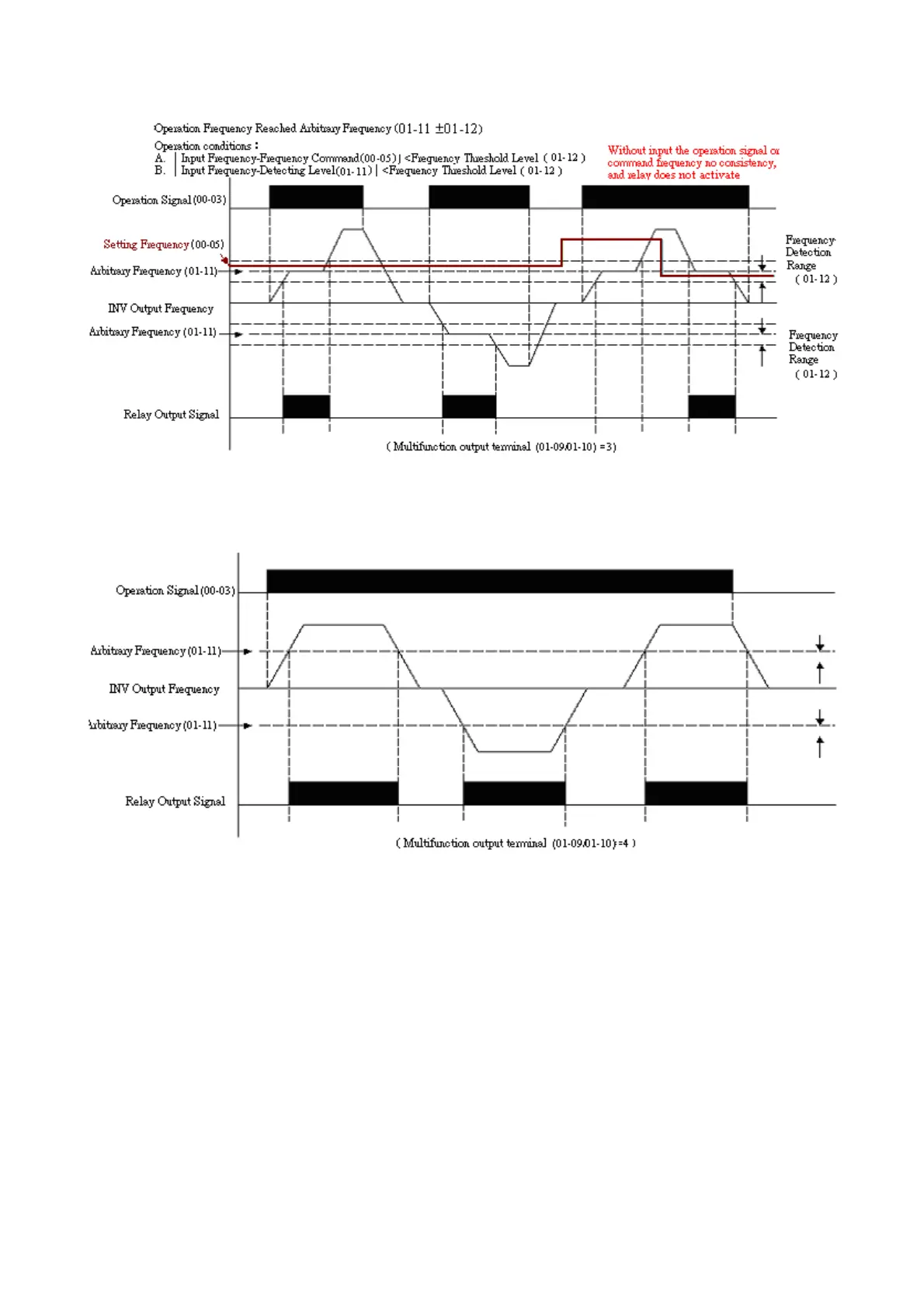

01-09/10= 3:
Arbitrary frequency consistency Fout = 01-11  01-12
01-09/10= 4 : Frequency detection Fout > 01-11
Figure 4-12 Frequency within specified range example
Figure 4-13 Frequency outside of range example
