TECO E310-201-H User Manual

4-30
2. FM+ Function Description
Note: 02-13～02-16, refer to Figure 4-19 Analog scaling examples.
Group3- preset Frequency function group
03-00 : Preset Speed Control mode Selection
=0 : common Is uniform time( Acc1/Dec1or Acc2/Dec2)
=1 : Special (is single time Acc0/Dec0 ~ Acc7/Dec7)
Setting frequency 03-01~03-08 :
Preset Speed 0 ~ Preset Speed 7(Hz) : =0.00 ~ 400.00
Setting time 03-17~03-32 :
Preset Speed 0~7 Acceleration time(second) : =0.1 ~ 3600.0
Preset Speed 0~7 Deceleration time(second) : =0.1 ~ 3600.0
1. When 03-00 is set to 0, Acc-time (Dec-time) is determined by the 00-09/00-10(10-05/10-06).
2. When03-00 is set to 1, Acc-time (Dec-time) is determined by the03-01~03-08.
Function Description：
1) Formula for calculating acceleration and deceleration time：The denominator is base on the
rated frequency of motor (06-04).
Acctime parameter preset frequency
Actual Acctime
06 04



Dectime parameter
Actual Dectime
06 04



pr eset f r equency
Example: 06-04=50hz (motor Rated frequency), 03-02=10hz (preset speed),
03-19=5s (Acc time), 03-20=20s (Dec-time),
Preset speed 1 Actual Acc time=
03 19 10( )
1( )
06 04
hz
s



Preset speed 1 Actual Dec time =
03 20 10( )
4( )
06 04
hz
s




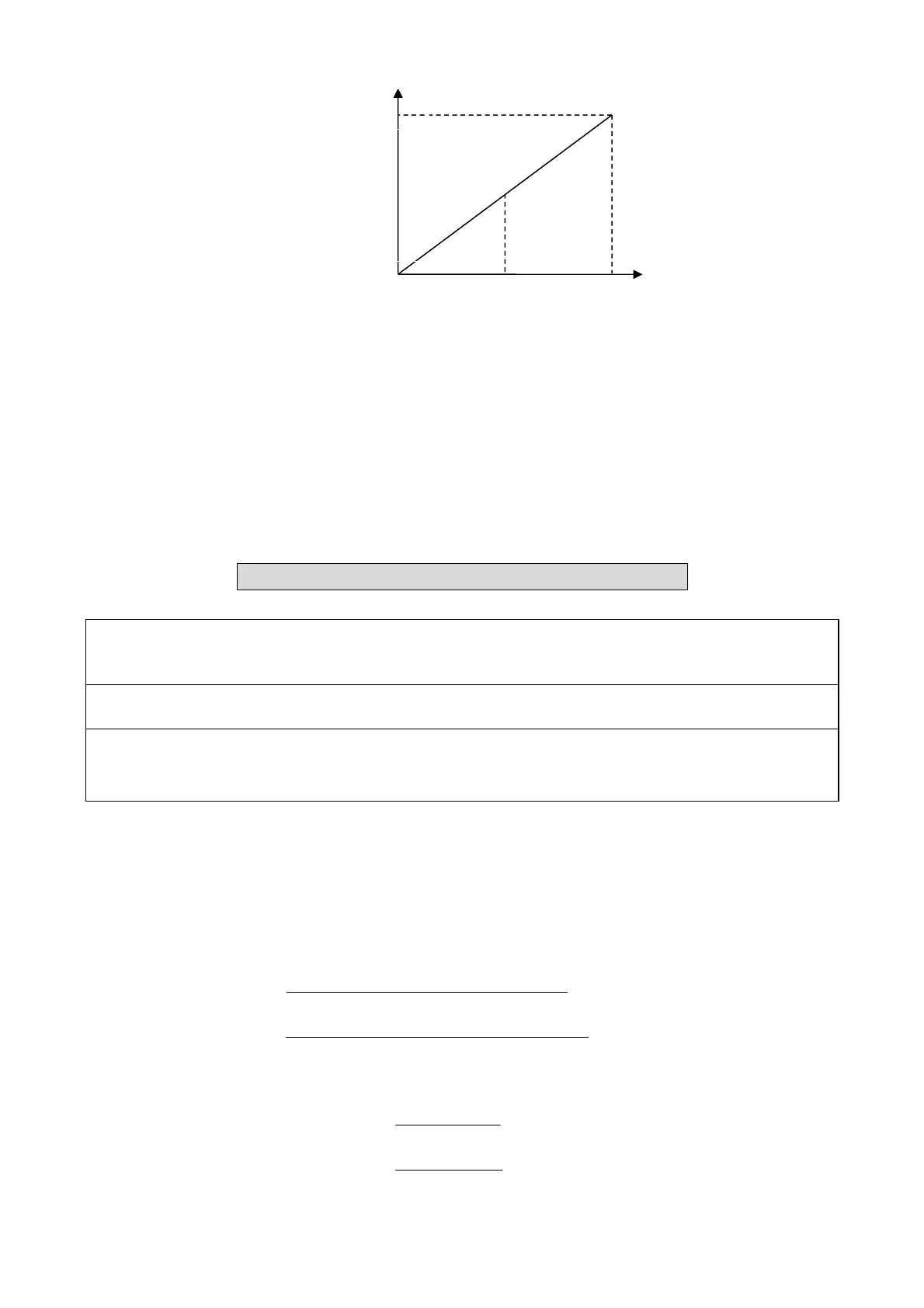

0
10V
2-12=0 Output Frequency Xmax= upper frequency limit
=1 frequency setting upper frequency limit
=2 Output Voltage Motor Rated Voltage (VAC)
=3 DC Bus Voltage 220V: 0~400V
440V: 0~800V
=4 Motor Current 2 times rated current of inverter
Xmax
Figure 4-17 Multifunction analog output
