4-18
00-07 : Frequency Upper limit(Hz) 0.01 ～ 400.00
00-08 : Frequency Lower limit(Hz) 0.01 ～ 399.99
※
Note: When 00-08 = 0 Hz and frequency command is 0 Hz; the inverter will stop at 0 speed.
When 00-08 > 0 Hz and frequency command
≦
00-08, the inverter will output the
00-08 preset value.
00-09 : Acceleration time 1 (s) =0.1 ～ 3600.0
00-10 : Deceleration time 1 (s) =0.1 ～ 3600.0
1. Formula for calculating acceleration and deceleration time： The denominator is base on the
rated frequency of motor.
0 or preset frequency
06 04
0- 09( 10- 05)
accel er at i on t i me
0
deceleration time
06 04
0- 10（ or 10- 06） pr eset f r equency
2. When 01-00～01-05 is set 07 (the second acceleration and deceleration time)，the first
acceleration/ deceleration or the second acceleration/ deceleration/ will be set by OFF or
ON the external input terminal.
3. When 01-00～01-05 is set 05/06 (Jog)，Jog run is controlled by external terminals.
The acceleration and deceleration action will be at Jog acceleration and deceleration time.
The list setting：
Function
preset value
Acc/ Dec time 1
(00-09/0-10)
Acc/ Dec time 2
(10-05/10-06)
JOG Acc/Dec time
(00-13/00-14)
00-05/00-06
determines the output
frequency
00-05/00-06
determines the
output frequency
Run at 00-12
Jog frequency
01-00 ~ 01-05=05/06
Jog command
Off Off On
01-00 ～ 01-05=07
Toggle Acc/Dec time
Off On Off
Internal frequency
00-07 (upper frequency limit)
00-08 (lower frequency
(Note)

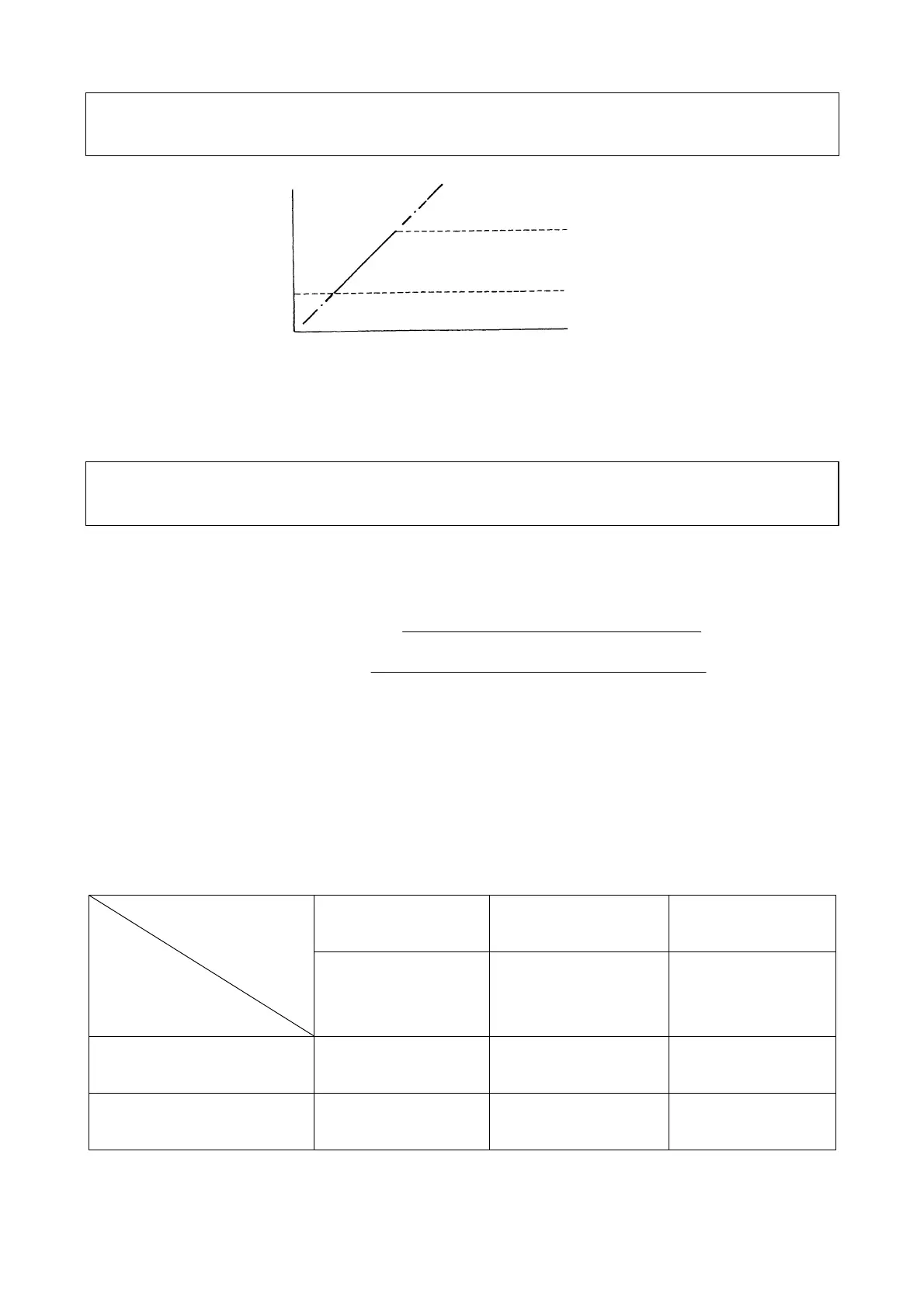

Figure 4-4 Frequency reference limits
