17
2-2-1 CN1 控制信號端子說明
控制信號端子說明控制信號端子說明
控制信號端子說明

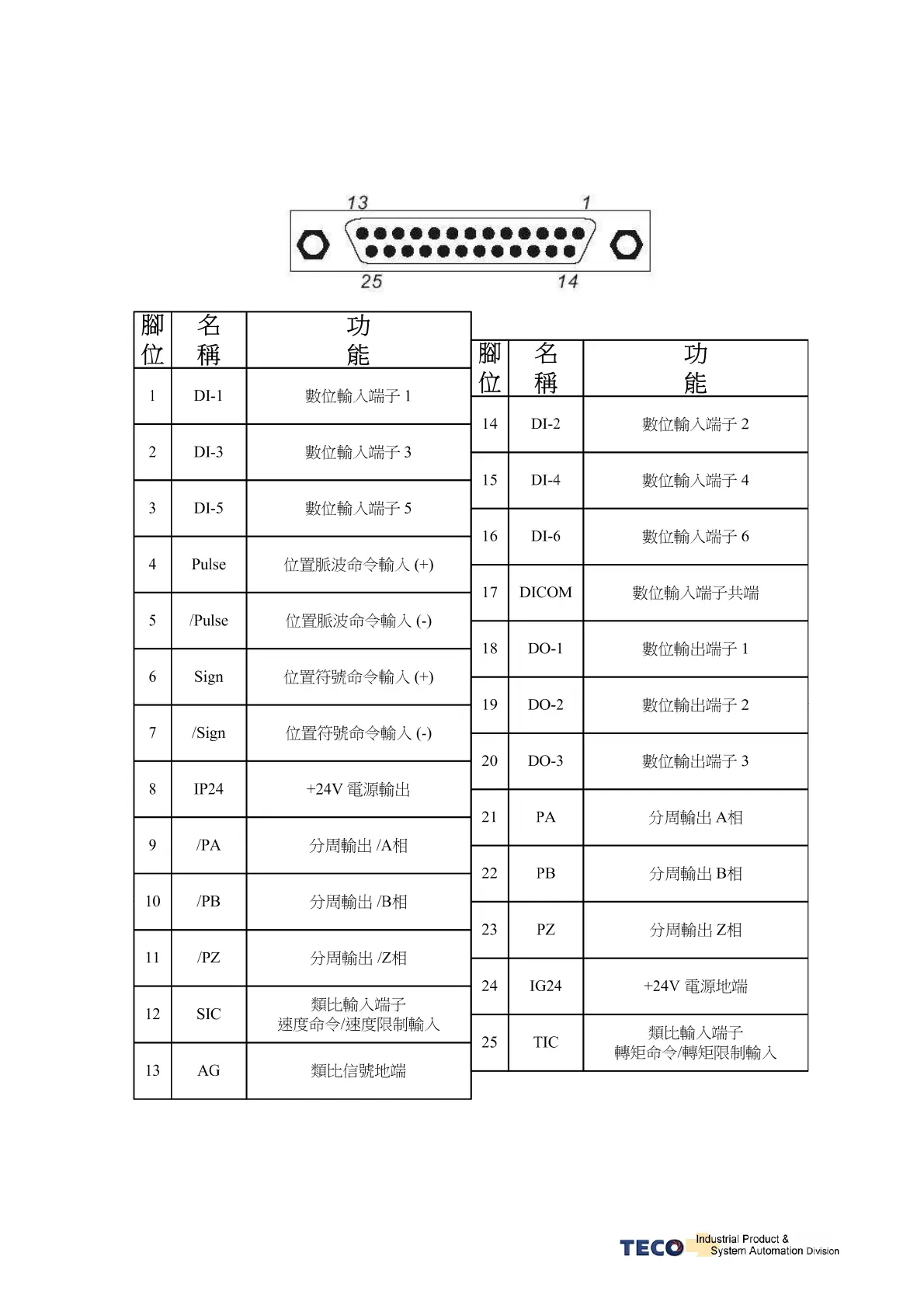

CN1 端子配置圖：
註
註註
註：
：：
：
1.
數位輸入/輸出端子(DI/DO)可任意規劃機能，詳細設定方式請參照 Hn 參數內容。
2. 數位輸入/輸出端子(DI/DO)信號線之屏蔽線，應與連接器的外殼相接。
