4.3

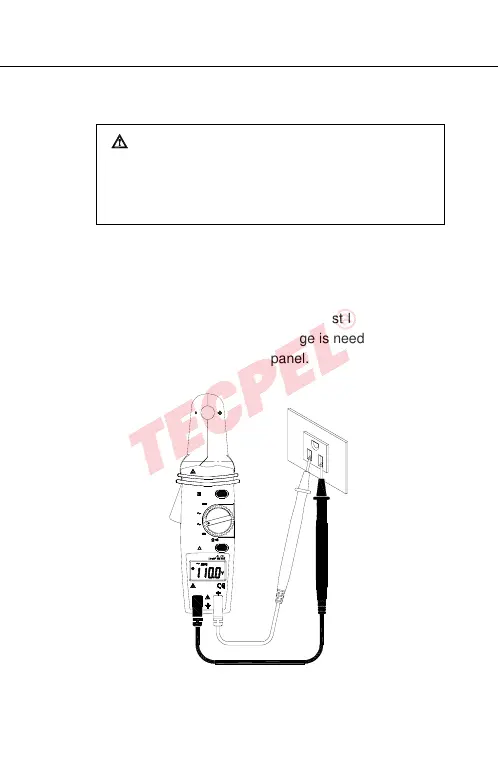

ACV Measurement:
WARNING!
Maximum Input Voltage is 600V AC/DC. Do not attempt to
Take any voltage measurement that may exceed this
maximum to avoid Electrical shock hazard and/or damage
to this instrument.
Switch the function selector to V
~
range.
Connect red test lead to “+” terminal and black one to the
“COM“ terminal.
Measure the voltage by touching the test lead tips to the
test circuit where the value of voltage is needed.
Read the result from the LCD panel.
