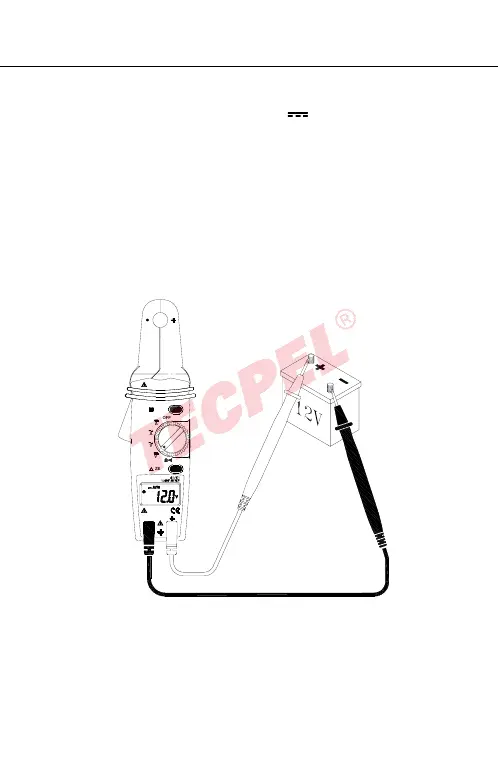

4.4 DCV measurement:
Switch the function selector to V range.
Connect red test lead to “+” terminal and black one to the
“ COM “ terminal.
Measure the voltage by touching the test lead tips to the
test circuit where the value of voltage is needed.
Read the result from the LCD panel.
HOLD
600V CAT II
ZERO
A
V
V
A
OFF
100A
COM
300V CAT III
600V CAT II
600V
