Teeter DEX II - Assembly Steps; Assemble Base & Leg Feet; Attach Legs to Base

STEP 1
Assemble Base & Leg Feet

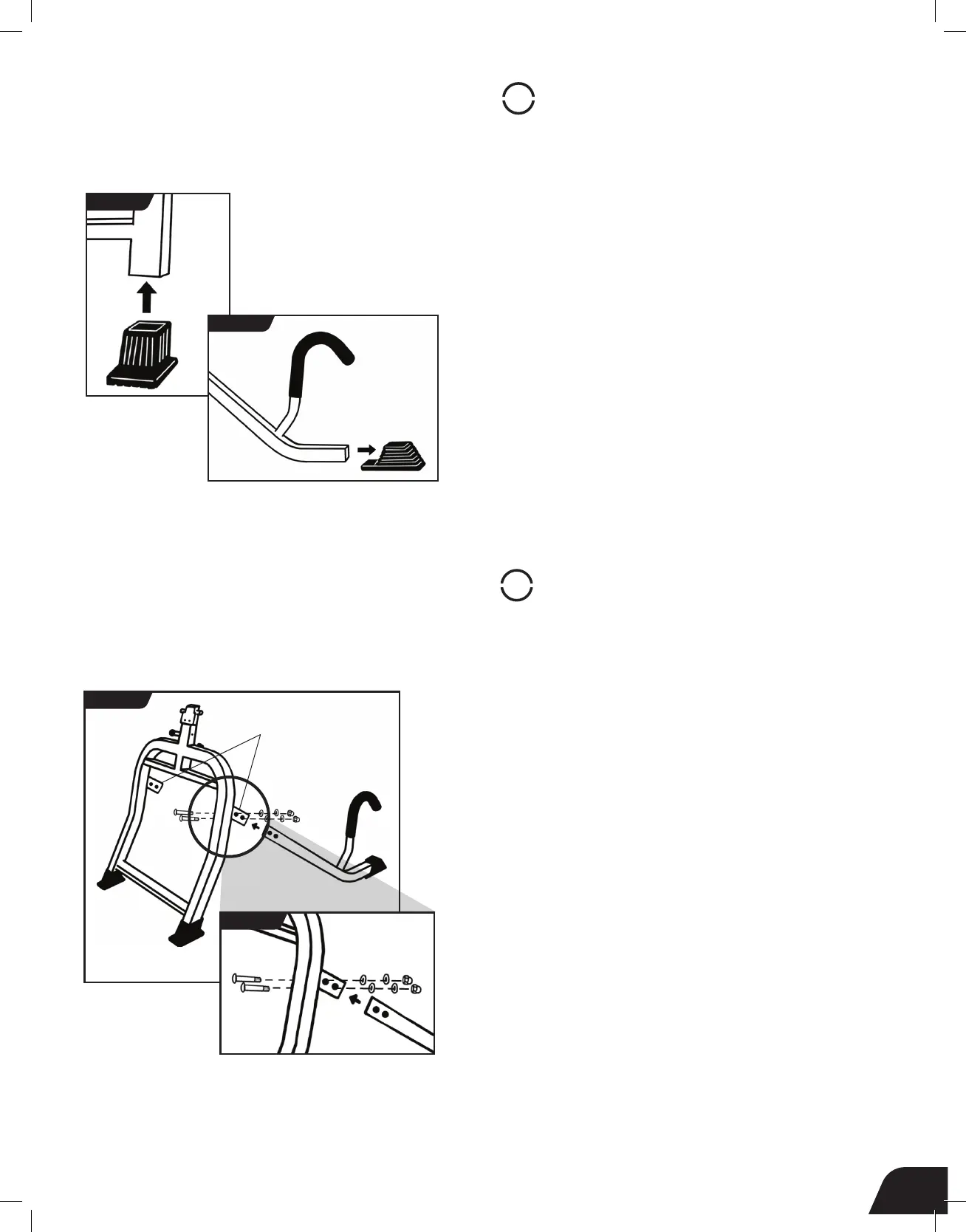

• Slide the Base Feet onto the end of the Base Frame (Figure 1a).
• Slide the Leg Feet onto the end of the Legs (Figure 1b).
• Push firmly on all four feet to ensure they are fully mounted.
FIGURE 1a
FIGURE 1b
STEP 2
Attach Legs to Base
• Locate the Base Assembly Hardware Kit (D11019).
• With the Cane Shaped Handle facing upward, insert one Leg into the
Leg Housing of the Base Frame until the two bolt holes align
(Figure 2a).
• Insert two Threaded Bolts from the inside of the Leg Housing through
the holes. Secure on the outside of the Leg Housing using the Flat
Washer, Lock Washer and Bolt Cap, in that order. Tighten with the
Wrenches provided (Figure 2b).
• Repeat with the other Leg.
Leg Housings
FIGURE 2a
FIGURE 2b
