STEP 3
Assemble Lap Pad to Lap Pad Frame
• Locate the Lap Pad Assembly Hardware Kit (D11020). In this step, you
will only use the four (4) small screws.
• With the Lap Pad face down, rest the Lap Pad Frame on top of the
Lap Pad. Make sure the Traction Handles are pointing up and the Leg
Support Shaft Housing rests inside the indented area of the Lap Pad.

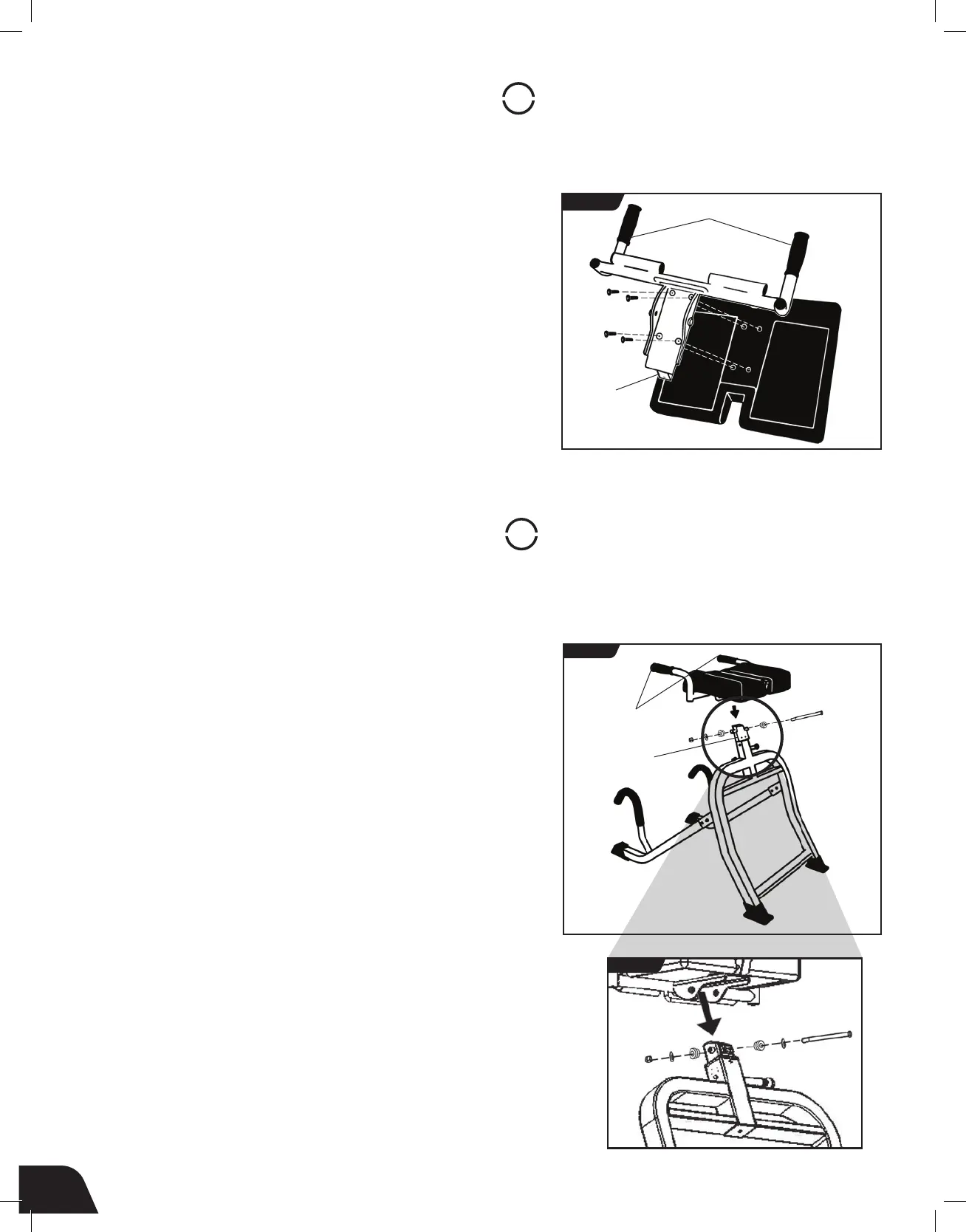

Align the screw holes (Figure 3).
• Insert the screws through the holes and tighten with the Screwdriver.
FIGURE 4a
FIGURE 3
• You will use the remainder of the Lap Pad Hardware Kit (D11020) from
Step 3.
• Thread the Hex Bolt through a Flat Washer and Spacer. Make sure the
small end of the Spacer faces away from the head end of the Hex Bolt.
• With the Traction Handles facing the rear of the Base Assembly, place
the Lap Pad Assembly over the Chrome Shaft of the Base Frame and
align the holes (Figure 4a & 4b).
• Insert the Hex Bolt with Flat Washer and Spacer through the holes to
secure the Lap Pad Assembly to the Chrome Shaft.
• Thread the remaining Spacer (with the small end facing the Chrome
Shaft) and Flat Washer onto the end of the Hex Bolt. Fasten the Hex
Nut using the wrenches provided (Figure 4b).
• Make sure the fasteners are securely tightened and the Lap Pad
rotates smoothly.
STEP 4
Secure Lap Pad Assembly to Base Assembly
Traction Handles
Chrome Shaft
REAR
FRONT
Traction Handles
Leg Support
Housing
FIGURE 4b
