11.1 PROBES CONNECTION
The probes shall be mounted with the bulb upwards to prevent damages due to casual liquid infiltration. It
is recommended to place the thermostat probe away from air streams to correctly measure the average
room temperature. Place the defrost termination probe among the evaporator fins in the coldest place,
where most ice is formed, far from heaters and from the warmest place during defrost, to prevent
premature defrost termination.

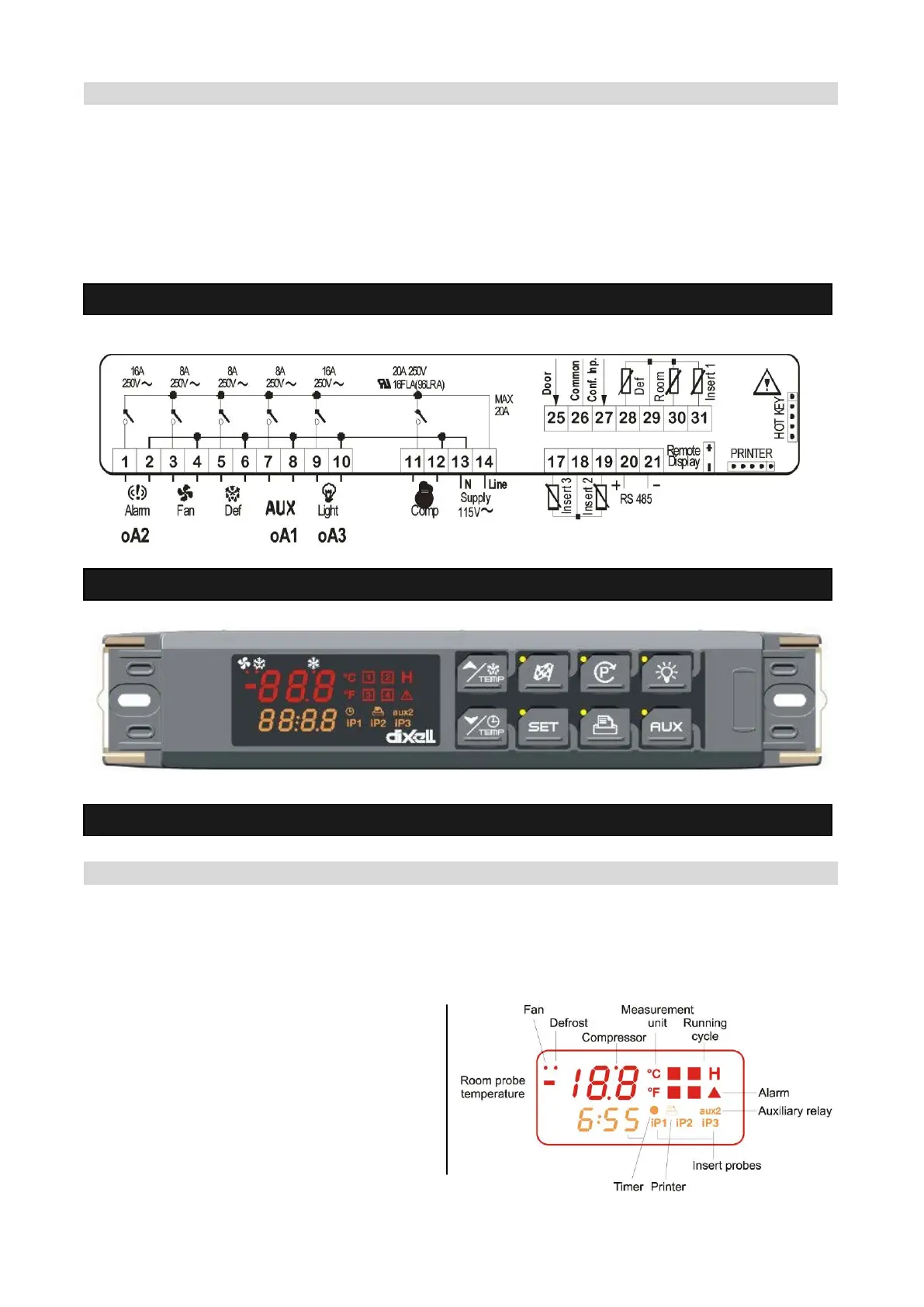

12. Connections
13. Frontal panel
14. QUICK START
14.1 DISPLAY
The upper display shows the temperature of the room probe.
The lower display shows the temperature of the inserts probe or the count down timer. To pass to the
one insert probe to the another one use the DOWN key.
DISPLAY
Temperature.
Timer or insert probe
Alarm and status icons.
If an icon or LED is on, the correspondent
Function is enabled.
If an icon or LED is flashing, the correspondent
function is delayed.
