● Push the filter pack back into the
filter housing. Make sure that the
filter elements are inserted in the
correct order. Then reconnect the
measuring hose at the
intermediate frame.
The seals of the
particle filter, the activated
carbon cassette and the
intermediate frame must always
be on the top.
● Elevate the lifting device by turning
the clamping screw so that the
entire filter pack is pressed tightly
against the above housing.
● Close the service door.
7.8.2. Replacing the activated carbon cassette
● Open the service door of the activated carbon housing (see chapter 2.1).

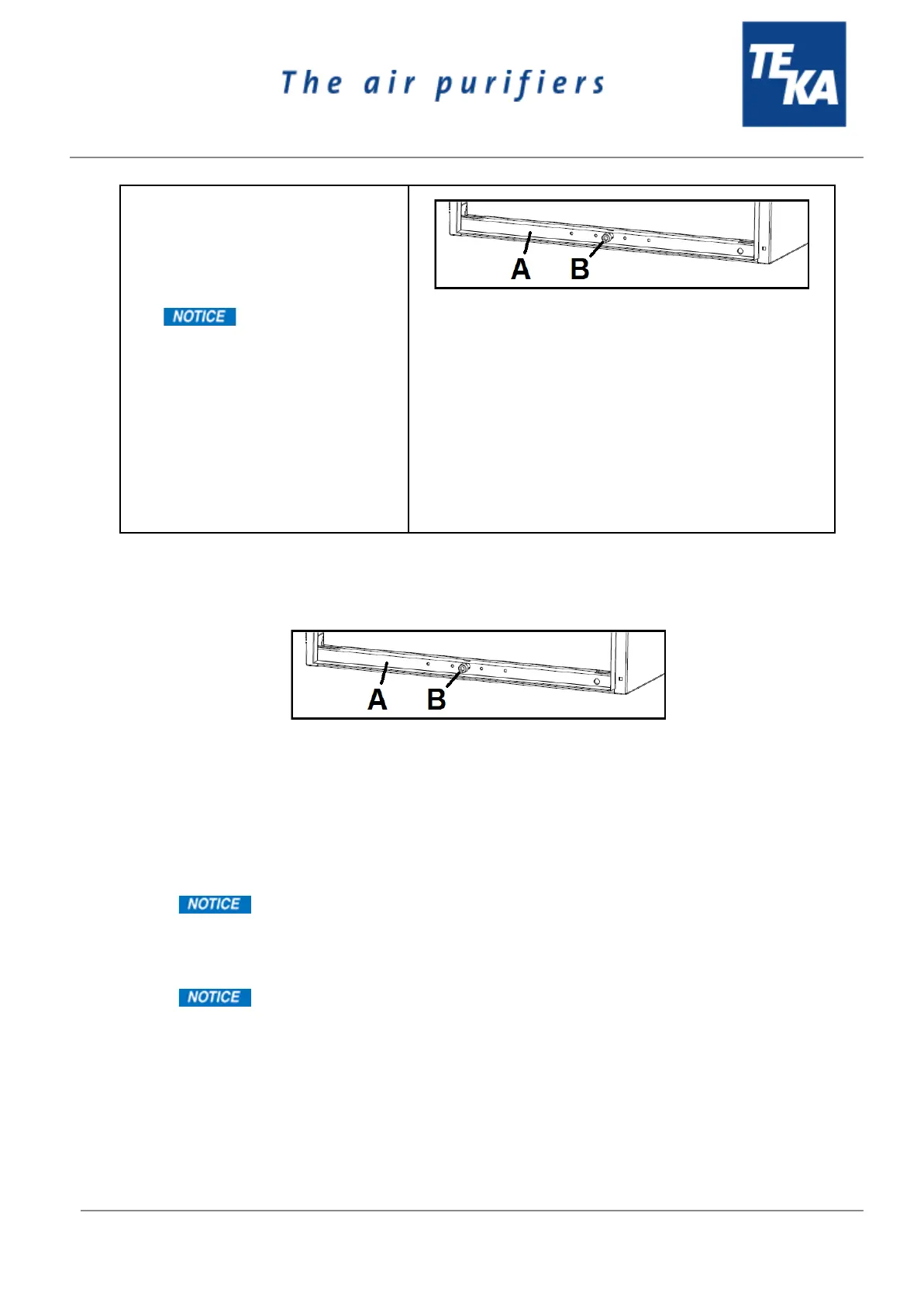

● Lower the lifting device (A) by turning the clamping screw (B).
● Carefully pull the entire filter pack, incl. the activated carbon cassette (see chapter 2.1), out of
the housing. Before doing so the projecting measuring hose has to be separated from the
intermediate frame.
● Replace the activated carbon cassette.
Only use TEKA spare filters. Otherwise the proper functioning of the unit is
not guaranteed.
● Push the filter pack back into the filter housing. Make sure that the filter elements are inserted in
the correct order. Then reconnect the measuring hose at the intermediate frame.
The seals of the particle filter, the activated carbon cassette and the
intermediate frame must always be on the top.
● Elevate the lifting device by turning the clamping screw so that the entire filter pack is pressed
tightly against the above housing.
● Close the service door.
BA_LFE-101-201-301_220114_EN
