D ESCRIPTION OF S YSTEM C OMPONENTS
This section provides a brief overview and description of the main
components of a ClearPath-SC system. See the ClearPath-SC User Manual
for more information and specifications on system components.

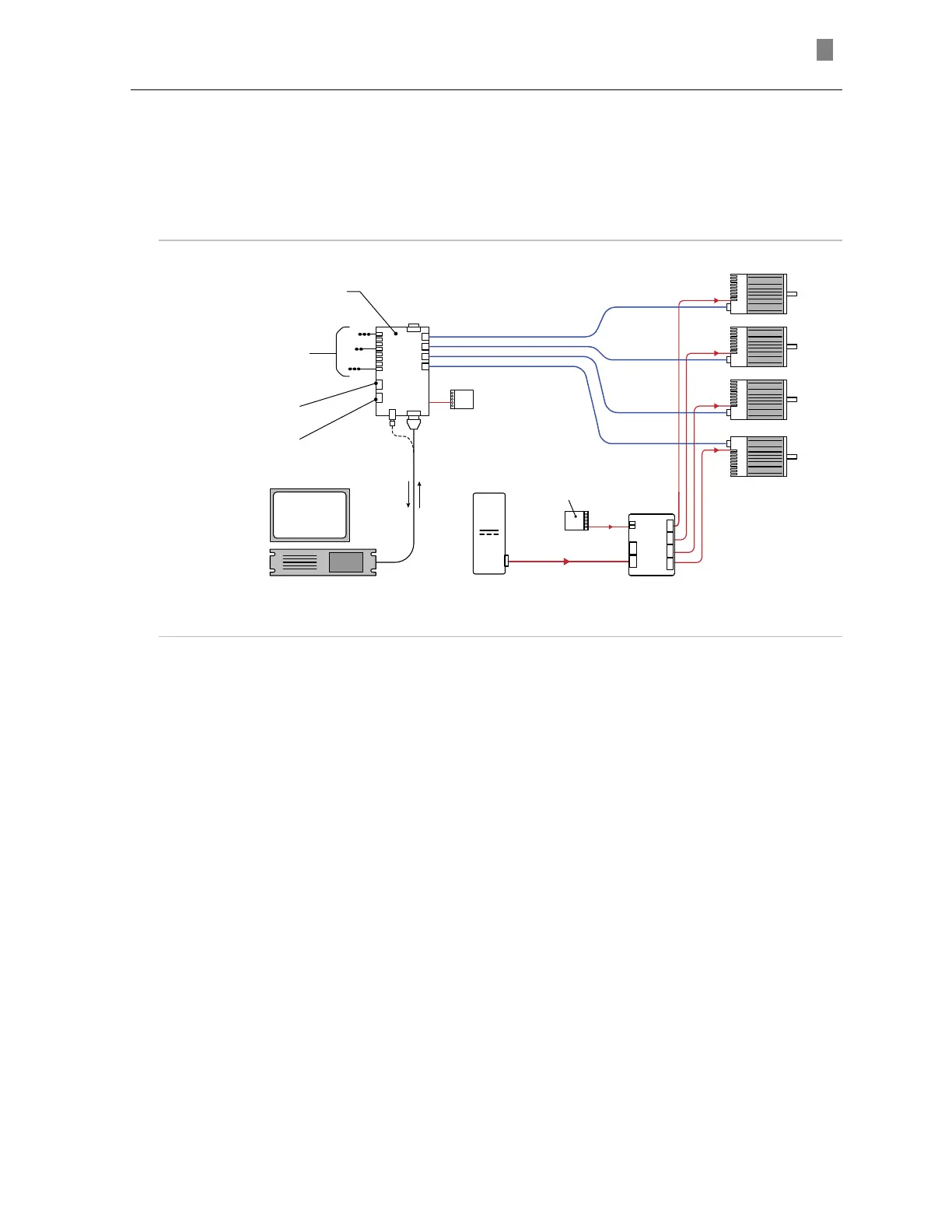

S YSTEM D IAGRAM
Windows
(or Linux)
SC Hub
Power Hub
ClearPath-SC
Motors
Power-off brake
control connector
Global Stop input
connector
RS-232
USB 2.0
Hi-speed
Application PC
Inputs from motion
related sensors
(connected through to
each CPM-SC)
Distributes bus
power and aux.
“logic backup”
power to motors
DC Bus
Power Supply
(24-75VDC)
24VDC Supply
24VDC Supply
A 4-axis ClearPath-SC System
SC4-HUB
The SC4-HUB connects your computer and I/O devices to your ClearPath-
SC motors. The SC Hub routes communication signals, passes
sensor/switch inputs to the motors, includes 2 power-off brake outputs ,
and one Global Stop (e-stop) input. A maximum of 4 SC Hubs can be
linked together to create systems of up to 16 axes per port, and up to 3
ports per computer, allowing you to create systems with as many as 48
motion axes.
DC B US P OWER S UPPLY
The DC Bus Power Supply provides main power to your ClearPath-SC
motors. A Teknic IPC-5, 75VDC supply is shown above, but ClearPath-SC
motors can be powered from other supplies in the 24–75VDC range.
POWER4-HUB
The POWER4-HUB distributes DC bus power and backup logic power to
as many as four ClearPath-SC motors per hub. If DC bus power is
suddenly lost, the Power Hub will automatically switch to auxiliary logic
power to maintain uninterrupted power to the processor, memory, and
communication circuits. Multiple Power Hubs can be chained together to
support larger systems.
