3.4. Metering functions of Power Analyzer
3.4.1. Screen involving power meter

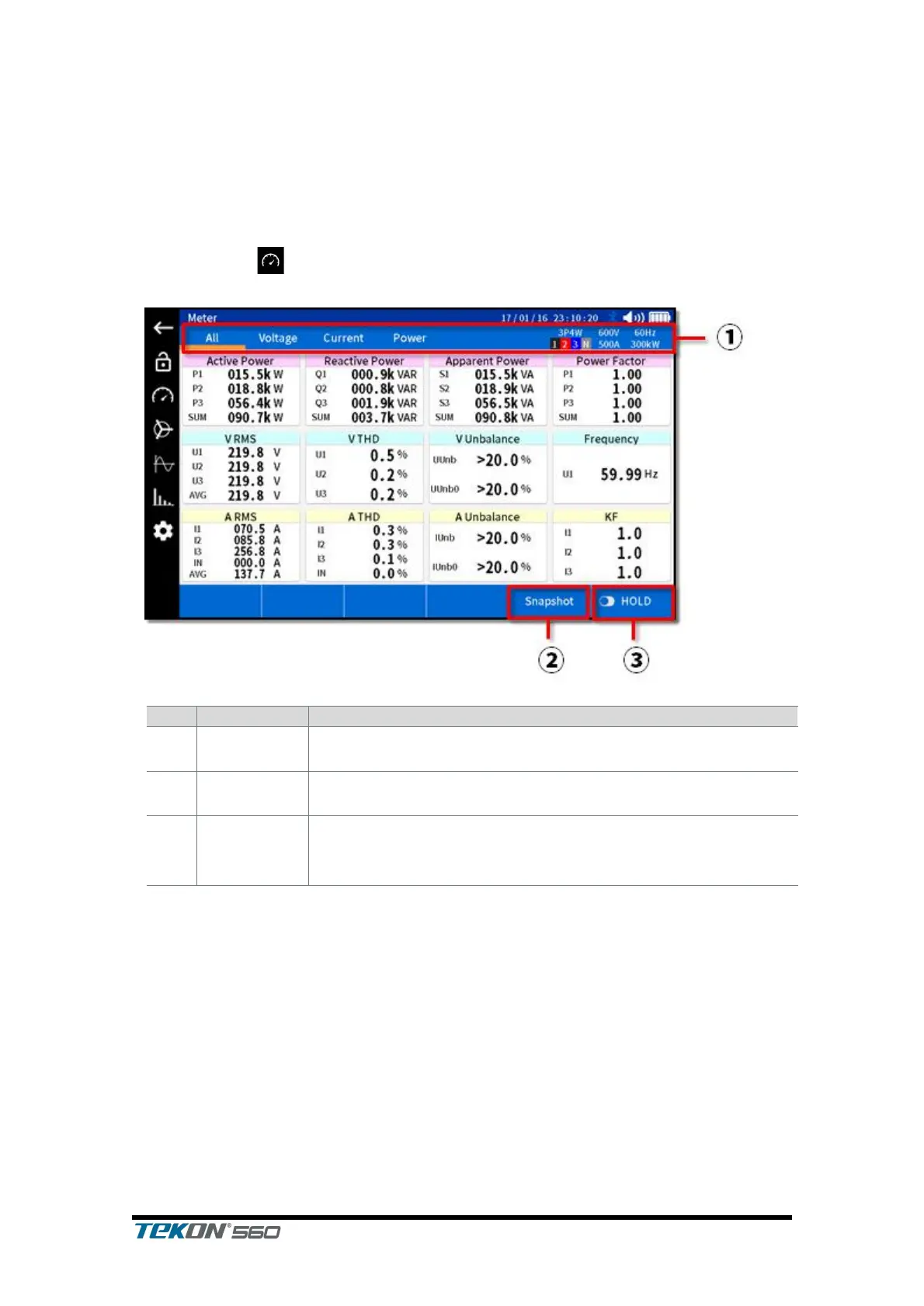

This is a screen enabled to check instantaneous power measurement values.
Tap the icon on the left to pop you into this screen. Then, various power
parameters are measured and displayed.
Select to go into the screen you wish among four modes;
<All, Voltage, Current, Power>
Used to save the currently displayed image to SD card in
bmp file
Used to ‘hold’ the currently displayed measurement value;
press once more to release Hold in which case it is
updated to the latest measurement value.
To Next Page
