3.6. Waveforms functions of Power Analyzer
3.6.1. Waveforms functions of Power Analyzer

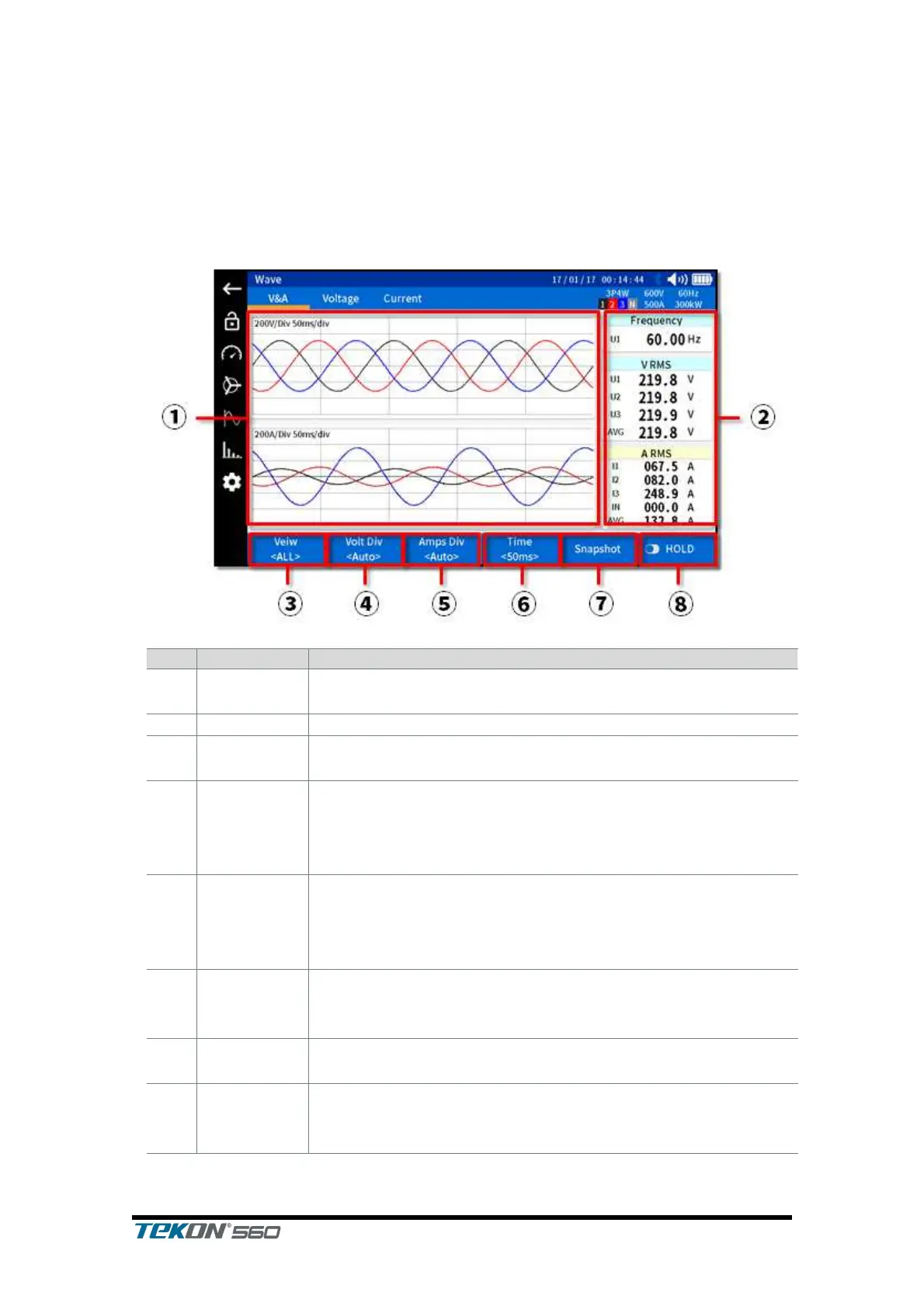

This is a screen enabled to check waveforms of voltage and current in real time.
Tap the corresponding icon on the left to enter into this screen.
No.
Name
Description
①
Waveform
Display waveform.
②
Meter
Display V/A RMS, Frequency.
③
View
Select Voltage & Current, Voltage or Current whichever
you wish to view.
④
Voltage Div
Used to set the magnification of voltage displayed; if preset
to Auto, the magnitude of Div is automatically set
depending on the value of voltage. The present Div value is
displayed on the upper left side of the diagram.
⑤
Current Div
Used to set the magnification of current displayed; if preset
to Auto, the magnitude of Div is automatically set
depending on the value of current. The present Div value
is displayed on the upper left side of the diagram.
⑥
Time Div
Used to set the magnification of time displayed
<20ms/50ms>; The present Div value is displayed on the
upper left side of the diagram.
⑦
Snapshot
Used to save the currently displayed image to SD card in
bmp file
⑧
Hold
Used to ‘hold’ the currently displayed measurement value;
press once more to release Hold in which case it is
updated to the latest measurement value.
