User’s Manual

3.7. Harmonics functions of Power Analyzer

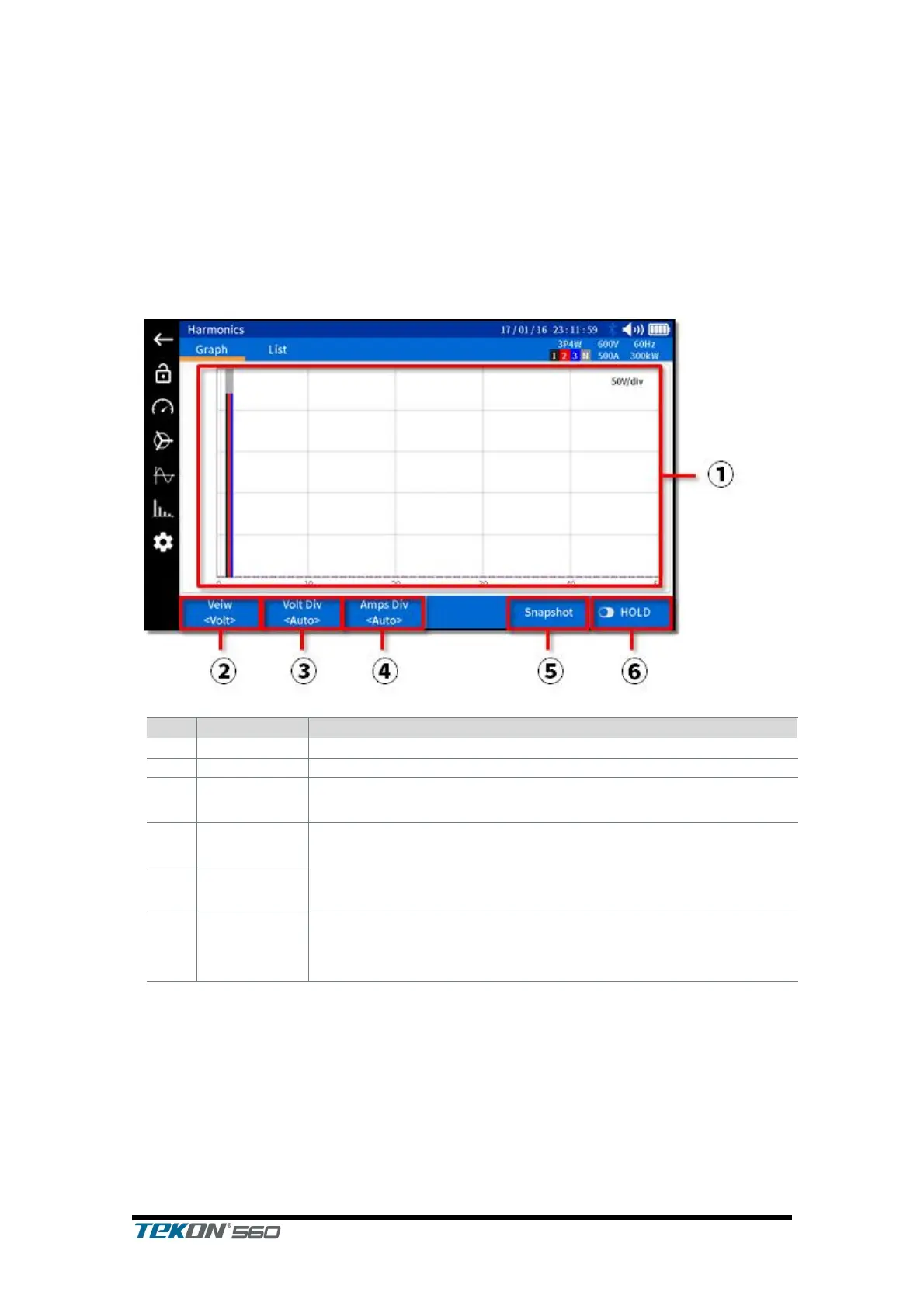

3.7.1. Function of Power Analyzer that displays harmonic data in graphs

This is a screen enabled to check harmonic data of voltage and current as bar

graphs.

Tap the corresponding icon on the left to enter into this screen.

Select Graphs on the upper tab.

No.

Name

Description

①

Graph

Harmonics graph.

②

Type

Select Harmonic or Interharmonic.

③

Phase

Select phase.

<All, L1, L2, L3>

④

Voltage

/ Current

Select voltage and/or current.

⑤

Snapshot

Used to save the currently displayed image to SD card in

bmp file

⑥

Hold

Used to ‘hold’ the currently displayed measurement value;

press once more to release Hold in which case it is

updated to the latest measurement value.
