Tektronix 2205 Operator's Manual

Performance Characteristics

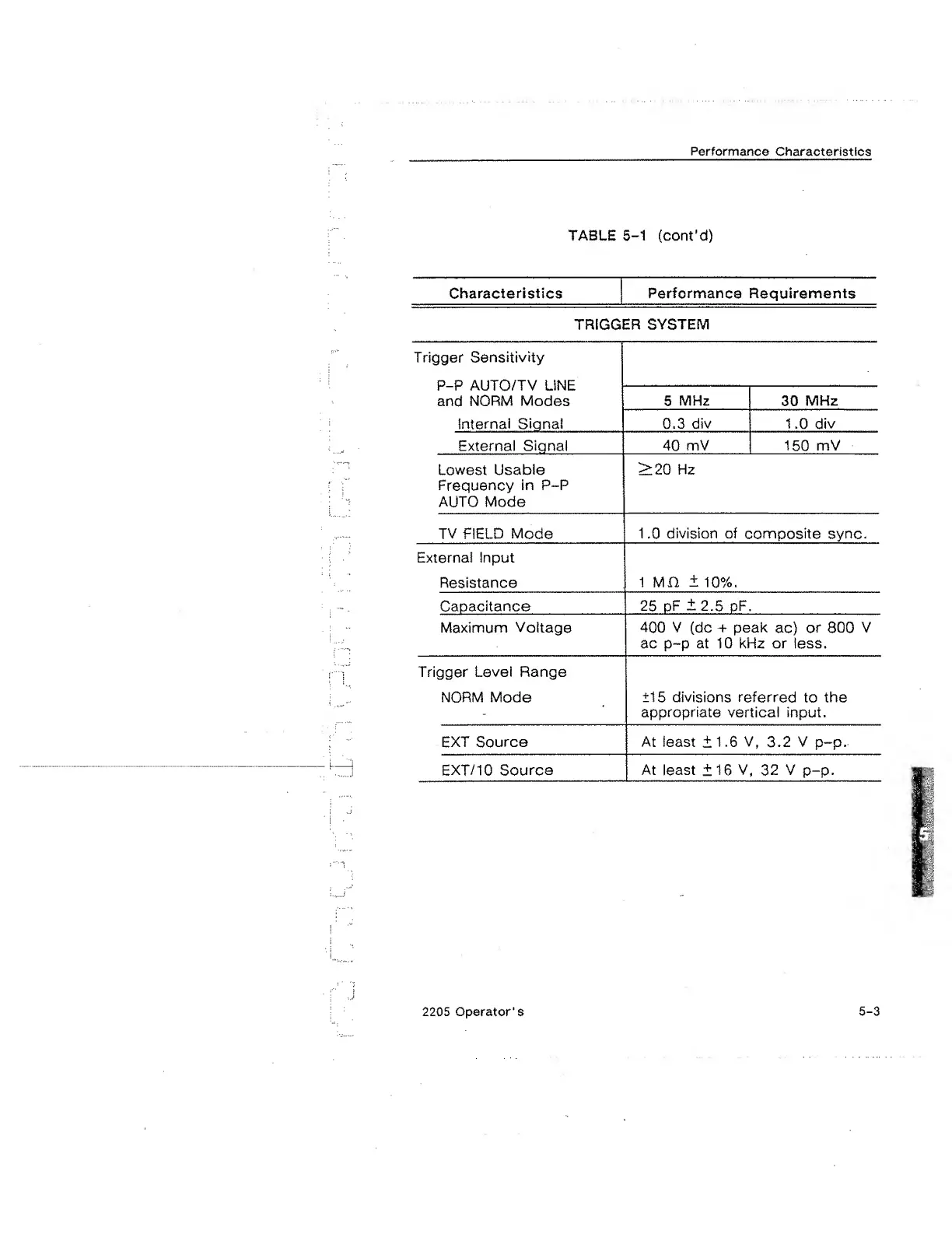

TABLE 5-1 (cont’d)
Characteristics Performance Requirements
TRIGGER SYSTEM
Trigger Sensitivity
P-P AUTO/TV LINE
and NORM Modes
internal Signal
5 MHz 1 30 MHz
0.3 div
1.0 div
External Signal
40 mV 150 mV
Lowest Usable
Frequency in P-P
AUTO Mode
>20 Hz
TV FIELD Mode
1.0 division of composite sync.
External Input
Resistance
1 Mn ± 10%.
Capacitance
25 pF ±2.5 pF.
Maximum Voltage
400 V (dc + peak ac) or 800 V
ac p-p at 10 kHz or less.
Trigger Level Range
NORM Mode
+15 divisions referred to the
appropriate vertical input.
EXT Source At least ±1.6 V, 3.2 V p-p.
EXT/10 Source
At least ±16 V, 32 V p-p.
2205 Operator's
5-3
