Performance Characteristics

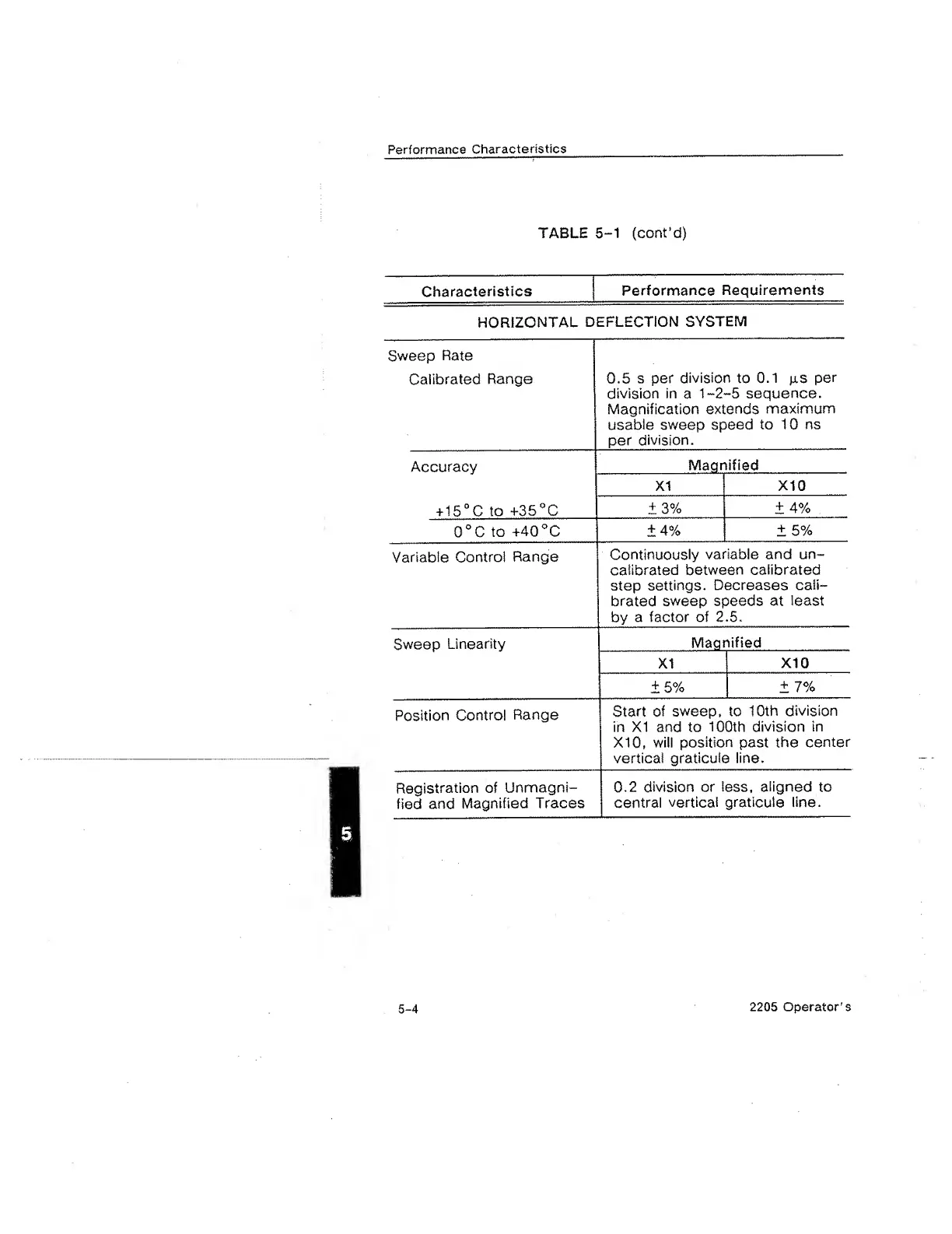

TABLE 5-1 (cont’d)
Characteristics
Performance Requirements
HORIZONTAL DEFLECTION SYSTEM
Sweep Rate
Calibrated Rang©
0.5 s per division to 0.1 )jis per
division in a 1-2-5 sequence.
Magnification extends maximum
usable sweep speed to 10 ns
per division.
Accuracy
Magnified
X1 X10
+ 15°C to +35°C
±3%
±4%
0°C to +40“"C
± 4%
± 5%
Variable Control Range
Continuously variable and un¬
calibrated between calibrated
step settings. Decreases cali¬
brated sweep speeds at least
by a factor of 2.5.
Sweep Linearity
Magnified
XI
X10
±5%
± 7%
Position Control Range
Start of sweep, to 10th division
in XI and to 100th division in
XI0, will position past the center
vertical graticule line.
Registration of Unmagni¬
fied and Magnified Traces
0.2 division or less, aligned to
centra! vertical graticule line.
5-4
