Performance Characteristics

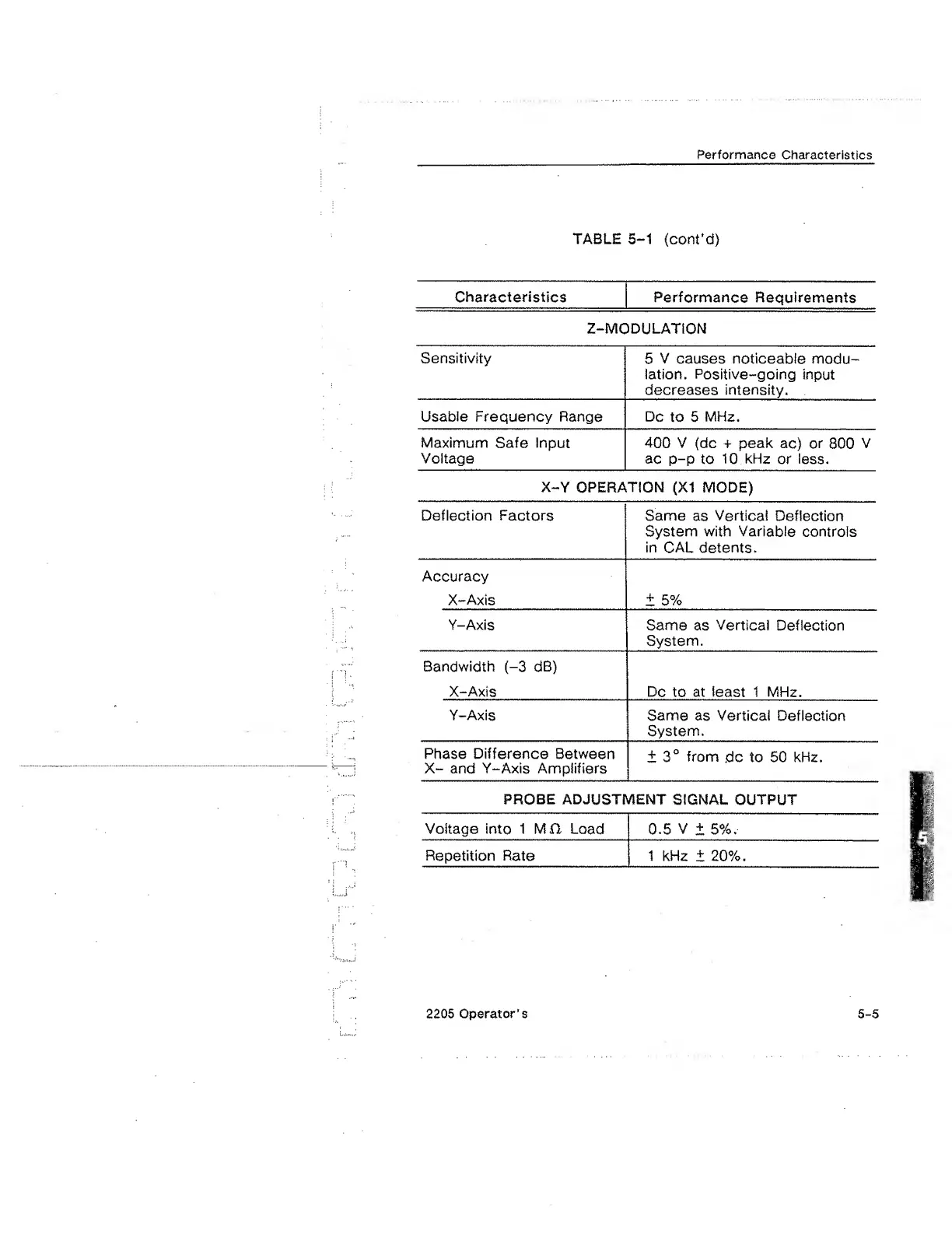

TABLE 5-1 (cont’d)
Characteristics
Performance Requirements
Z-MODULATION
Sensitivity
5 V causes noticeable modu¬
lation. Positive-going input
decreases intensity.
Usable Frequency Range DC to 5 MHz.
Maximum Safe Input
400 V (dc -f peak ac) or 800 V
Voltage
ac p-p to 10 kHz or less.
X-Y OPERATION (XI MODE)
Deflection Factors
Same as Vertical Deflection
System with Variable controls
in CAL detents.
Accuracy
X-Axis
± 5%
Y-Axis Same as Vertical Deflection
System.
Bandwidth (-3 dB)
X-Axis Dc to at least 1 MHz.
Y-Axis Same as Vertical Deflection
System.
Phase Difference Between
X- and Y-Axis Amplifiers
±3° from do to 50 kHz.
PROBE ADJUSTMENT SIGNAL OUTPUT
Voltage into 1 Mil Load | 0.5 V ± 5%.
Repetition Rate
1 kHz + 20%.
2205 Operator’s 5-5
