Tektronix 2205 Operator's Manual

Performance Characteristics

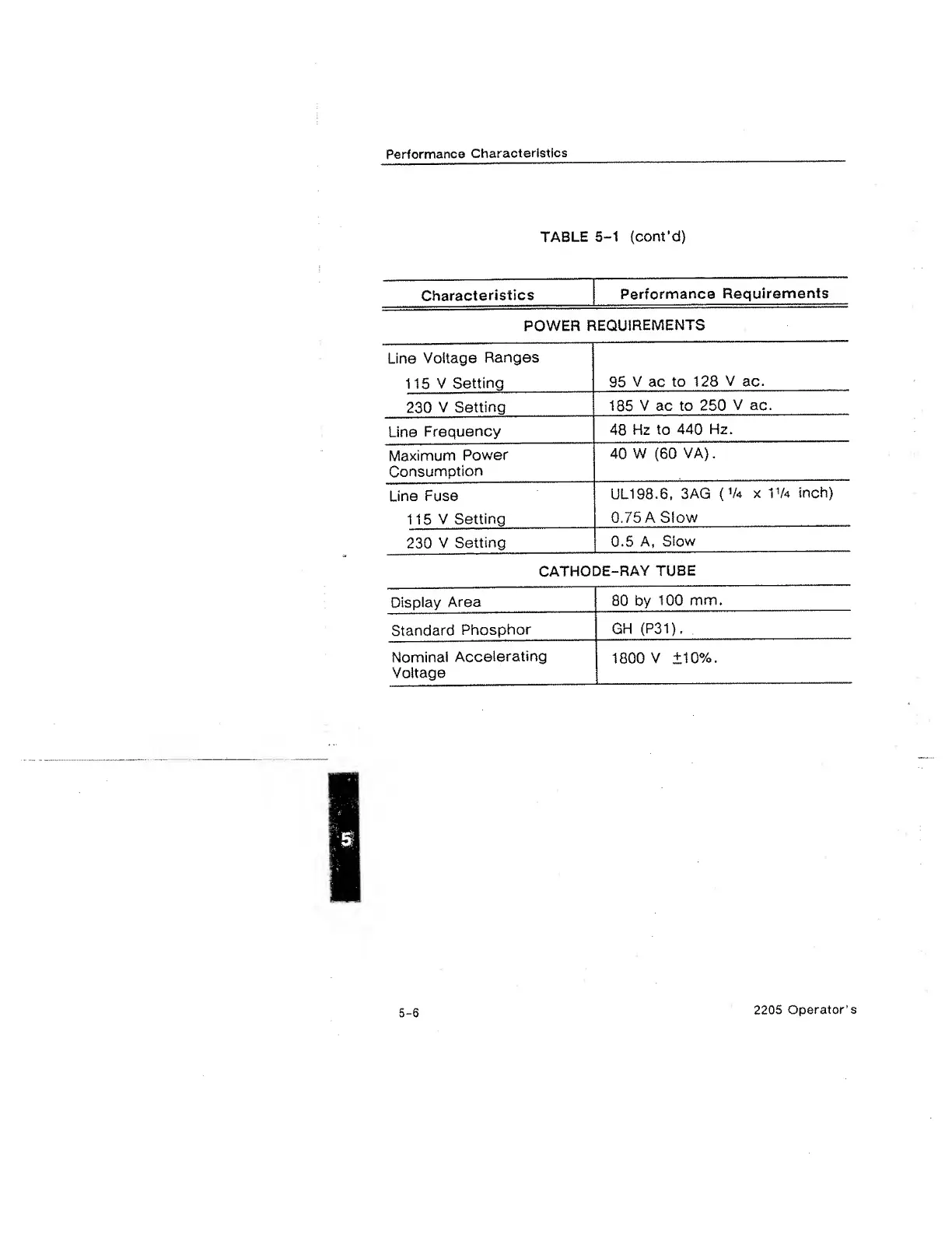

TABLE 5-1 (cont’d)
Characteristics
Performance Requirements
POWER REQUIREMENTS
Lin© Voltage Ranges
115 V Setting
95 V ac to 128 V ac.
230 V Setting
185 V ac to 250 V ac.
Line Frequency
48 Hz to 440 Hz.
Maximum Power
Consumption
40 W (60 VA).
Line Fuse
115 V Setting
UL198.6. 3AG {V4 x IV 4 inch)
0.75 A Slow
230 V Setting
0.5 A, Siow
CATHODE-RAY TUBE
Display Area
80 by 100 mm.
Standard Phosphor
GH (P31).
Nominal Accelerating
1800 V ±10%.
Voltage
5-6
2205 Operator’s

Tektronix 2205 Specifications

General

Brand	Tektronix
Model	2205
Category	Test Equipment
Language	English
