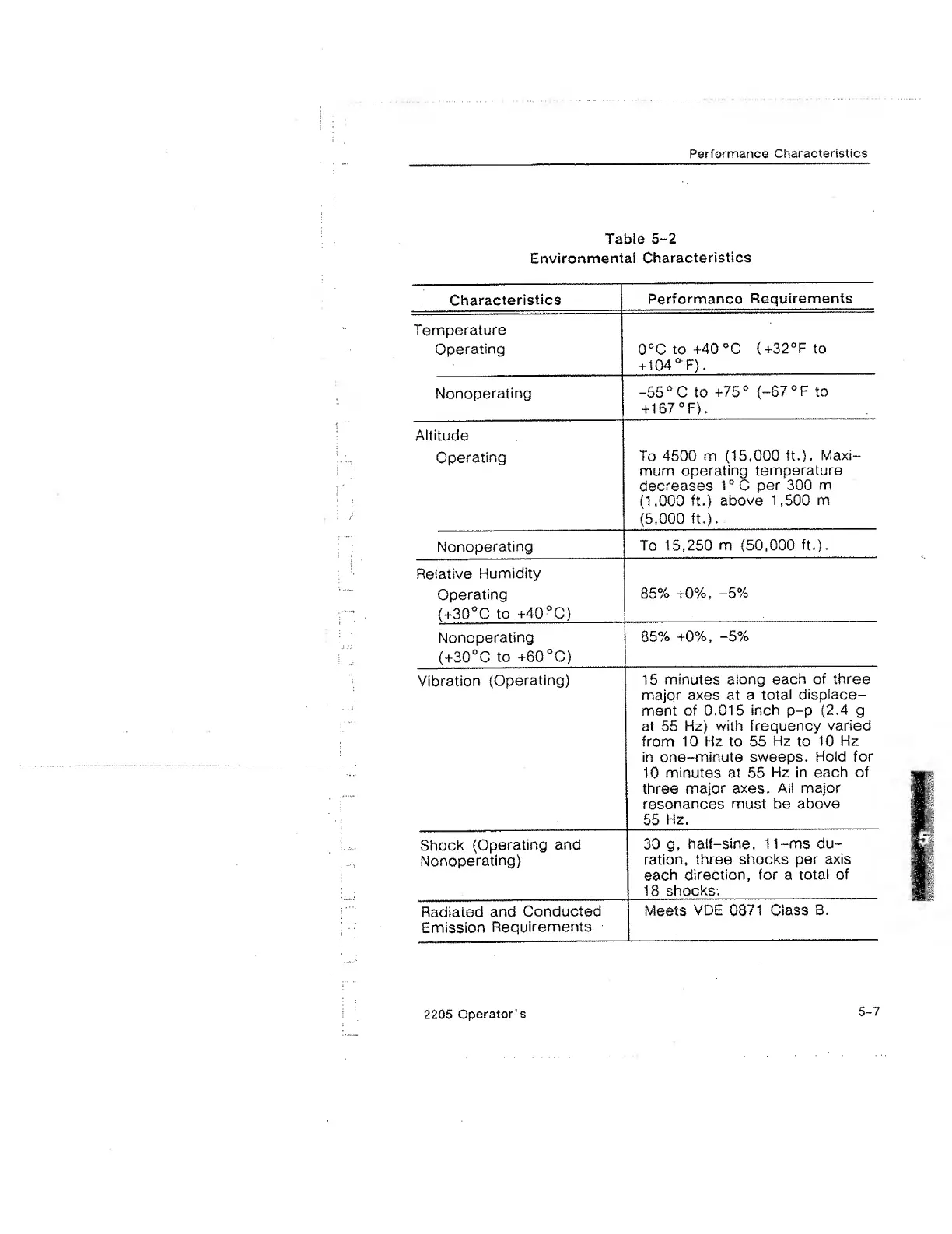

Performance Characteristics
Table 5-2
Environmental Characteristics
Characteristics
Performance Requirements
Temperature
Operating
0“Cto+40°C (+32°Fto
+104 ° F).
Nonoperating
-55 “C to +75(-67-"F to
+167°F).
Altitude
Operating
To 4500 m (15,000 ft.). Maxi¬
mum operating temperature
decreases 1°C per 300 m
(1,000 ft.) above 1,500 m
(5,000 ft.).
Nonoperating
To 15,250 m (50,000 ft.).
Relative Humidity
Operating
(+30°C to +40“C)
85% +0%, -5%
Nonoperating
(+30°C to +60°C)
85% +0%, -5%
Vibration (Operating)
15 minutes along each of three
major axes at a total displace¬
ment of 0.015 inch p-p (2.4 g
at 55 Hz) with frequency varied
from 10 Hz to 55 Hz to 10 Hz
in one-minute sweeps. Hold for
10 minutes at 55 Hz in each of
three major axes. All major
resonances must be above
55 Hz.
Shock (Operating and
Nonoperating)
30 g, half-sine, 11-ms du¬
ration, three shocks per axis
each direction, for a total of
18 shocks.
Radiated and Conducted
Emission Requirements
Meets VDE 0871 Class B.
