Performance Characteristics
Table 5-3
Mechanical Characteristics
Characteristics
Performance Requirements
Weight With Power Cord
8.25 kg {13.7 lbs) or less.
Domestic Shipping Weight
9.1 kg (20.0 lbs) or less.
Height
138 mm (5.4 in).
Width
With Handle
379mm (14.9in).
Without Handle
327 mm (12.9 in).
Depth
Without Front Cover
441 mm (17.4 in ).
With Optional Front
Cover
455 mm (17.9 in ).
With Handle
Extended
516mm (20.3in).

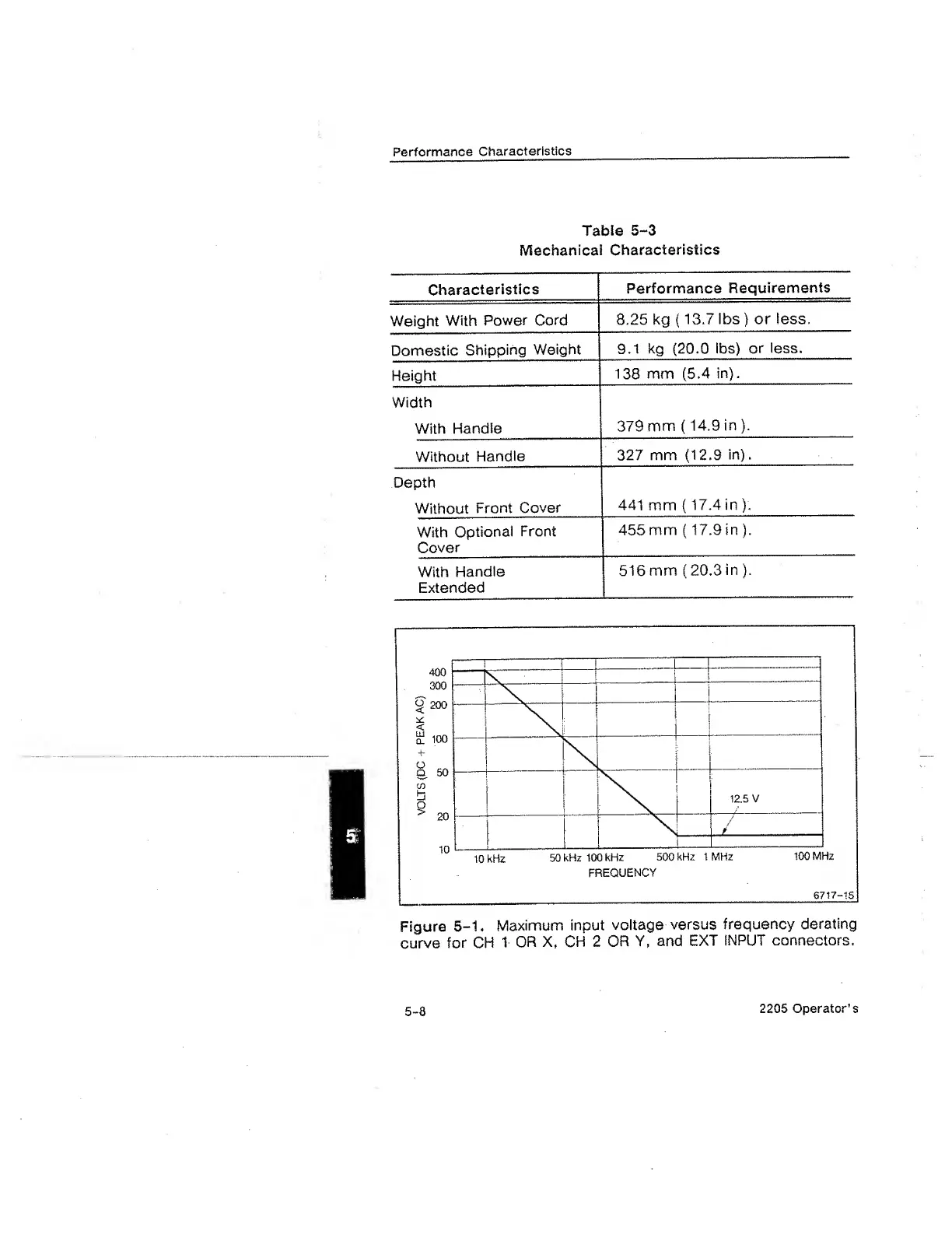

Figure 5-1. Maximum input voltage versus frequency derating
curve for CH 1 OR X, CH 2 OR Y, and EXT INPUT connectors.
