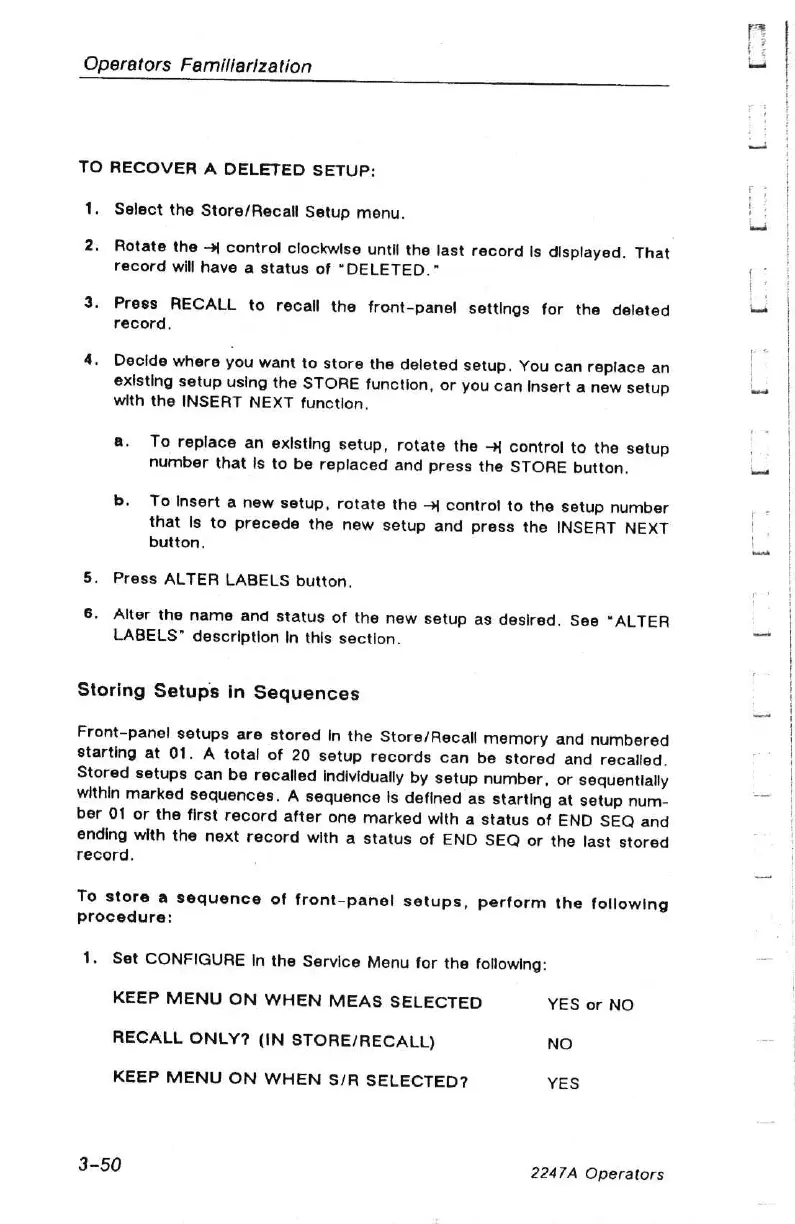

Tektronix 2247A

Operators Familiarization
TO
RECOVER
A
DELETED
SETUP:
1,
Select
the
Store/Recall
Setup
menu.
2.
Rotate
the
-4
control
clockwise
until
the
last
record
Is
displayed.
That
record
will
have
a
status
of
“DELETED.”
Press
RECALL
to
recall
the
front-panel
settings
for
the
deleted
record.
Decide
where
you
want
to
store
the
deleted
setup.
You
can
replace
an
existing
setup
using
the
STORE
function,
or
you
can
Insert
a
new
setup
with
the
INSERT
NEXT
function.
a.
To
replace
an
existing
setup,
rotate
the
-{
control
to
the
setup
number
that
Is
to
be
replaced
and
press
the
STORE
button.
b.
To
Insert
a
new
setup,
rotate
the
-{
control
to
the
setup
number
that
Is
to
precede
the
new
setup
and
press
the
INSERT
NEXT
button.
Press
ALTER
LABELS
button.
Alter
the
name
and
status
of
the
new
setup
as
desired.
See
“ALTER
LABELS”
description
In
this
section.
Storing
Setups
in
Sequences
Front-panel
setups
are
stored
in
the
Store/Recall
memory
and
numbered
starting
at
01.
A
total
of
20
setup
records
can
be
stored
and
recalled.
Stored
setups
can
be
recalled
individually
by
setup
number,
or
sequentially
within
marked
sequences.
A
sequence
Is
defined
as
starting
at
setup
num-
ber
01
or
the
first
record
after
one
marked
with
a
status
of
END
SEQ
and
ending
with
the
next
record
with
a
status
of
END
SEQ
or
the
last
stored
record.
To
store
a
sequence
of
front-panel
setups,
perform
the
following
procedure:
1.
Set
CONFIGURE
In
the
Service
Menu
for
the
following:
KEEP
MENU
ON
WHEN
MEAS
SELECTED
YES
or
NO
RECALL
ONLY?
(IN
STORE/RECALL)
NO
KEEP
MENU
ON
WHEN
S/R
SELECTED?
YES
3-50
2247A Operators
