Tektronix 465 User Manual

-' .. , ·~····
·.:.
~ .·

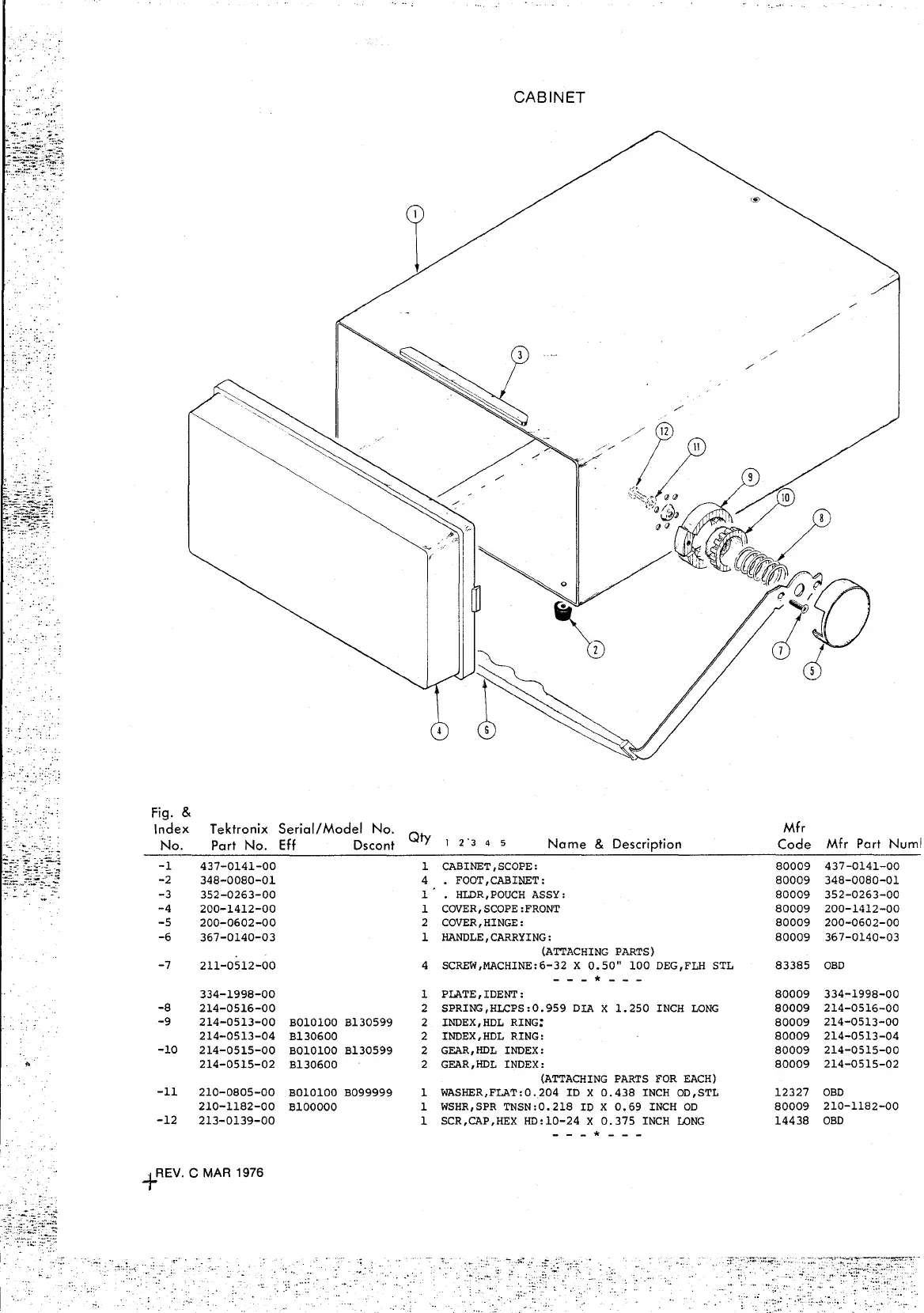

CABINET
l
Fig. &
Index
No.
Tektronix Serial/ Model No.
Part No. Eff Dscont Qty
1 2
·
3 4
s
Name & Description
-1
-2
-3
-4
-5
-6
-7
437-0141-00
348-0080-0l
352-0263-00
200-1412-00
200-0602-00
367-0140-03
211-0512-00
334-1998-00
-8 214-0516-00
-9 214-0513-00 B010100 B130599
214-0513-04 Bl30600
-10 214-0515-00 BOlOlOO B130599
214-0515-02 Bl30600
-11 210-0805-00 B010100 B099999
210-1182-00 B100000
-12 213-0139-00
+REV. C MAR 1976
. _:: .
l CABINET,SCOPE:
4 • FOOT,CABINET:
l . HLDR,POUCH ASSY:
l COVER,SCOPE:FRONT
2 COVER,HINGE:
l HANDLE,CARRYING:
(ATTACHING PARTS)
4 SCREW,MACHINE:6-32 X 0.50" 100 DEG,FLH STL
- - - * - - -
1 PLATE,IDENT:
2 SPRING,HLCPS:0.959
INDEX,HDL RING:
2
2
DIA X 1.250 INCH LONG
INDEX,HDL RING:
2 GEAR,HDL INDEX:
2 GEAR,HDL INDEX:
(ATTACHING PARTS FOR EACH)
1 WASHER,FLAT:0.204 ID X 0.438 INCH OD,STL
l WSHR,SPR TNSN:0.218 ID X 0.69 INCH OD
1 SCR,CAP,HEX HD:10-24 X 0.375 INCH LONG
- - - * - - -
/
Mfr
Code
80009
80009
80009
80009
80009
80009
83385
/
Mfr Part Numl
437-0141-00
348-0080-0l
352-0263-00
200-1412-00
200-0602-00
367-0140-03
OBD
80009 334-1998-00
80009 214-0516-00
80009 214-0513-00
80009 214-0513-04
80009 214-0515-00
80009 214-0515-02
12327 OBD
80009 210-1182-00
14438 OBD

Tektronix 465 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	5 mV/div to 5 V/div
Rise Time	3.5 ns
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Sources	CH 1, CH 2, LINE, EXT
Display	CRT
Type	Oscilloscope
Input Impedance	1 MΩ in parallel with 20 pF
Power Requirements	48-440 Hz
Maximum Input Voltage	400 V (DC + AC peak)
