Tektronix 465 User Manual

,·,,.
" , ..•. , .... ::..:J.iiO.<.Uitr1,.,1
. ' :: . ~!
·:' ~·.. .1
Jt~i~

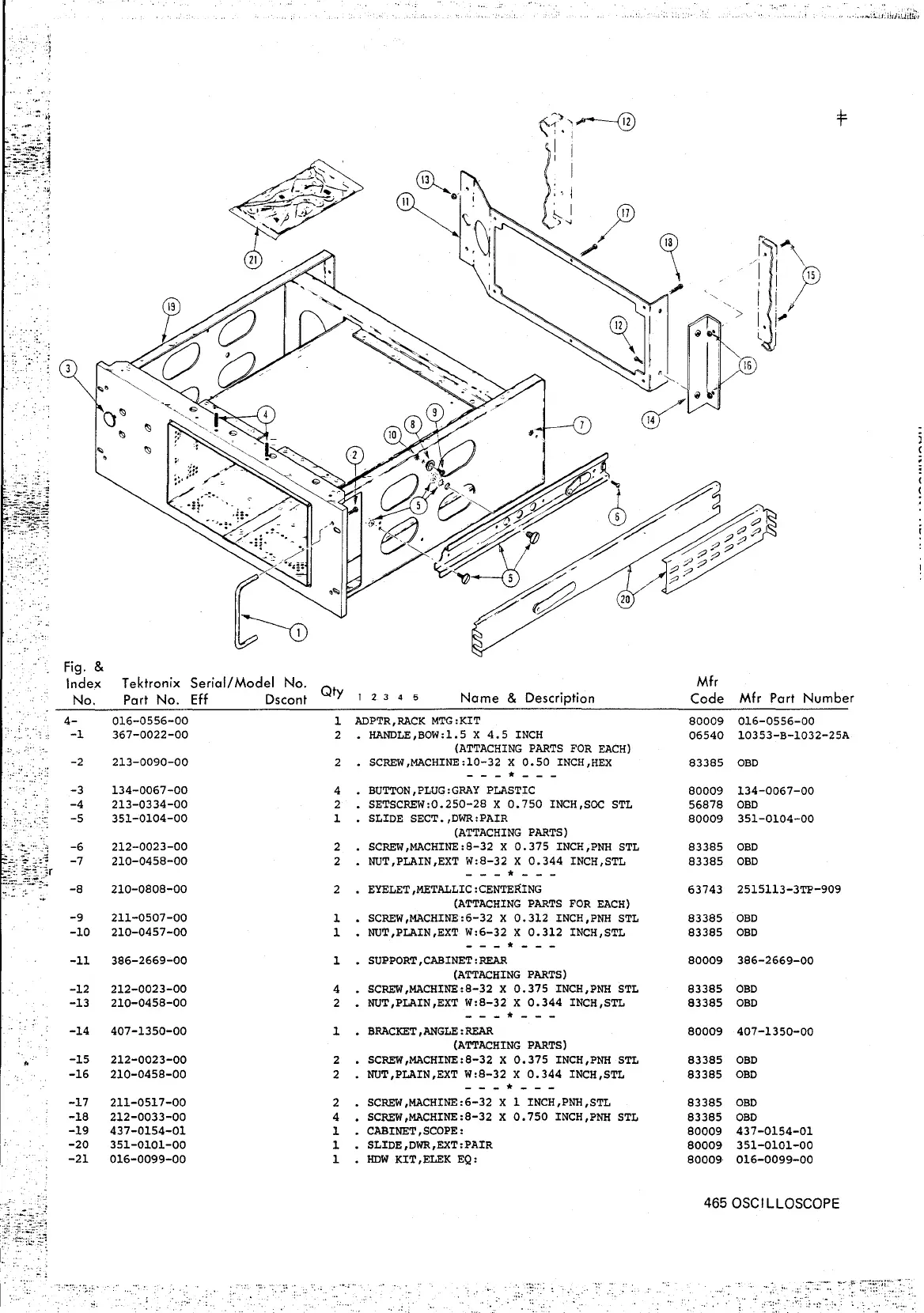

Fig. &
Index
Tektronix Serial/ Model
No.
Qty
Mfr
No.
Part No. Eff Dscont
1
2 3
4 5
Name & Description
Code
Mfr Part Number
4-
016-0556-00
1
ADPTR,RACK MTG:KIT
80009 016-0556-00
-1 367-0022-00
2
HANDLE,BOW:1.5 X 4.5 INCH
06540 10353-B-1032-25A
(ATTACHING PARTS FOR EACH)
-2
213-0090-00
2
SCREW,MACHINE:10-32 X a.so INCH,HEX
83385 OBD
:~ . ,; ·. ::,:
- - - * - - -
-3 134-0067-00
4
BUTTON,PLUG:GRAY PLASTIC
80009
134-0067-00
-4 213-0334-00 2
SETSCREW:0.250-28 X 0.750 INCH,SOC
STL 56878 OBD
-s
351-0104-00 1
SLIDE SECT.,DWR:PAIR
80009 351-0104-00
(ATTACHING PARTS)
-6 212-0023-00 2
SCREW,MACHINE:8-32 X 0.375 INCH,PNH
STL 83385 OBD
-7
210-0458-00
2
NUT,PLAIN,EXT W:8-32 X 0.344 INCH,STL
83385 OBD
- - - * - - -
-8
210-0808-00
2
EYELET,METALLIC:CENTER!NG
63743 2515113-3TP-909
(ATTACHING PARTS
FOR EACH)
-9 211-0507-00
1
SCREW,MACHINE:6-32 X 0.312 INCH,PNH STL
83385
OBD
-10
210-0457-00
1
NUT,PLAIN,EXT W:6-32 X 0.312 INCH,STL 83385 OBD
- - - * - - -
-11
386-2669-00
1
SUPPORT,CABINET:REAR
80009 386-2669-00
(ATTACHING PARTS)
-12
212-0023-00
4
SCREW,MACHINE:8-32 X 0.375 INCH,PNH STL 83385 OBD
-13 210-0458-00 2
NUT,PLAIN,EXT W:8-32 X 0.344 INCH,STL
83385
OBD
- - - * - - -
-14 407-1350-00
l
BRACKET,ANGLE:REAR
80009 407-1350-00
(ATTACHING PARTS)
A
.·
-15 212-0023-00
2
SCREW,MACHINE:8-32 X 0.375 INCH,PNH STL
83385 OBD
-16 210-0458-00
2
NUT,PLAIN,EXT W:8-32 X 0.344 INCH,STL
83385
OBD
- - - * - - -
-17 211-0517-00
2
SCREW,MACHINE:6-32 X l INCH,PNH,STL
83385
OBD
-18 212-0033-00
4
SCREW,MACHINE:8-32 X
0.750 INCH,PNH STL
83385 OBD
-19 437-0154-01
1
CABINET,SCOPE:
80009 437-0154-01
-20 351-0101-00
1
SLIDE,DWR,EXT:PAIR
80009 351-0101-00
-21
016-0099-00 1
HDW KIT,ELEK EQ:
80009 016-0099-00
465 OSCILLOSCOPE
··.: ... ;.·

Tektronix 465 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	5 mV/div to 5 V/div
Rise Time	3.5 ns
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Sources	CH 1, CH 2, LINE, EXT
Display	CRT
Type	Oscilloscope
Input Impedance	1 MΩ in parallel with 20 pF
Power Requirements	48-440 Hz
Maximum Input Voltage	400 V (DC + AC peak)
